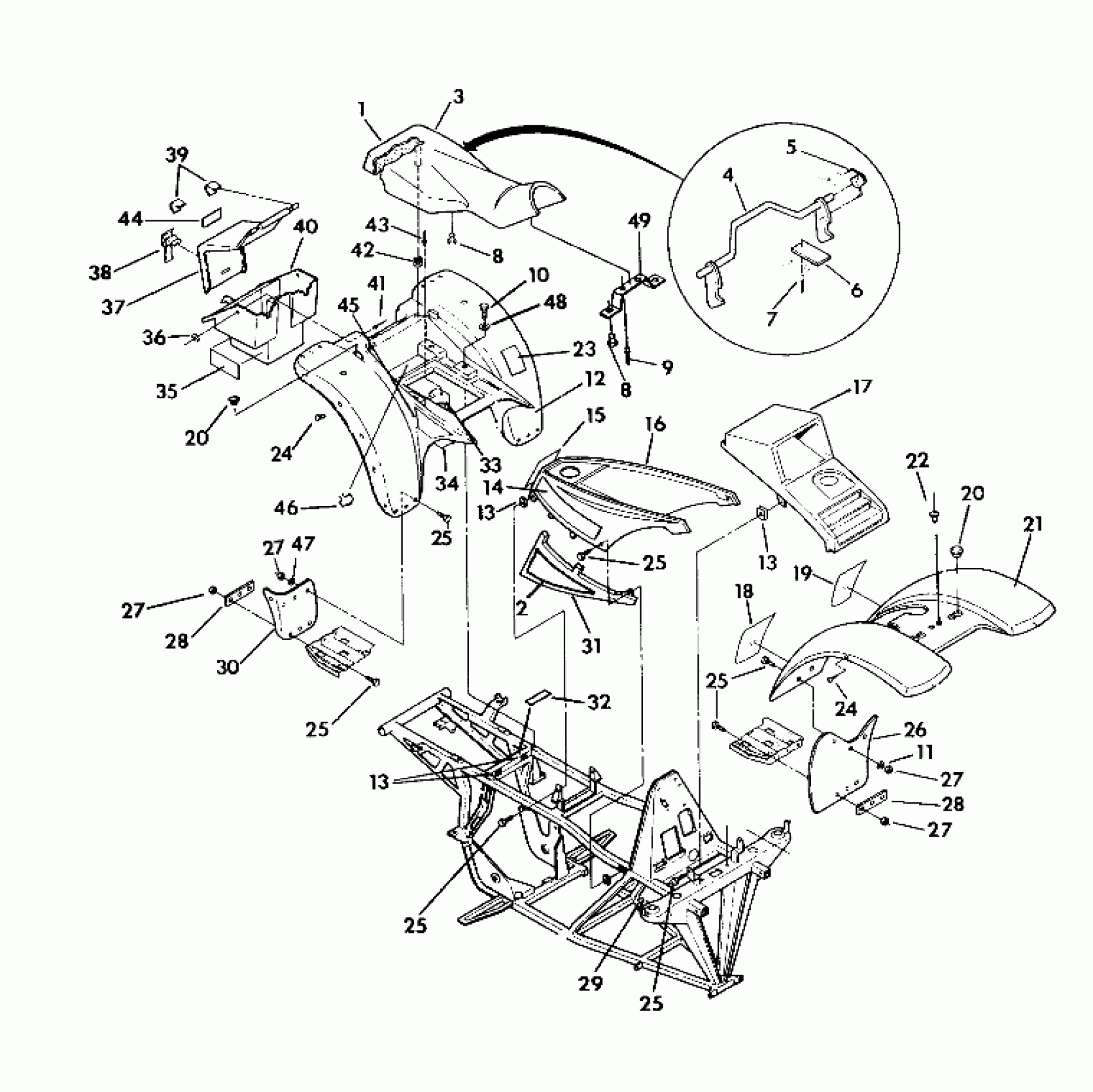

Polaris TRAIL BLAZER - W927221 BODY ASSEMBLY Trail Blazer / W927221 (4922852285001A) Diagram

#

Description
Price

1

SEAT ASM,(ATV) Substituted by 2681724-157

2681512

Unavailable

2

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

3

COVER,SEAT,(BLUE) Substituted by 2681723-157

2681513

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$29.25

7

BLIND RIVET(50)

7621403

$1.49

8

Bumper, Rubber

5410414

$3.19

8

Bumper, Rubber

5410414

$3.19

9

RIVET

7621481

Unavailable

10

BOLT(10)

7512232

$1.49

11

WASHER(10)

7558301

$1.49

12

CAB,REAR,WHITE (Fender)

5430991-133

Unavailable

13

NUT, SPEED(10)

7670060

$3.99

13

NUT, SPEED(10)

7670060

$3.99

13

NUT, SPEED(10)

7670060

$3.99

14

DECAL, TRAIL BLAZER

7073445

Unavailable

15

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

16

COVER,FUELTANK,BON.BLUE

5431197-157

Unavailable

17

COVER,OIL-H/L,BON.BLUE

5430973-157

$64.29

18

DECAL(CPSC),WARNING DISC

7073147

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

PLUG, RACK HOLE

5430887

$2.99

20

PLUG, RACK HOLE

5430887

$2.99

21

CAB,FRT,BR.WHITE Substituted by 2631549-133

5430990-133

Unavailable

22

RIVET(50)

7621457

$1.49

23

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

24

CLIP, PUSH-ON(10)

7670052

$1.99

24

CLIP, PUSH-ON(10)

7670052

$1.99

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

25

BOLT, BLACK(10)

7512282

$1.49

26

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.59

26

MUDFLAP,FRT,RH,BLK.

5850083-070

$7.14

27

NUT-LOCK(10)

7542122

$1.49

27

NUT-LOCK(10)

7542122

$1.49

27

NUT-LOCK(10)

7542122

$1.49

27

NUT-LOCK(10)

7542122

$1.49

28

BRKT, LH MUD FLAP

5211131-067

Unavailable

28

BRKT, LH MUD FLAP

5211131-067

Unavailable

29

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

30

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

30

MUDFLAP,RH,LOW REAR

5850077

$23.65

31

COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157

5430970-157

Unavailable

31

COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157

5430971-157

Unavailable

32

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

33

BRKT,R.HOLDDOWN

5220880

Unavailable

34

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

35

TAPE, FOIL

5810310

Unavailable

36

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

37

LID,TOOLBOX,(WHITE)

5430769-133

$98.79

38

STRAP,TOOL COMPARTMENT

5410425

Unavailable

39

CLIP, LID HINGE(10)

7670050

Unavailable

40

BOX,TOOL COMP.

5430882

Unavailable

41

RIVET(50)

7621462

$1.49

42

GROMMET

5410413

Unavailable

43

RIVET,3/16X.402(50)

7621432

$1.49

44

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

45

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

46

RETAINER,TOOL POUCH

7080385

Unavailable

47

WASHER, FLAT(10)

7555859

$1.49

48

WASHER,WROUGHT(10)

7558302

$1.59

49

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable
