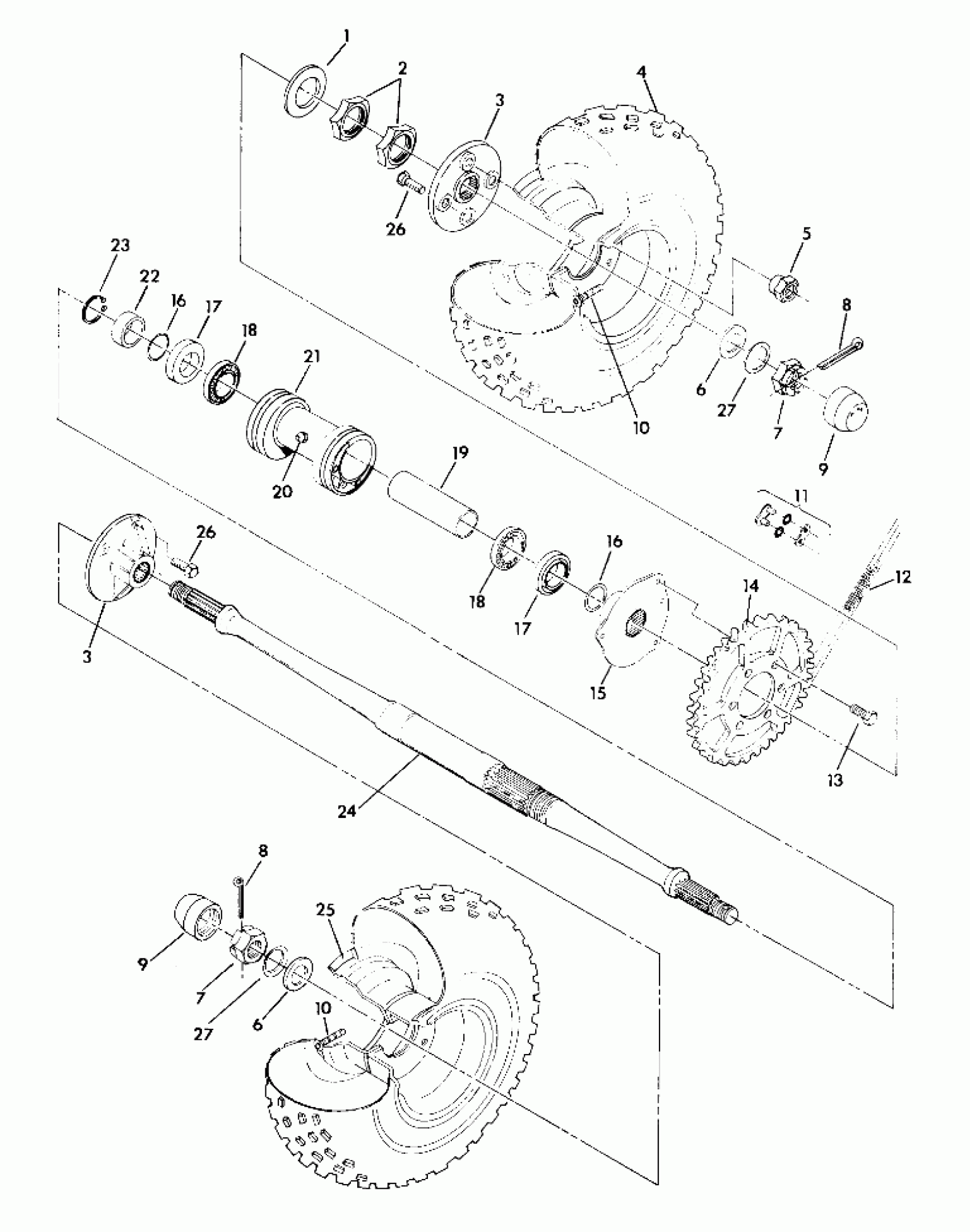

Polaris TRAIL BLAZER - W917221 REAR WHEEL DRIVE ASSEMBLY TRAIL BLAZER (4919761976017A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

4

TIRE,REAR

5410465

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

$7.19

6

WASHER(10)

7555745

$7.19

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.79

8

PIN, COTTER(10)

7661404

$4.79

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

10

VALVE-RIM

1525017

$5.59

10

VALVE-RIM

1525017

$5.59

11

CONNECTOR LINK

3225024

$19.99

12

CHAIN, DRIVE, 84P Substituted by 3224056-084 (Includes Connector)

3224047

Unavailable

13

BOLT(10)

7515488

Unavailable

14

SPROCKET, 34T Substituted by 3222068

3222050

$109.99

15

HUB, SPROCKET Substituted by 1520170

5630320

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR

5020504

$239.99

25

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

1520128

Unavailable

26

BOLT, WHEEL(10)

7512673

$3.19

26

BOLT, WHEEL(10)

7512673

$3.19

27

WASHER, CONE(10)

7555796

$7.99

27

WASHER, CONE(10)

7555796

$7.99
