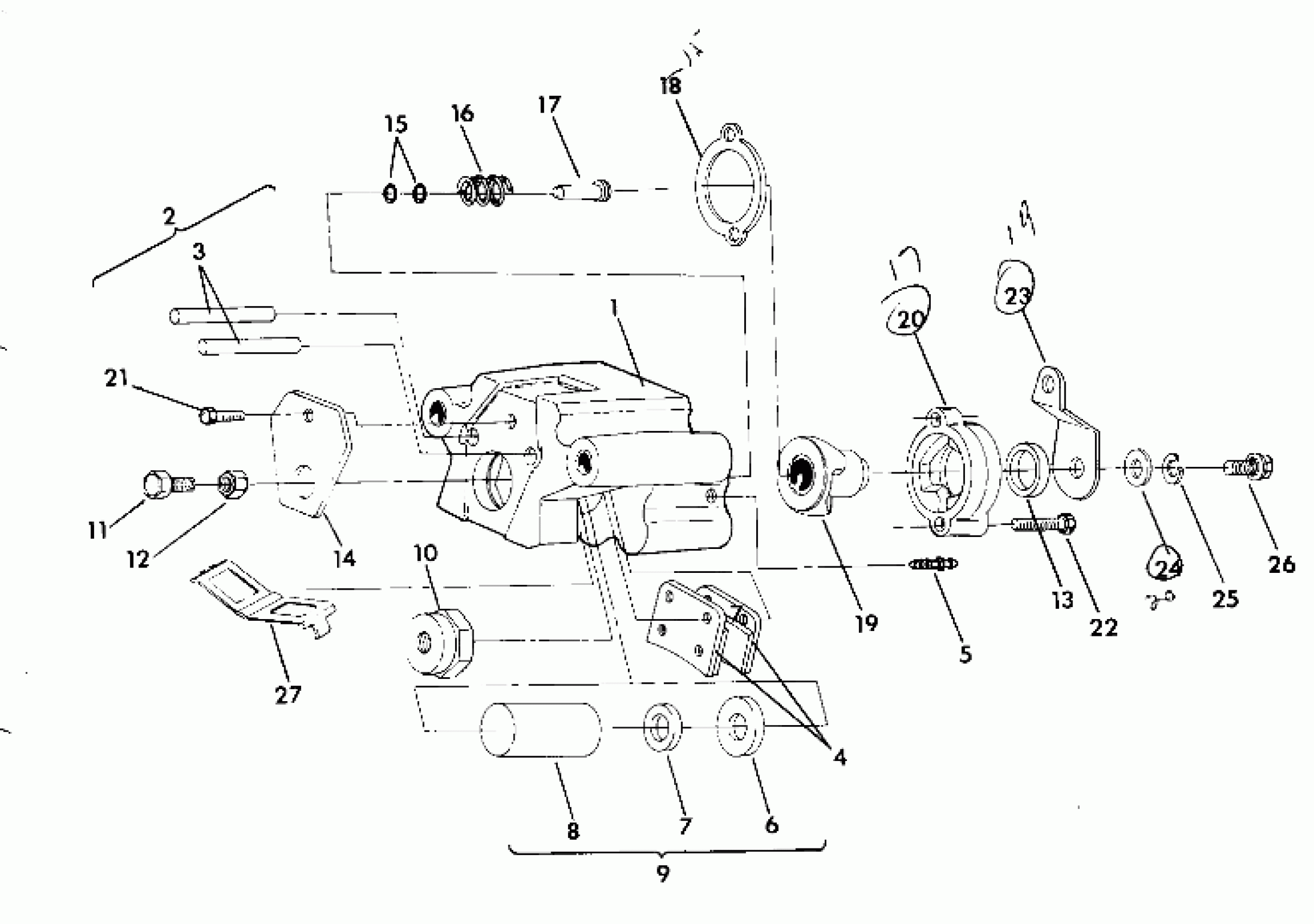

Polaris TRAIL BLAZER - W917221 REAR BRAKE ASSEMBLY TRAIL BLAZER (4919761976030A) Diagram

#

Description
Price

-

CALIPER ASM,R.BRAKE Substituted by 1910073 (Compl.)

1910046

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3,4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

4

PAD ASM. Substituted by 2200464

1910032

$31.75

5

SCREW,BLEEDER

7080352

$3.19

6

RING,SQUARE,(.120)

5410518

$7.19

7

RING, SQUARE

5410519

Unavailable

8

PISTON, BRAKE

5020521

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl. 6-8,12,14,15)

1930666

Unavailable

10

SCREW, SEMS(10)

7512020

$2.39

11

PLATE, PIN

5211143

Unavailable

12

O RING-.364X.504X.07

5410542

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

PIN, BRAKE ADJUSTER

5020523

Unavailable

15

GASKET, BRAKE

5830009

$9.99

15

GASKET, BRAKE

5830009

$9.99

16

RAMP,MOVE.BRAKE Substituted by 2200391

5630366

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.79

22

KNOB,BRAKE ADJUSTOR

1930691

Unavailable
