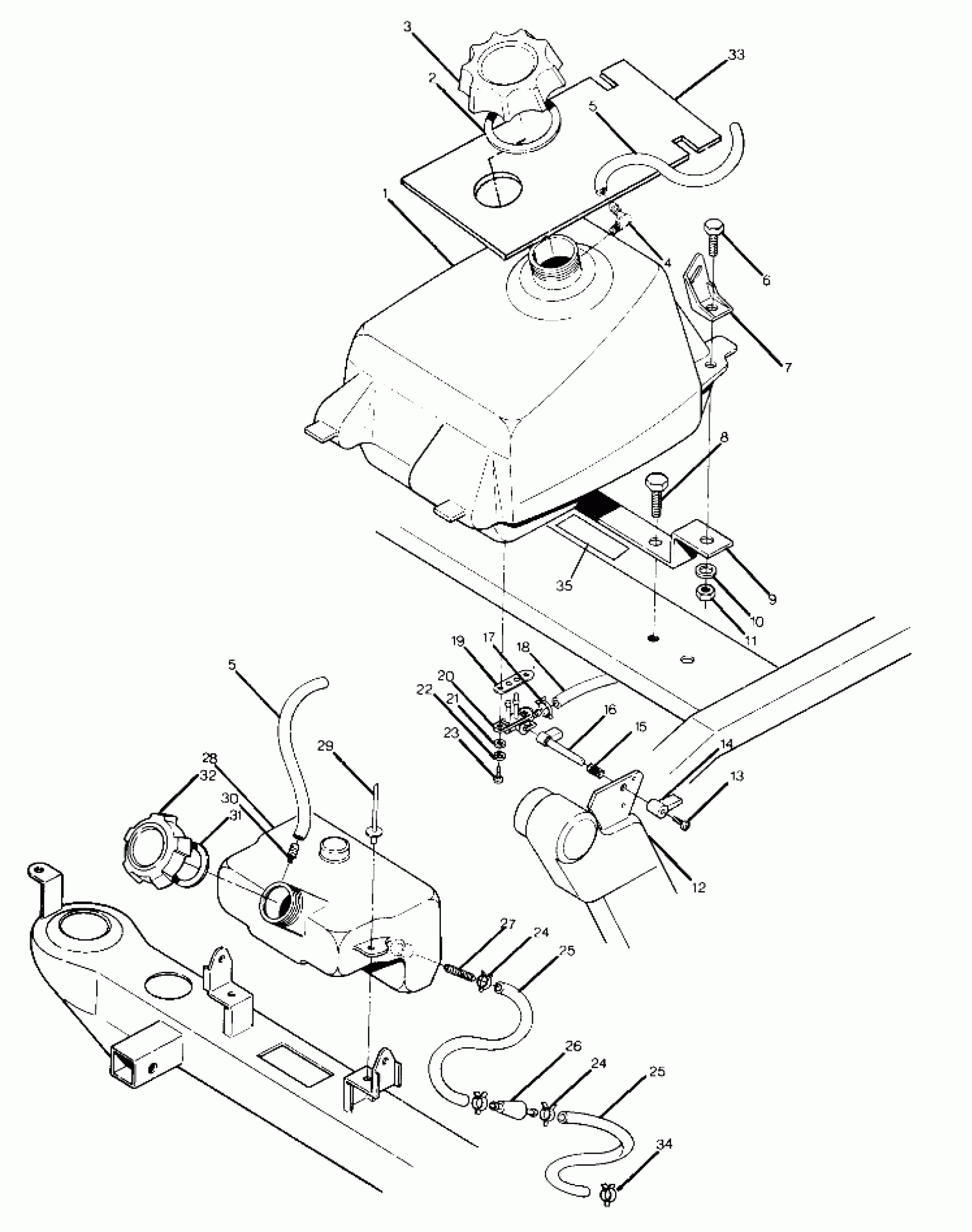

Polaris TRAIL BLAZER - W917221 FUEL TANK ASSEMBLY TRAIL BLAZER (4919761976009A) Diagram

#

Description
Price

1

TANK,FUEL Substituted by 2511323

5430968

Unavailable

2

GASKET-GAS CAP

5810144

$5.59

3

CAP, GAS, (BLACK)

5430725

$24.27

4

Vent, Tank

5431053

$19.99

5

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

5

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

6

SCREW(10)

7512310

$2.39

7

BRKT,LH FUEL MT,REAR Substituted by 5222154-067

5222154

Unavailable

7

BRKT,RH FUEL MT,REAR Substituted by 5222155-067

5222155

Unavailable

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT. Substituted by 5220916-067

5220916

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

12

DUCT,INLET DOWN TUBE

5431006

$82.39

13

SCREW,SELF-TAP(10)

7522004

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

LEVER,EXT. FUEL

5431020

Unavailable

17

CLAMP-HOSE,(10)

7080236

$1.59

18

LINE,FUEL,(6 FT.)

5521204

Unavailable

19

GASKET, FUEL VALVE

5810308

Unavailable

20

VALVE, FUEL Substituted by 7051002

7052046

Unavailable

21

WASHER(10) Substituted by 7558301

7555776

Unavailable

22

WASHER(10)

7552605

$5.27

23

BOLT, BLACK(10)

7512282

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

27

FITTING - OUTLET(10)

7052023

$24.99

28

TANK,OIL

5430969

Unavailable

29

RIVET(50)

7621457

$1.49

30

VENT-TANK

5430579

Unavailable

31

GASKET-OIL CAP

5810141

$2.39

32

CAP,OIL TANK

5430779

$14.56

33

PAD, SILENCER

5810423

Unavailable

34

CLAMP, HOSE Substituted by 7080684

7080374

Unavailable

35

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable
