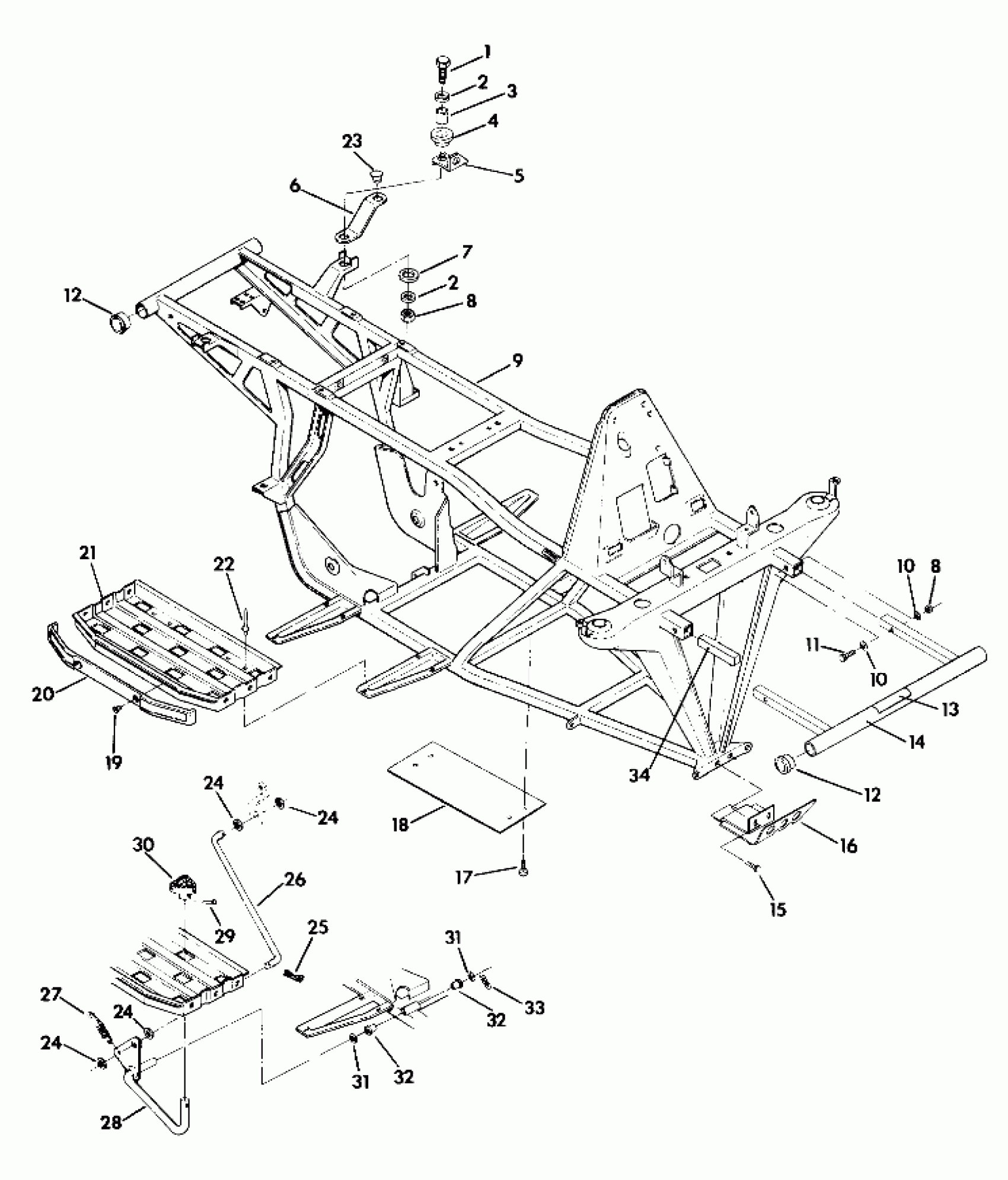

Polaris TRAIL BLAZER - W917221 FRAME ASSEMBLY with RACKS TRAIL BLAZER (4919761976003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5220899-067

5220899

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

6

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

7

WASHER, RUBBER

5410436

$1.59

8

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

FRAME, SQUARE,(ATV) [No Longer Available]

1040270-067

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

BOLT(10)

7512329

$3.99

12

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

12

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

13

DECAL,FR.SUSPENSION [No Longer Available]

7072699

Unavailable

14

BUMPER, FRONT

2670124-067

$34.92

15

SCREW(10)

7512399

$5.59

16

BRKT,LOW,F.BUMPER Substituted by 2670126-067

2670126

Unavailable

17

BOLT(10)

7512232

$1.49

18

GUARD, ROCK Substituted by 5211257-067

5211257

Unavailable

19

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

20

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

21

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

22

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

23

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

24

WASHER Substituted by 7555827

BBC0173

Unavailable

24

WASHER Substituted by 7555827

BBC0173

Unavailable

24

WASHER Substituted by 7555827

BBC0173

Unavailable

24

WASHER Substituted by 7555827

BBC0173

Unavailable

25

PIN, COTTER(10)

7661103

$4.99

26

ROD,BRAKE LINKAGE

5224386

Unavailable

27

SPRING, BRAKE

7041223

Unavailable

28

ARM, BRAKE PAD Substituted by 1910045-067

1910045

Unavailable

29

PIN, SPIRAL(10)

7661416

Unavailable

30

PEDAL, FOOT Substituted by 5130715-067

5130715

Unavailable

31

WASHER THRUST(10)

7558702

$1.59

31

WASHER THRUST(10)

7558702

$1.59

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

COTTER PIN(10)

7661401

$1.49

34

PLUG, FRAME (Foam)

5810467

Unavailable
