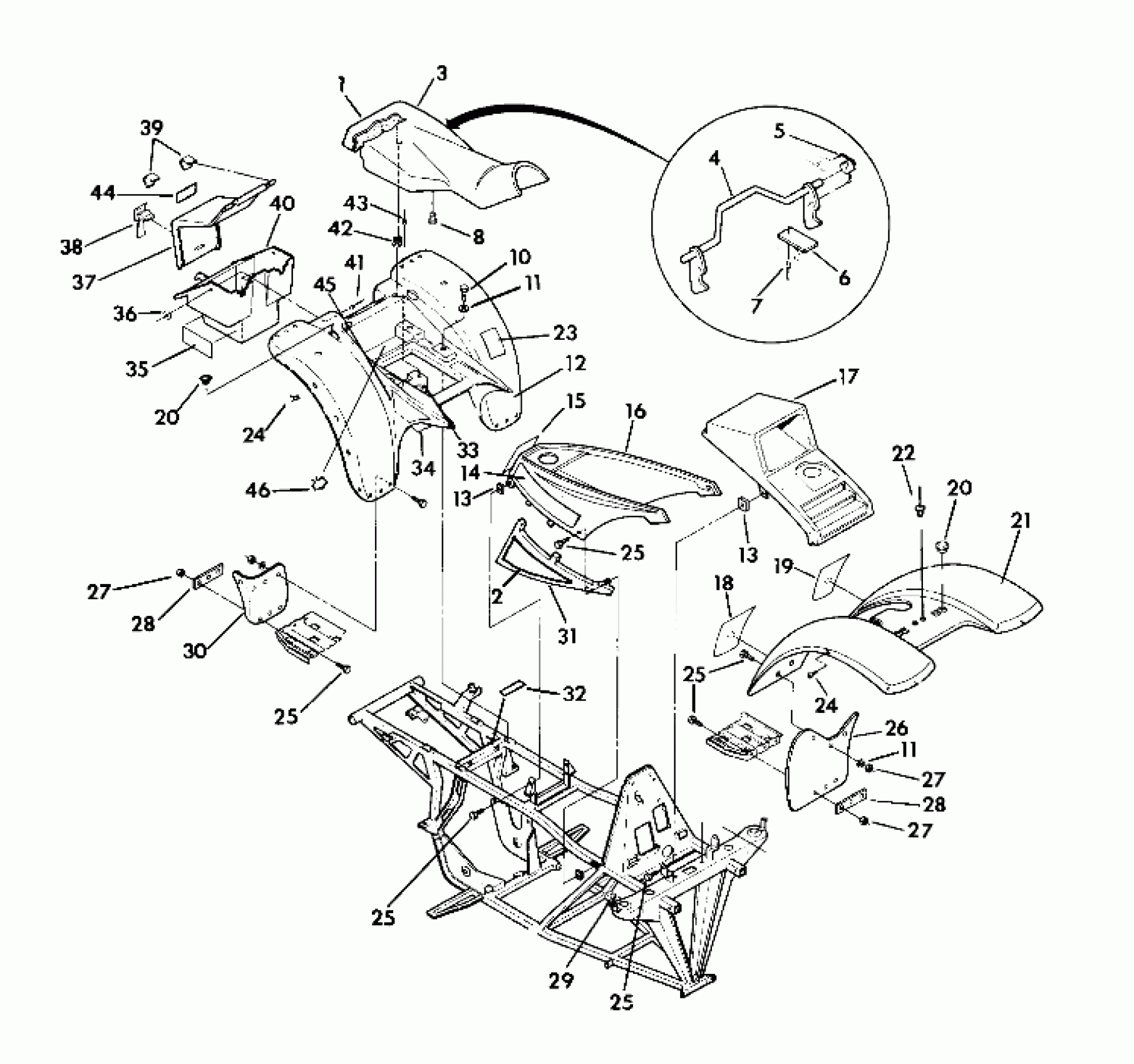

Polaris TRAIL BLAZER - W917221 BODY ASSEMBLY TRAIL BLAZER (4919761976001A) Diagram

#

Description
Price

1

SEAT ASM,(ATV) Substituted by 2681724-136

2681520

Unavailable

2

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

3

COVER,SEAT,(P.RED) Substituted by 2681723-136

2681521

Unavailable

4

LATCH,SEAT

1011558

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB,REAR (Fender)

5430991-152

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL,'TRL.BLAZER'

7073084

Unavailable

15

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

16

COVER,FUELTANK(P.RED)

5431197-136

Unavailable

17

COVER,H/L.(TAN)

5430973-152

$67.46

18

DECAL(CPSC),WARNING DISC

7073147

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

PLUG, RACK HOLE

5430887

Unavailable

20

PLUG, RACK HOLE

5430887

Unavailable

21

CAB, FRT. Substituted by 2631549-152

5430990-152

Unavailable

22

RIVET(50)

7621457

$1.19

23

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

24

CLIP, PUSH-ON(10)

7670052

$1.98

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

26

MUDFLAP, LH FRONT Substituted by 5850082-070

5850082

$11.51

26

MUDFLAP, RH FRONT Substituted by 5850083-070

5850083

Unavailable

27

NUT-LOCK(10)

7542122

$1.19

27

NUT-LOCK(10)

7542122

$1.19

27

NUT-LOCK(10)

7542122

$1.19

28

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

28

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

29

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

30

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

30

MUDFLAP,RH,LOW REAR

5850077

$23.65

31

COVER,,LH(P.RED)SIDE Substituted by 5433382-136

5430970-136

Unavailable

31

COVER,RH(P.RED)SIDE Substituted by 5433579-136

5430971-136

Unavailable

32

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

33

BRKT,R.HOLDDOWN

5220880

Unavailable

34

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

35

TAPE, FOIL

5810310

Unavailable

36

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

37

LID,TOOLBOX,(SAND)

5430769-152

Unavailable

38

STRAP,TOOL COMPARTMENT

5410425

Unavailable

39

CLIP, LID HINGE(10)

7670050

Unavailable

40

BOX,TOOL COMP.

5430882

Unavailable

41

RIVET(50)

7621462

$1.19

42

GROMMET

5410413

Unavailable

43

RIVET,3/16X.402(50)

7621432

$1.19

44

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

45

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

46

RETAINER,TOOL POUCH

7080385

Unavailable
