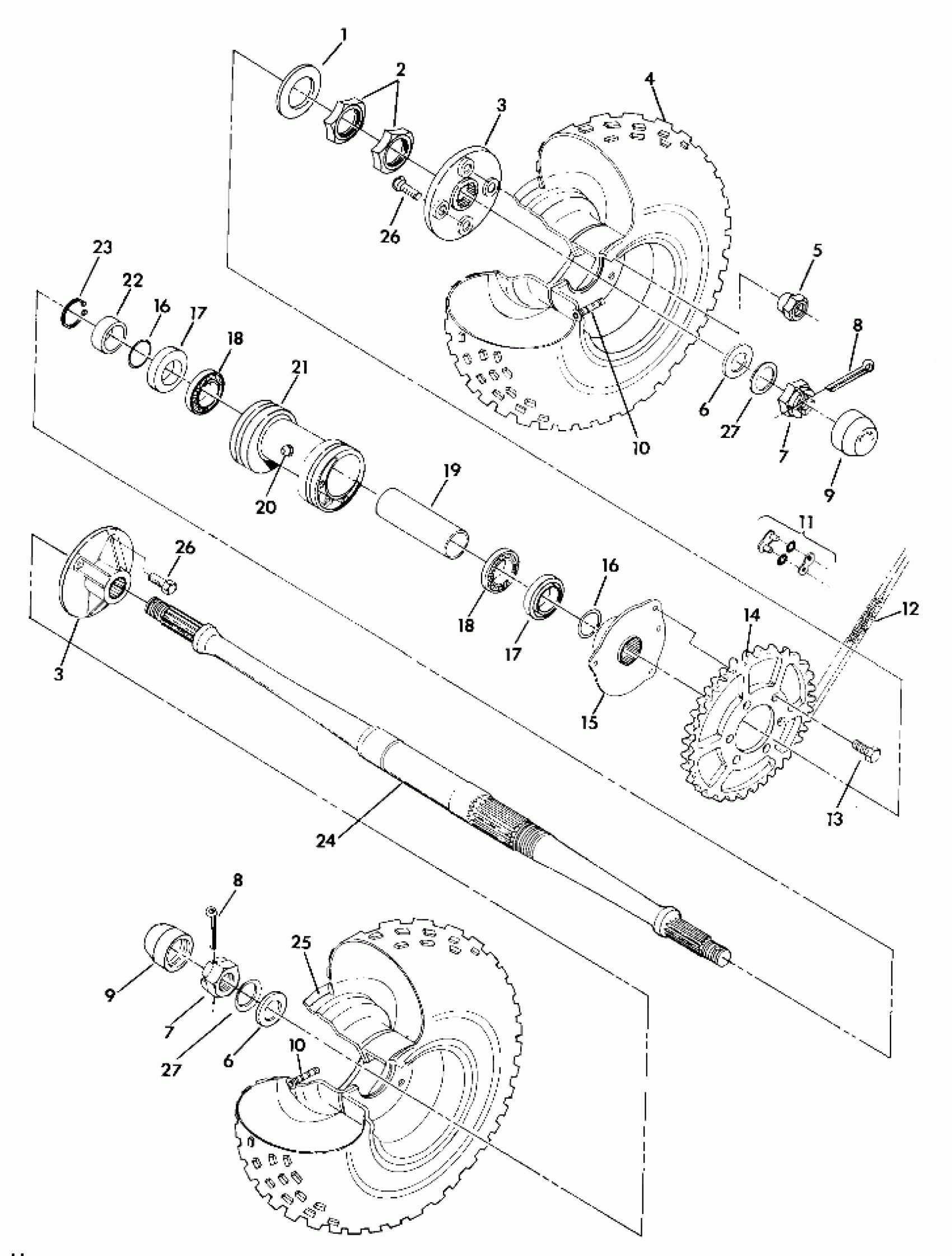

Polaris TRAIL BLAZER - W907221 Rear Wheel Drive Assembly (4918411841017A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

4

TIRE,REAR

5410465

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

Unavailable

6

WASHER(10)

7555745

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.76

8

PIN, COTTER(10)

7661404

$4.76

9

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

9

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

10

VALVE-RIM

1525017

$6.46

10

VALVE-RIM

1525017

$6.46

11

CONNECTOR LINK

3225024

$24.27

12

CHAIN,DRIVE, 88P Substituted by 3224056-088 (Includes Connector)

3224042

$145.70

13

BOLT(10)

7515488

Unavailable

14

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

15

HUB, SPROCKET Substituted by 1520170

5630320

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

Unavailable

17

SEAL, REAR AXLE

3610013

Unavailable

18

Bearing, Ball

3515501

$27.78

18

Bearing, Ball

3515501

$27.78

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

Unavailable

23

RING, SNAP(10)

7710405

$4.76

24

AXLE, REAR

5020504

$239.99

25

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

1520128

Unavailable

26

BOLT, WHEEL(10)

7512673

$3.17

26

BOLT, WHEEL(10)

7512673

$3.17

27

WASHER, CONE(10)

7555796

$7.94

27

WASHER, CONE(10)

7555796

$7.94
