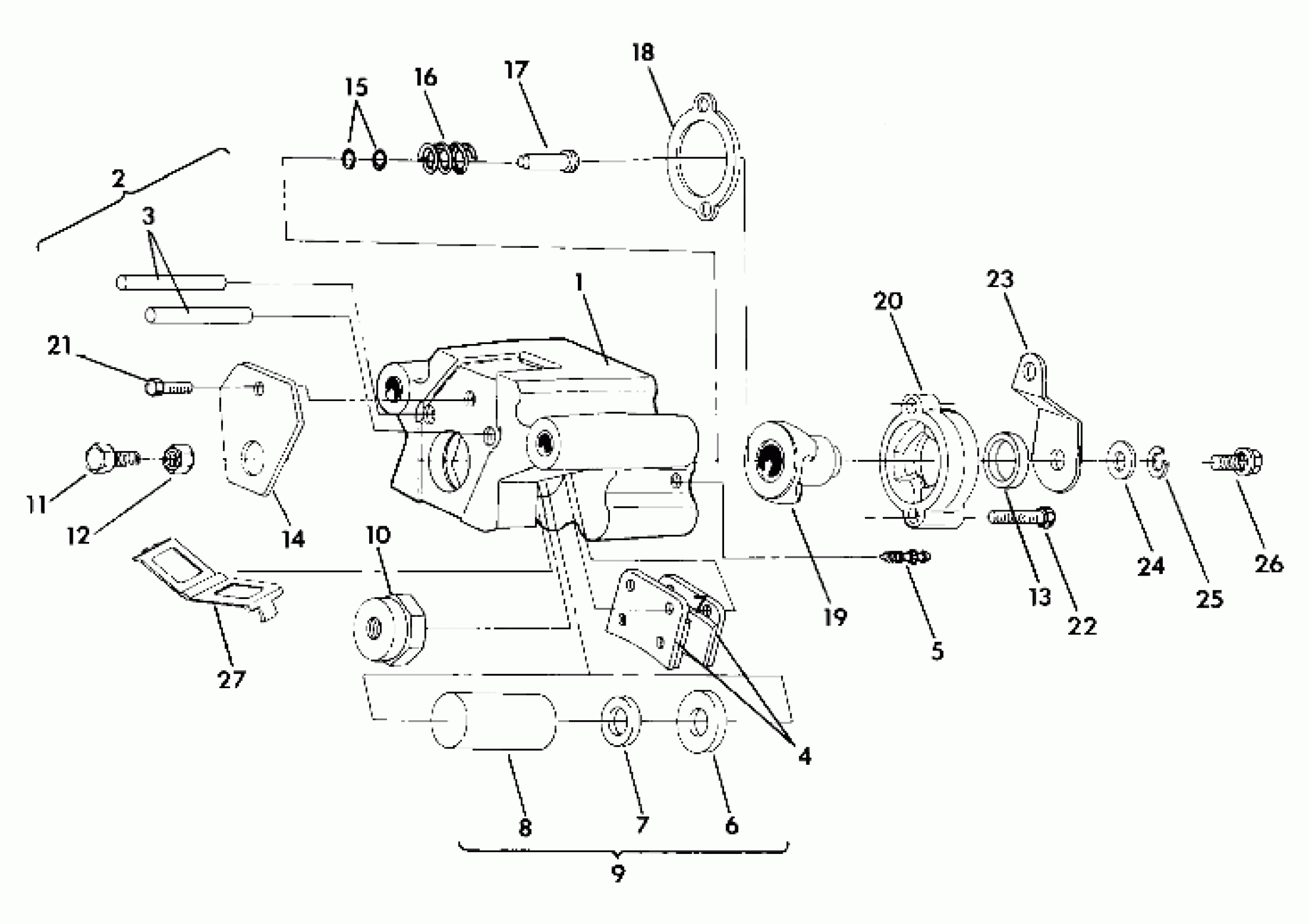

Polaris TRAIL BLAZER - W907221 Rear Brake Assembly (4918411841030A) Diagram

#

Description
Price

-

BRAKE CALIPER ASM. [No Longer Available] (Complete)

1910039

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3, 4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

4

Brake Pad, Rear

-------

Unavailable

5

SCREW,BLEEDER

7080352

$3.19

6

Seal Ring, .120 Sq.

-------

Unavailable

7

Seal Ring, .066 Sq.

-------

Unavailable

8

Piston, Brake, Rear

-------

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl. 6, 7, 8, 15, 17, 18)

1930666

Unavailable

10

NUT,HEX,(BRAKE ADJ.)

5020522

Unavailable

11

BOLT(10)

7515501

Unavailable

12

NUT, JAM(10)

7542432

$3.99

13

SEAL, BRAKE

3610026

$7.99

14

PLATE, PIN

5211143

Unavailable

15

O-Ring, .070

-------

Unavailable

16

SPRING,BRAKE,COMP.

7041219

$24.99

17

Brake Actuator Pin

-------

Unavailable

18

GASKET, BRAKE

5830009

$9.99

19

RAMP,MOVE.BRAKE Substituted by 2200391

5630366

Unavailable

20

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

21

SCREW, SEMS(10)

7512020

$2.39

22

BOLT, SOC. HD.(10)

7512292

Unavailable

23

ARM,BRAKE CALIPER

5222457

Unavailable

24

WASHER(10)

7558301

$1.49

25

LOCK WASHER(10)

7552801

$1.59

26

BOLT(10)

7512289

Unavailable

27

SPRING,ANTI-RATTLE

5222232

Unavailable
