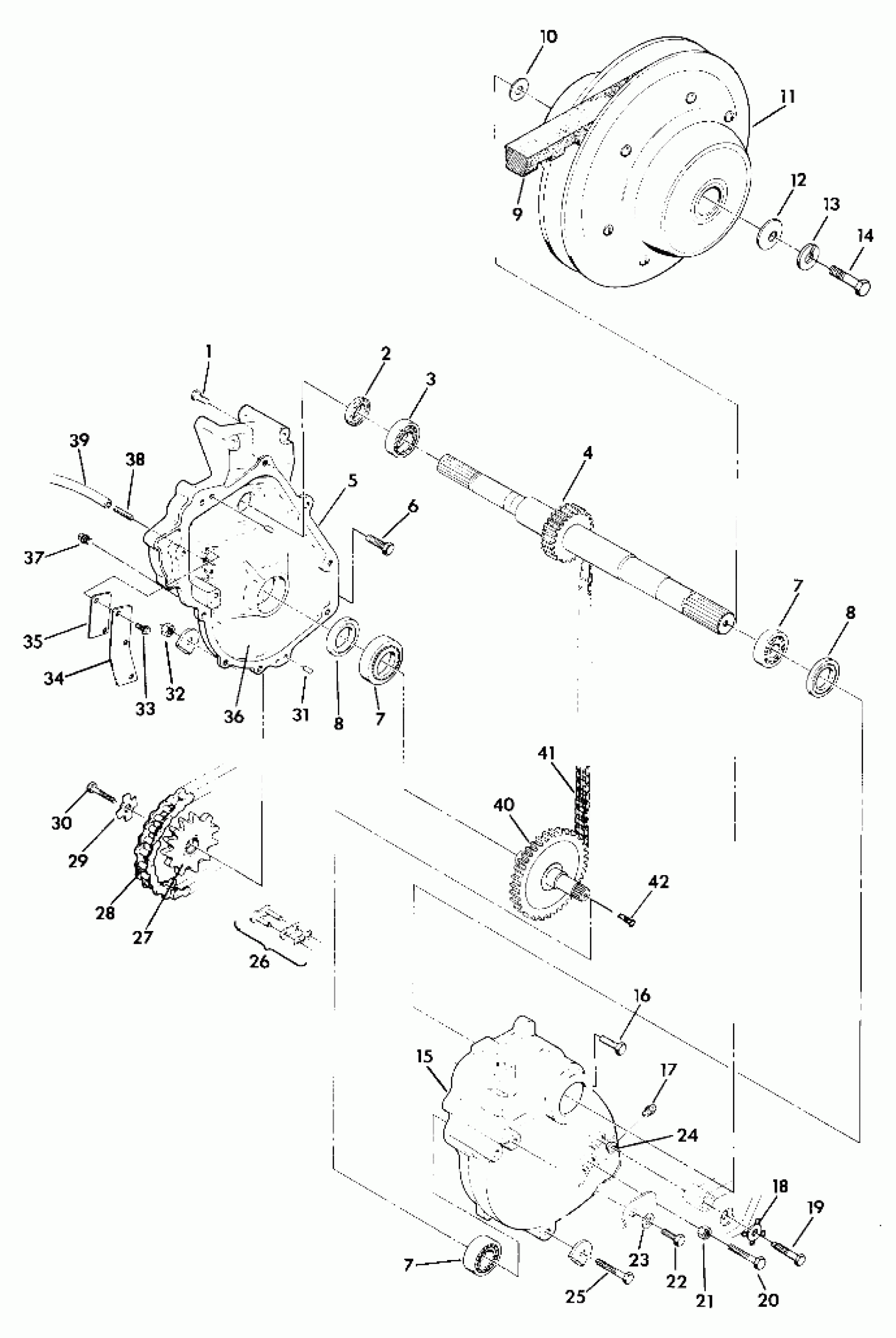

Polaris TRAIL BLAZER - W907221 Gearcase Assembly (4918411841025A) Diagram
#
Description
Price
-
GEARCASE ASM. [No Longer Available]
1341072
Unavailable
2
SEAL, OIL
3610014
Unavailable
4
SHAFT, INPUT
5130776
Unavailable
5
Desc not available [No Longer Available]
8570041
Unavailable
8
SEAL, OIL
3610015
Unavailable
8
SEAL, OIL
3610015
Unavailable
9
BELT-DRIVE(5) Substituted by 3211077
3211048
Unavailable
10
SPACER, DRIVEN
5211041
Unavailable
11
CLUTCH, DRIVEN Substituted by 1322158
1322138
Unavailable
15
GEARCASE, LH [No Longer Available]
5130778
Unavailable
16
SCREW(10)
7512243
Unavailable
17
PLUG,PIPE,MAGNETIC
7051512
Unavailable
19
BOLT, SHOULDER
7512702
Unavailable
22
BOLT(10) Substituted by 7512492
7515458
Unavailable
24
BUSHING,SWING ARM MT.
5630267
Unavailable
28
CHAIN,DRIVE, 88P Substituted by 3224056-088
3224042
Unavailable
29
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
30
BOLT(10)
7512391
Unavailable
31
PIN, DOWEL(10)
7661904
Unavailable
34
PLATE, VENT
5211036
Unavailable
35
GASKET, VENT
5810305
Unavailable
36
GEARCASE,RH,MACH.
5130779
Unavailable
37
PLUG, PIPE(10)
7051511
Unavailable
39
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
40
SHAFT, OUTPUT [No Longer Available]
5130777
Unavailable
41
CHAIN, SILENT
3224038
Unavailable
41
OIL, GEARCASE Substituted by 2870337
8690042
Unavailable
