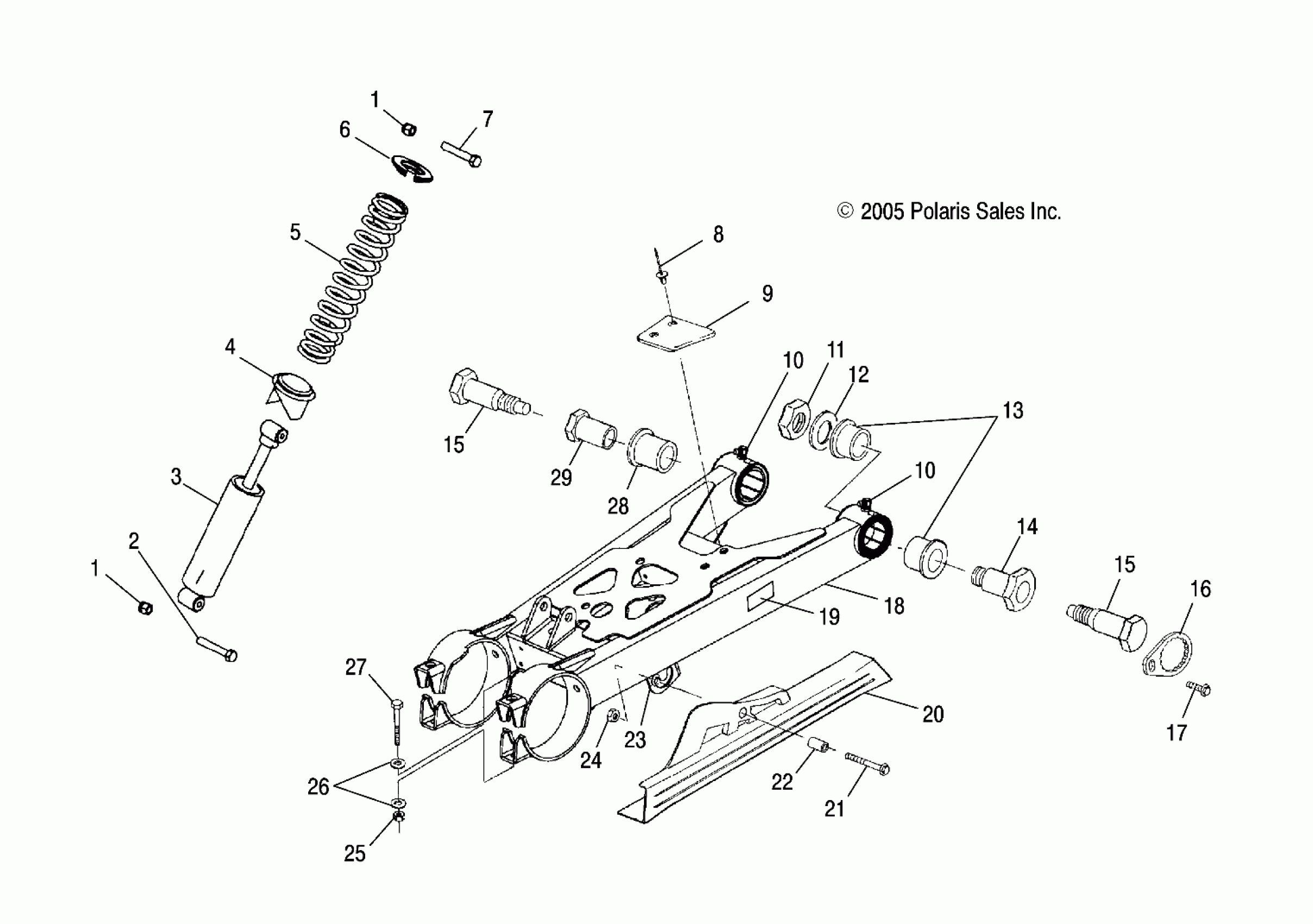

Polaris TRAIL BLAZER - A06BA25CA SWING ARM/SHOCK MOUNTING - A06BA25CA (4999201499920149B07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

2

SCREW

7517761

$5.56

3

Shock, Rear

7042319

Unavailable

4

CAM, ADJUSTING, SPRING

5630551

$29.82

5

Spring, Compression, Indy Red

7043068-293

$61.90

6

Retainer, Spring

5631045

$10.32

7

Screw

7515415

$1.19

8

Rivet

7661046

$3.97

9

Guide, Chain, Pad

5432727

Unavailable

10

Fitting

7080510

$5.56

10

Fitting

7080510

$5.56

11

Nut, Hex, Jam

7547082

$32.37

12

Washer, Flat

7556035

Unavailable

13

Bushing, RH

5434546

$8.73

14

Bushing, Pivot, RH

5133167

$35.71

15

Bolt, Pivot

5134321

$40.46

15

Bolt, Pivot

5134321

$40.46

16

Bracket, Bolt Lock

5247488

Unavailable

17

SCREW

7515399

$1.19

18

Asm., Swing Arm, Black [Incl. 10,13,28]

1541988-067

Unavailable

19

Decal, "Chain Free Play"

7078572

Unavailable

20

Guard, Chain

5432854

Unavailable

21

Screw, Flanged

7515304

$5.56

22

Bushing

5332828

$9.70

23

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

25

Nut, Nylok

7547066

$1.59

26

Washer

7555883

$3.97

27

Bolt

7512576

$7.94

28

Bushing, LH

5434545

$8.73

29

Bushing, Pivot, LH

5133166

$31.75
