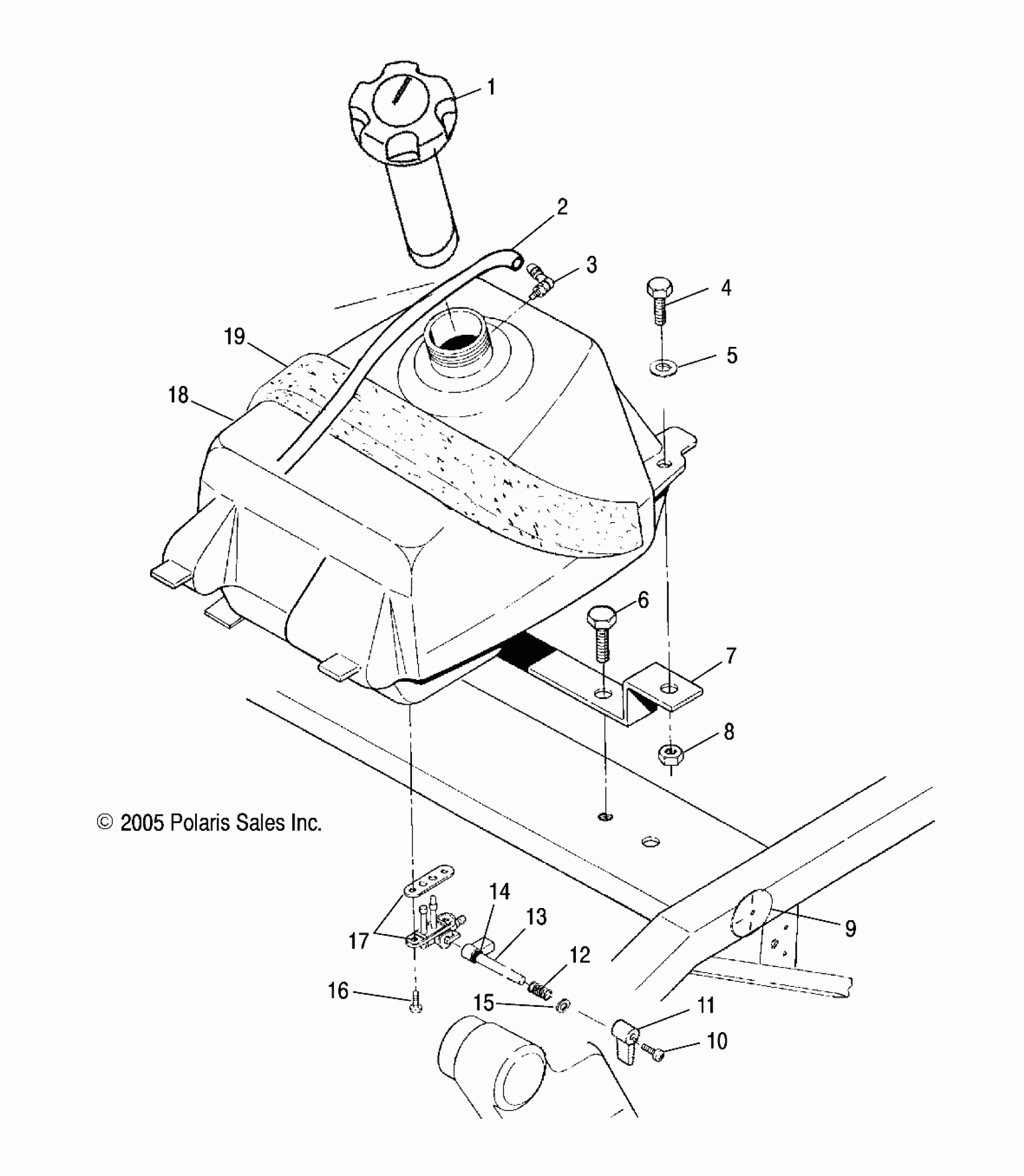

Polaris TRAIL BLAZER - A06BA25CA FUEL SYSTEM - A06BA25CA (4999201499920149A10) Diagram

#

Description
Price

1

Cap, Fuel Gauge

2871441

$17.76

2

LINE, FUEL

8360009-600

Unavailable

3

Vent, Tank

5431053

$24.27

4

Screw

7512310

$2.38

5

Washer, Flat

7555734

$0.79

6

Screw

7512208

$2.74

7

Bracket, Tank Mount, Rear, Black

5220916-067

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

Decal, Fuel Lever

7074637

Unavailable

10

Screw

7511840

Unavailable

11

Lever, Fuel

5431021

$4.84

12

Spring, Lever, Compression

7041209

$8.08

13

Extension, Fuel Lever

5431391

$7.27

14

Grommet

5412423

Unavailable

15

Washer

7555726

$1.59

16

Screw

7515136

$1.19

17

Asm., Fuel Valve [Incl. Gasket]

7051006

$56.65

17

Gasket, Fuel Valve

5810859

$6.46

18

Asm., Tank, Fuel w/Valve [Incl. 3,16,17]

2520241

Unavailable

19

Seal, Foam

5811527

Unavailable
