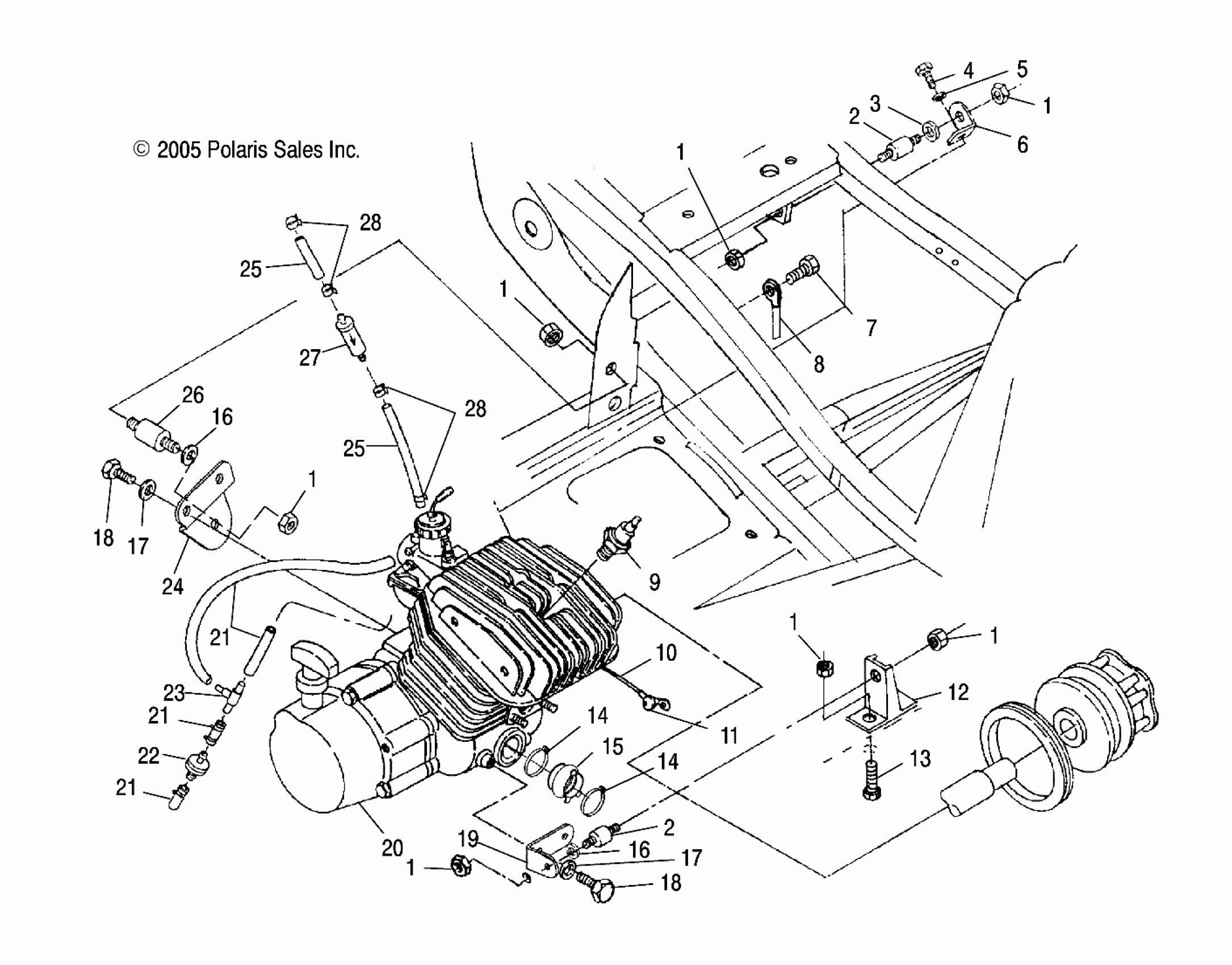

Polaris TRAIL BLAZER - A06BA25CA ENGINE MOUNTING - A06BA25CA (4999201499920149A07) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

Mount, Motor

3110026

Unavailable

2

Mount, Motor

3110026

Unavailable

3

Insulator, Motor Mount

5430802

$27.99

4

BOLT

7512315

$4.79

5

WASHER, SPRING LOCK

7552901

$1.49

6

Bracket, Engine Mount, Top

5248291

Unavailable

7

SCREW

7517386

$1.49

8

Cable, Ground, Engine

4010132

Unavailable

9

Spark Plug, NGK BR8ES

3070156

$3.99

10

Cable, Solenoid/Starter

4010129

Unavailable

11

INSULATOR-CABLE

5410346

$6.39

12

Mount, Engine, Front, Black

1040687-067

$15.56

13

Bolt

7515481

$2.63

14

Clamp

7080511

$4.79

14

Clamp

7080511

$4.79

15

BOOT, CLUTCH INTAKE

5412487

Unavailable

16

WASHER

7555823

Unavailable

16

WASHER

7555823

Unavailable

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

18

Screw

7512490

$3.99

18

Screw

7512490

$3.99

19

Bracket, Engine Mount, Front

5247947

$15.67

20

Engine, Short Block EC250PFE155 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required f

3089533

Unavailable

21

LINE, FUEL

8360009-600

Unavailable

21

LINE, FUEL

8360009-600

Unavailable

21

LINE, FUEL

8360009-600

Unavailable

22

VALVE, CHECK

7051011

Unavailable

23

Fitting, Tee

7052005

Unavailable

24

Bracket, Engine Mount, Rear

5247948

Unavailable

25

Line, Fuel

8450003-1525

Unavailable

25

Line, Fuel

8450003-1525

Unavailable

26

Mount, Engine

3110028

Unavailable

27

Filter, Small

2530009

$5.65

28

HOSE CLAMP, RED

7080003

$1.49

28

HOSE CLAMP, RED

7080003

$1.49
