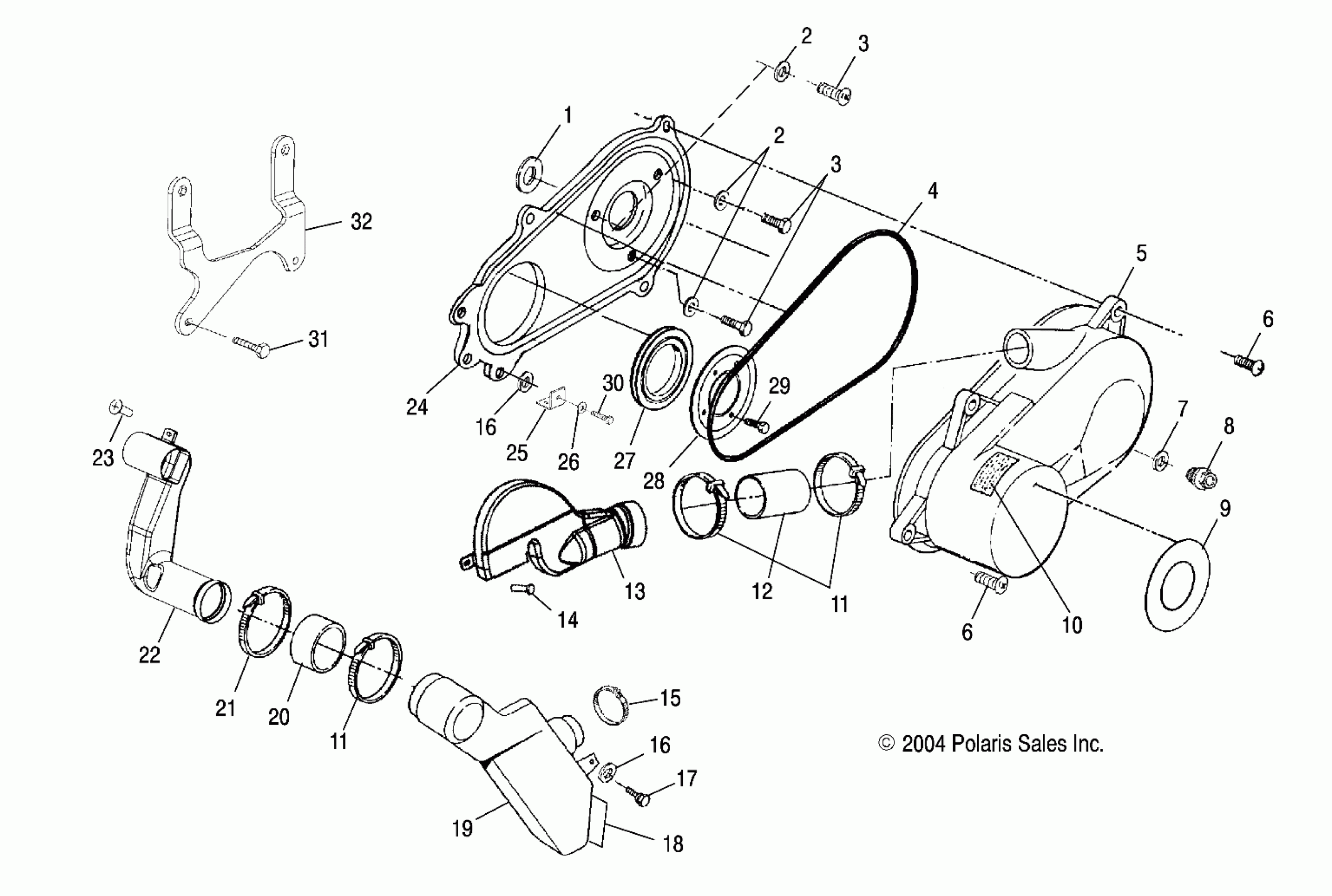

Polaris TRAIL BLAZER - A06BA25CA CLUTCH COVER - A06BA25CA (4994739473C01) Diagram

#

Description
Price

1

Seal, Cover

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

Bolt and Washer

7510000

Unavailable

3

Bolt and Washer

7510000

Unavailable

4

Seal, Clutch Cover, Outer

5521578

$44.51

5

Asm., Clutch Cover, Outer [Incl. 7,8]

2633262

$186.17

6

SCREW

7512094

$1.59

6

SCREW

7512094

$1.59

7

O RING-.364X.504X.07

5410542

$4.84

8

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

9

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

10

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

12

BOOT, DUCT

5412636

$24.27

13

Duct, Clutch, Out

5434160

Unavailable

14

Screw

7517916

$6.35

15

Clamp

7080511

$4.76

16

Washer, Nylon

7555932

$2.38

16

Washer, Nylon

7555932

$2.38

17

Screw

7518196

$1.19

18

Tape, Foil

5811373

$2.46

19

Duct, Inlet, Clutch

5433258

$49.21

20

Boot, Air Inlet, Upper

5411822

Unavailable

21

Clamp

7080413

$3.17

22

Duct, Clutch Inlet, Upper

5436318

Unavailable

23

Screw

7512084

$1.19

24

Kit, Cover, Clutch, Inner [Incl. 4,6,27,30]

2202418

$107.54

25

Bracket, Clutch Cover, Front

5247949

Unavailable

26

Washer

7555935

$2.38

27

Seal, Cover, Case

5410749

Unavailable

28

Bracket, Retainer, Seal

5248228

Unavailable

29

Asm., Screw and Washer

3081635

Unavailable

30

Screw

7512098

$1.59

31

SCREW

7517386

$1.19

32

Bracket, Clutch Cover

5247524-067

Unavailable
