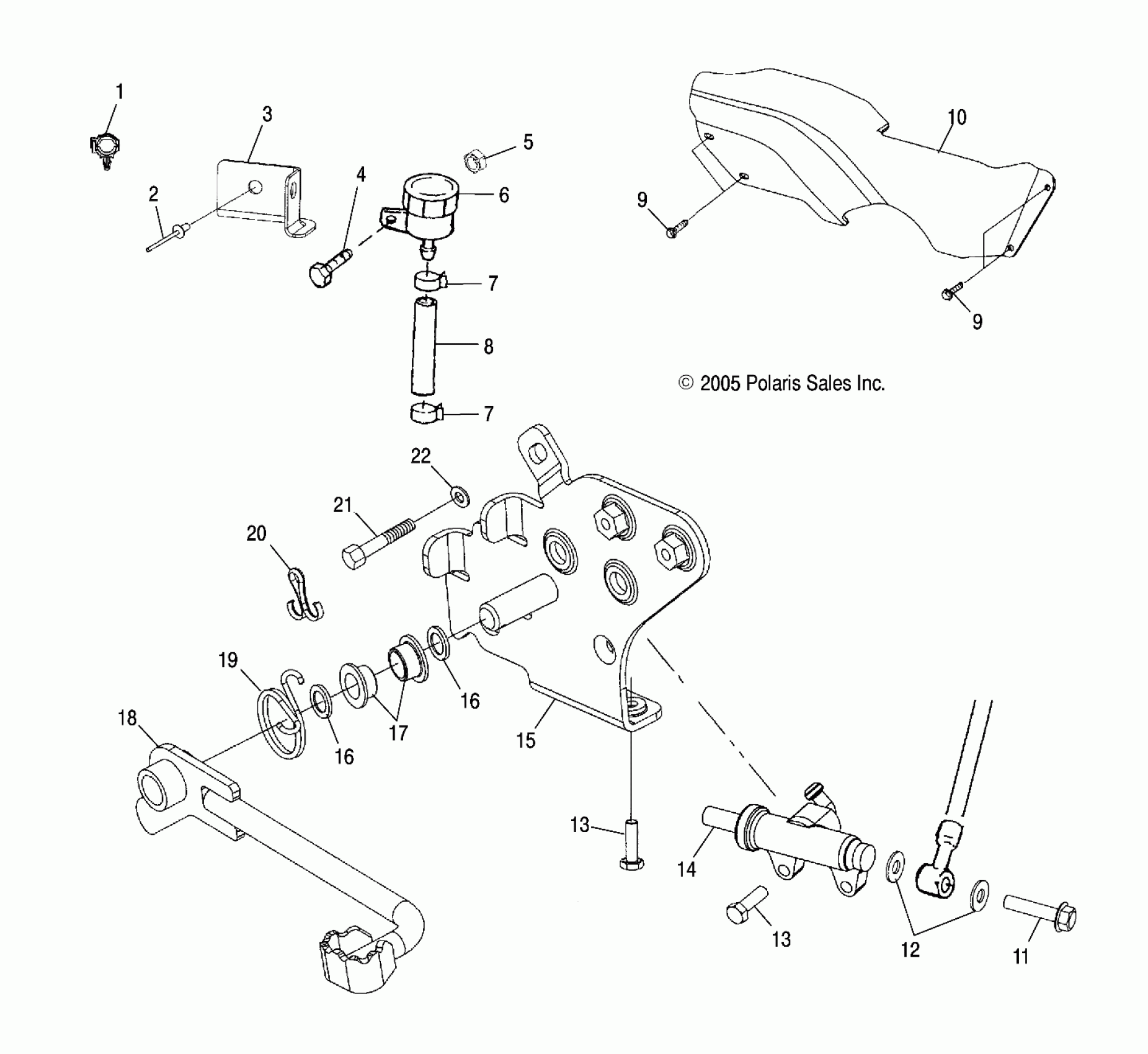

Polaris TRAIL BLAZER - A06BA25CA BRAKE, REAR MASTER CYLINDER - A06BA25CA (4999201499920149B06) Diagram

#

Description
Price

1

Clip

7670102

$2.38

2

RIVET-3/16-.090-.290

7661637

$1.19

3

Bracket, Reservoir

5240030

$2.94

4

BOLT

7512240

$3.97

5

NUT, NYLOK, FLANGED

7542153

$1.59

6

Asm., Reservoir, Rear Brake

1930854

Unavailable

7

HOSE CLAMP, RED

7080003

$1.19

7

HOSE CLAMP, RED

7080003

$1.19

8

Hose, Reservoir

1910812

$5.71

9

Screw

7517916

$6.35

9

Screw

7517916

$6.35

10

Guard, Prop Shaft, Side

5435245

Unavailable

11

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

12

Seal

5410988

$4.84

13

Screw

7515158

$4.76

13

Screw

7515158

$4.76

14

Asm., Foot Brake Master Cylinder

1910791

$174.03

15

Mount, Brake, Black

1910798-067

$39.37

16

WASHER

7555919

$4.99

16

WASHER

7555919

$4.99

17

BUSHING, PEDAL PIVOT

5433189

$3.97

18

Pedal, Brake, Black

1910767-067

$63.49

19

SPRING-TORSION,BRAKE

7041750

$8.89

20

PIN, COTTER

7661401

$0.79

21

Bolt

7512232

$1.19

22

Washer, Flat

7558301

$1.19
