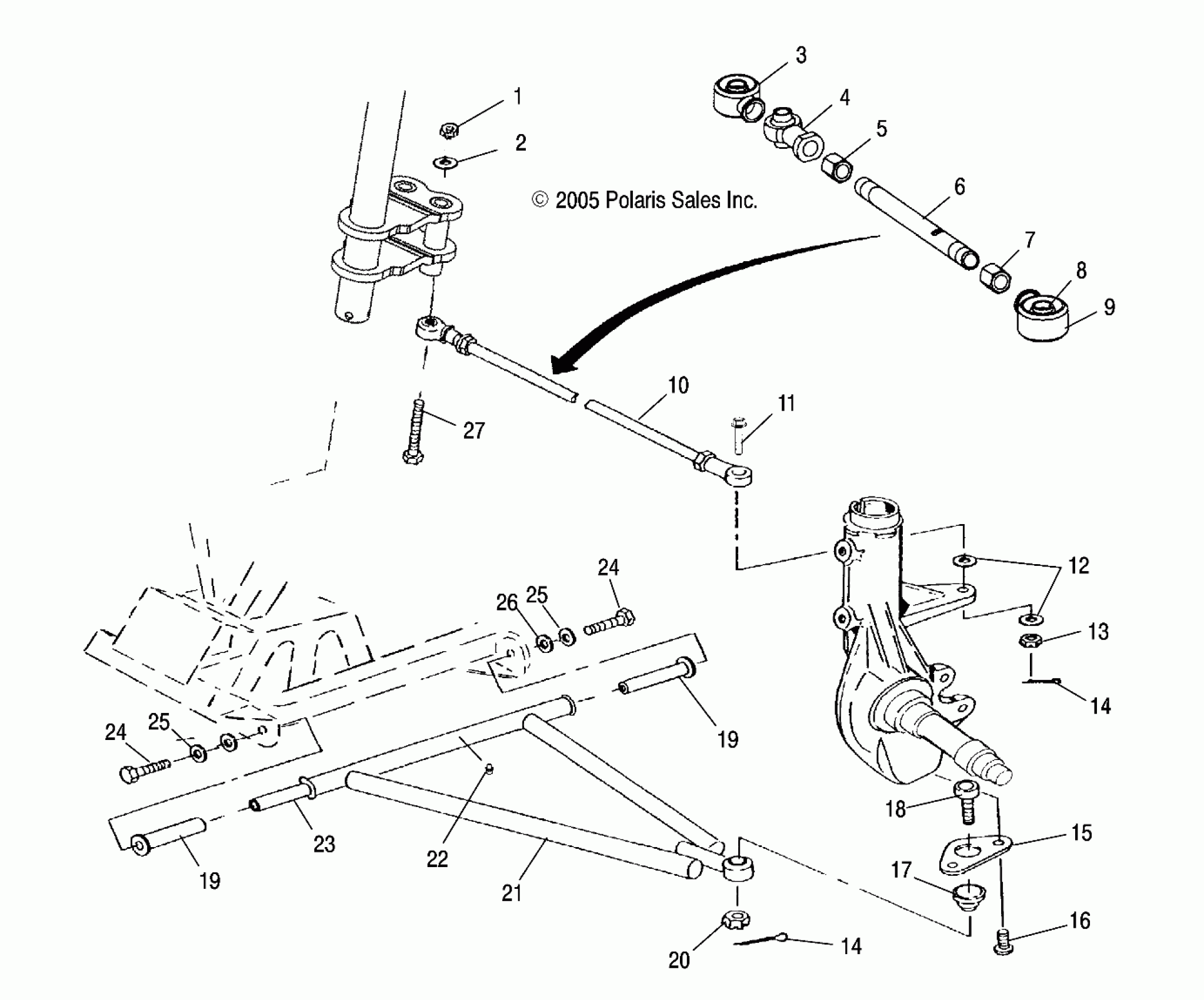

Polaris TRAIL BLAZER - A06BA25CA A-ARM/STRUT MOUNTING - A06BA25CA (4999201499920149B01) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Washer, Wrought

7558403

$4.79

3

Boot, Seal (If built after 10/01/05)

5412928

$11.32

3

Boot, Seal (If built before 10/01/05)

5411291

Unavailable

4

Rod End, RH (If built after 10/01/05)

7061139

$55.99

4

Rod End, RH (If built before 10/01/05)

7061034

$54.04

5

Nut, Jam

7542711

$2.39

6

Tie Rod

5134242

$39.99

7

Nut, Jam, LH

7547028

$2.39

8

Boot, Seal (If built after 10/01/05)

5412929

$11.19

8

Boot, Seal (If built before 10/01/05)

5411920

Unavailable

9

Rod End, LH (If built after 10/01/05)

7061138

$51.99

9

Rod End, LH (If built before 10/01/05)

7061054

Unavailable

10

Asm., Tie Rod (If built after 10/01/05)

1822851

$103.99

10

Asm., Tie Rod (If built before 10/01/05)

1821498

Unavailable

11

Bolt

7517909

$5.59

12

Washer

7556099

$1.59

13

Nut

7547177

$2.39

14

Pin, Cotter

7661203

$1.49

14

Pin, Cotter

7661203

$1.49

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

Joint, Ball

7080927

$76.89

19

Bushing, A-Arm, Long

5434551

$5.01

19

Bushing, A-Arm, Long

5434551

$5.01

20

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

21

Kit, A-Frame, LH (Incl. 14,19,23-25)

2202276

Unavailable

21

Kit, A-Frame, RH (Incl. 14,19,23-25)

2202277

Unavailable

22

Fitting, Lubrication

7080433

$1.49

23

Shaft, A-Arm

5133806

$30.79

24

Screw

7512492

$1.49

24

Screw

7512492

$1.49

25

Washer, Lock

7552603

$1.49

25

Washer, Lock

7552603

$1.49

26

WSHR-.813X.406X.105-Y

7555832

$2.39

27

Bolt

7518033

$34.99
