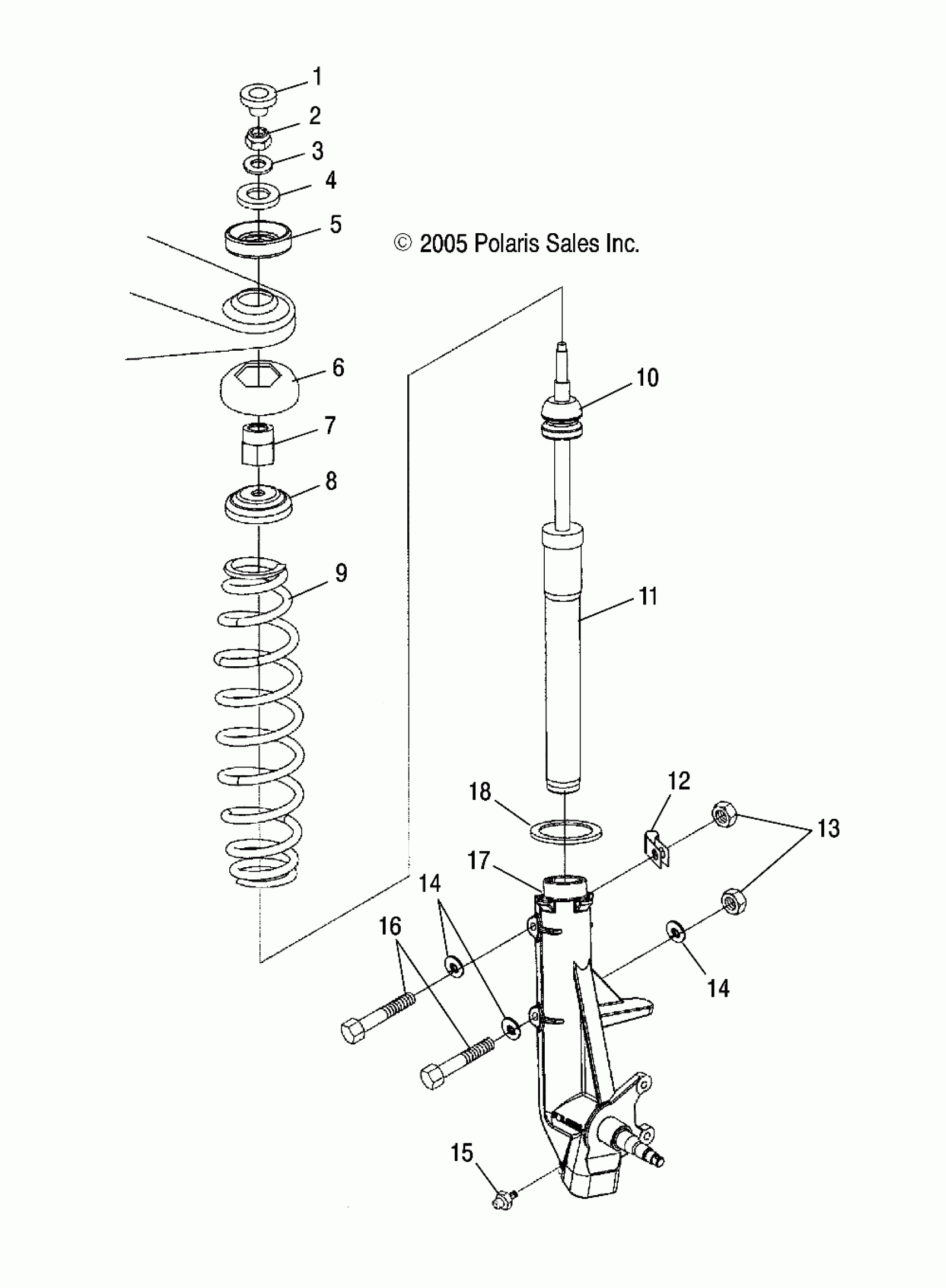

Polaris TRAIL BLAZER - A05BA25CA STRUT - A05BA25CA/CB (4999201499920149A13) Diagram

#

Description
Price

1

Grommet

7052028

$6.39

2

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

3

WASHER

7555749

$1.49

4

SPACER-RUBBER

5810291

$3.99

5

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

SPACER

5132062

$19.99

8

RETAINER-SPRING,STRUT

5243364

$19.99

9

Spring, Compression, Yellow

7042310-216

Unavailable

10

BUMPER-MCU,17.8MM ID

5412665

$6.39

11

STRUT, FRONT

7041762

$123.99

12

CLAMP-CABLE

7080367

$2.39

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Fitting, Lubrication

7080306

$3.19

16

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

17

Support, Strut/Spindle, LH

5134133

Unavailable

17

Support, Strut/Spindle, RH

5134134

Unavailable

18

WASHER-2.06X2.62X.105-Y

5211115

$3.99
