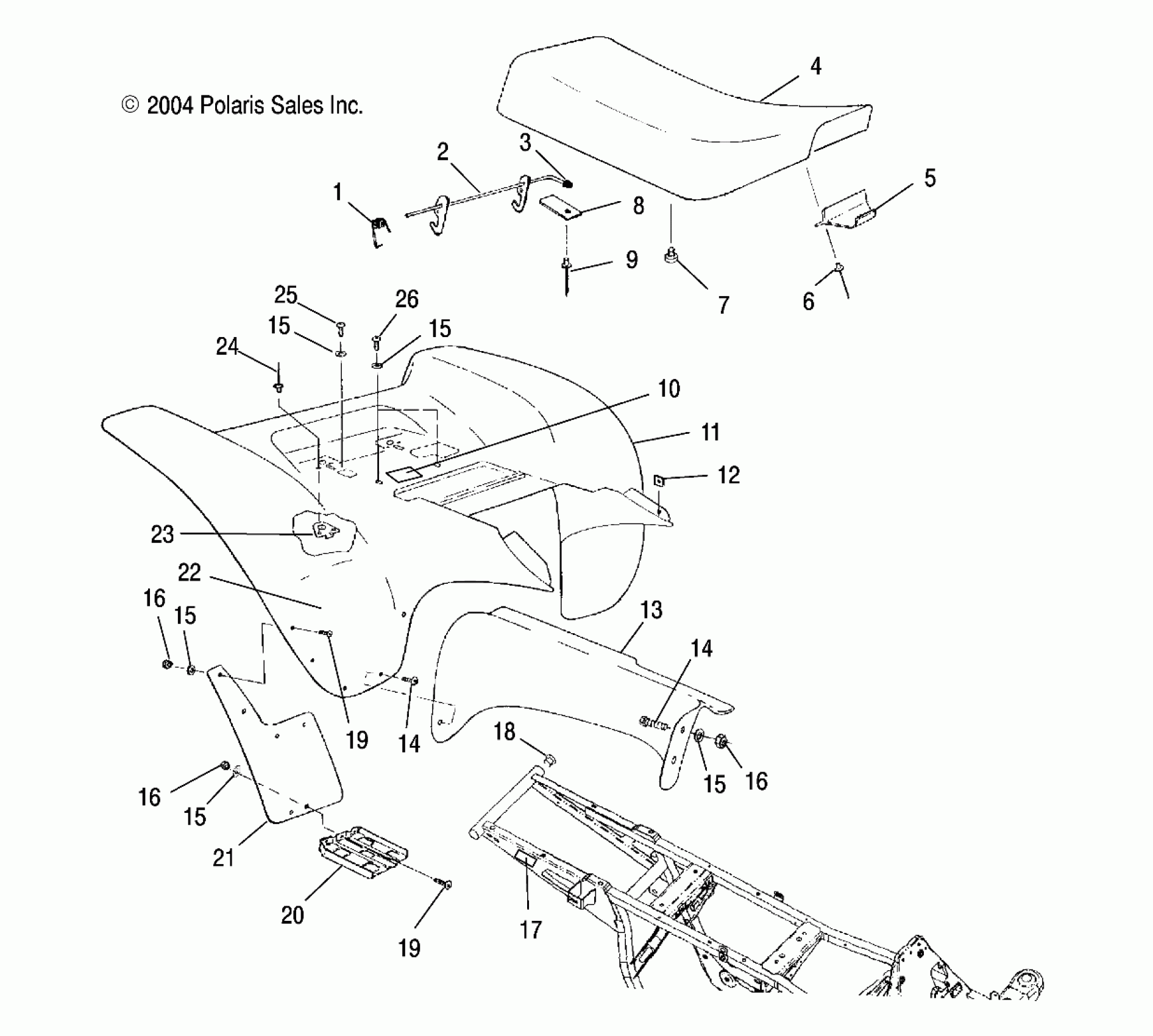

Polaris TRAIL BLAZER - A05BA25CA REAR CAB - A05BA25CA/CB (4994739473A04) Diagram

#

Description
Price

1

Spring, Latch

7041607

Unavailable

2

Latch, Seat

1040412

Unavailable

3

Cap, Seat Latch

5411392

Unavailable

4

Cover, Seat, Black

2683328-070

Unavailable

4

Asm., Seat, Black w/White POLARIS

2683329-070

Unavailable

5

Tongue, Seat

5431986

$10.51

6

RIVET

7621479

$1.98

7

BUMPER-RUBBER

5412067

$3.97

8

BRACKET, LEVER RETAINER

5211033

$34.99

9

RIVET

7621403

$1.19

10

Decal, Carb/Filter Information

7079901

Unavailable

11

Cab, Rear, Blazing Red [CA]

5430007-288

Unavailable

11

Car, Rear, Cosmic Sun [CB]

5430007-496

Unavailable

12

NUT, U-TYPE SPEED

7670057

$1.19

13

Foil

5811230

Unavailable

13

Asm., Muffler Shield

2632280

Unavailable

14

Screw

7517264

$3.97

14

Screw

7517264

$3.97

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

17

DECAL-REFLECT.2.88,RED

7079925

$8.08

18

Plug, End Cap, Ribbed

5432831

$5.65

19

Bolt

7512282

Unavailable

19

Bolt

7512282

Unavailable

20

FOOTPAD [SEE FRONT CAB PG. A3, REF. 25]

----

Unavailable

21

Mudflap, Rear, RH

5812543

Unavailable

21

Mudflap, Rear, LH

5812134

Unavailable

22

Foil, Rear Cab

5810957

Unavailable

22

Foil, Rear Cab, Small

5810991

Unavailable

23

Bracket, Rear Seat Holddown

5220880

Unavailable

24

RIVET

7621472

$1.49

25

SCREW

7512232

$1.19

26

SCREW

7512242

$2.38
