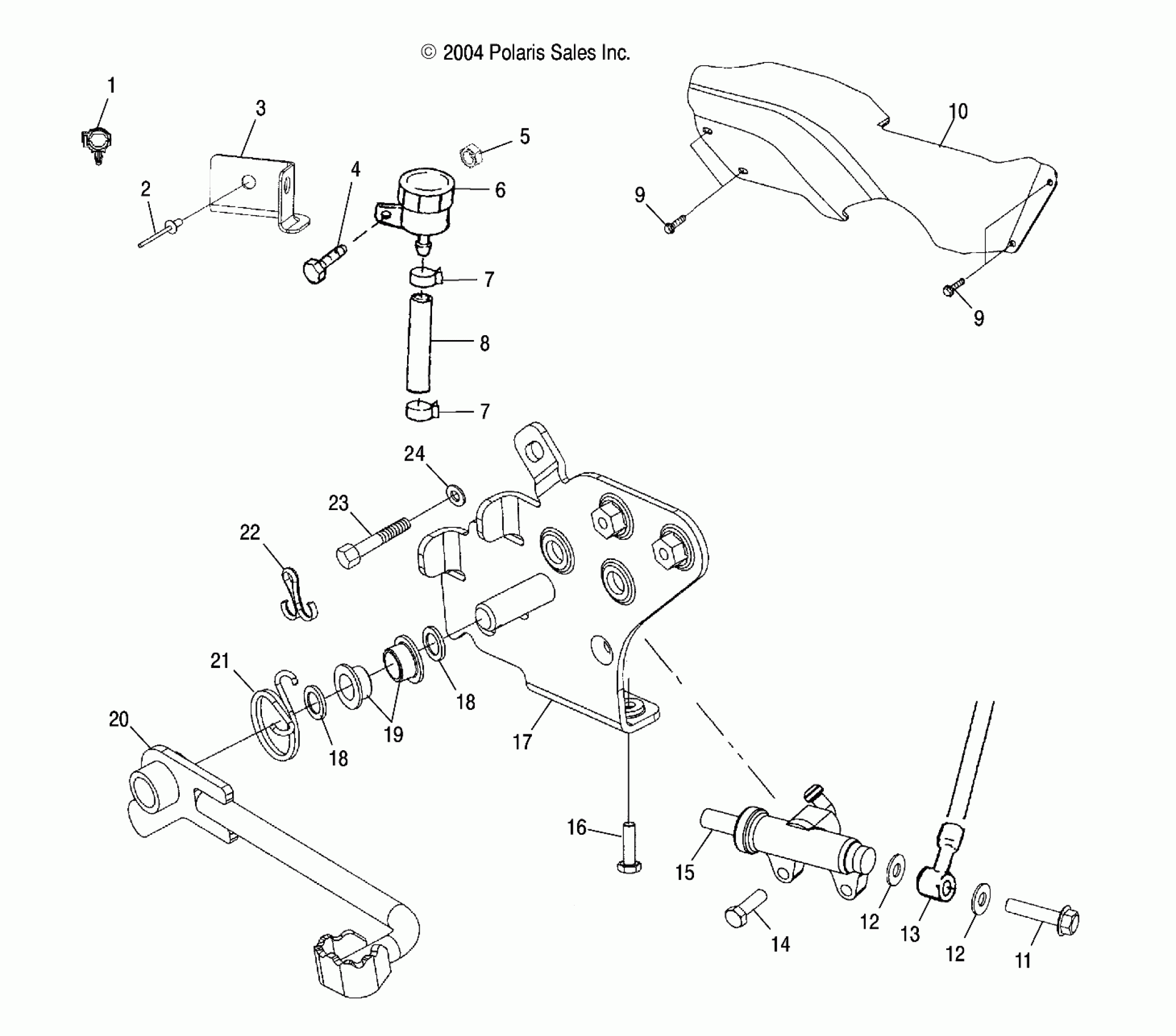

Polaris TRAIL BLAZER - A05BA25CA REAR BRAKE MASTER CYLINDER - A05BA25CA/CB (4994739473B06) Diagram

#

Description
Price

1

Clip

7670102

$2.39

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Bracket, Reservoir Plated

5240030

$2.95

4

SCREW

7512024

$4.79

5

NUT, NYLOK

7542153

$1.59

6

Reservoir

1930854

$35.99

7

HOSE CLAMP, RED

7080003

$1.49

7

HOSE CLAMP, RED

7080003

$1.49

8

Hose, Reservoir

1910812

$5.75

9

Screw

7517916

$6.39

9

Screw

7517916

$6.39

10

Guard, Prop Shaft, Side

5435245

Unavailable

11

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

12

Seal

5410988

$4.84

12

Seal

5410988

$4.84

13

LINE, FOOT BRAKE, REAR [SEE REAR CALIPER MOUNTING PG. B5, REF. 8]

-------

Unavailable

14

Screw

7515179

$2.39

15

Asm., Foot Brake Master Cylinder

1910791

$171.99

16

Screw

7515158

$4.79

17

Mount, Brake

1910798-067

Unavailable

18

WASHER

7555919

$4.99

18

WASHER

7555919

$4.99

19

BUSHING, PEDAL PIVOT

5433189

$3.99

20

Pedal, Brake

1910767-067

$63.99

21

SPRING-TORSION,BRAKE

7041750

$8.79

22

PIN, COTTER

7661401

$1.49

23

Screw

7512732

Unavailable

24

Washer, Flat

7558301

$1.49
