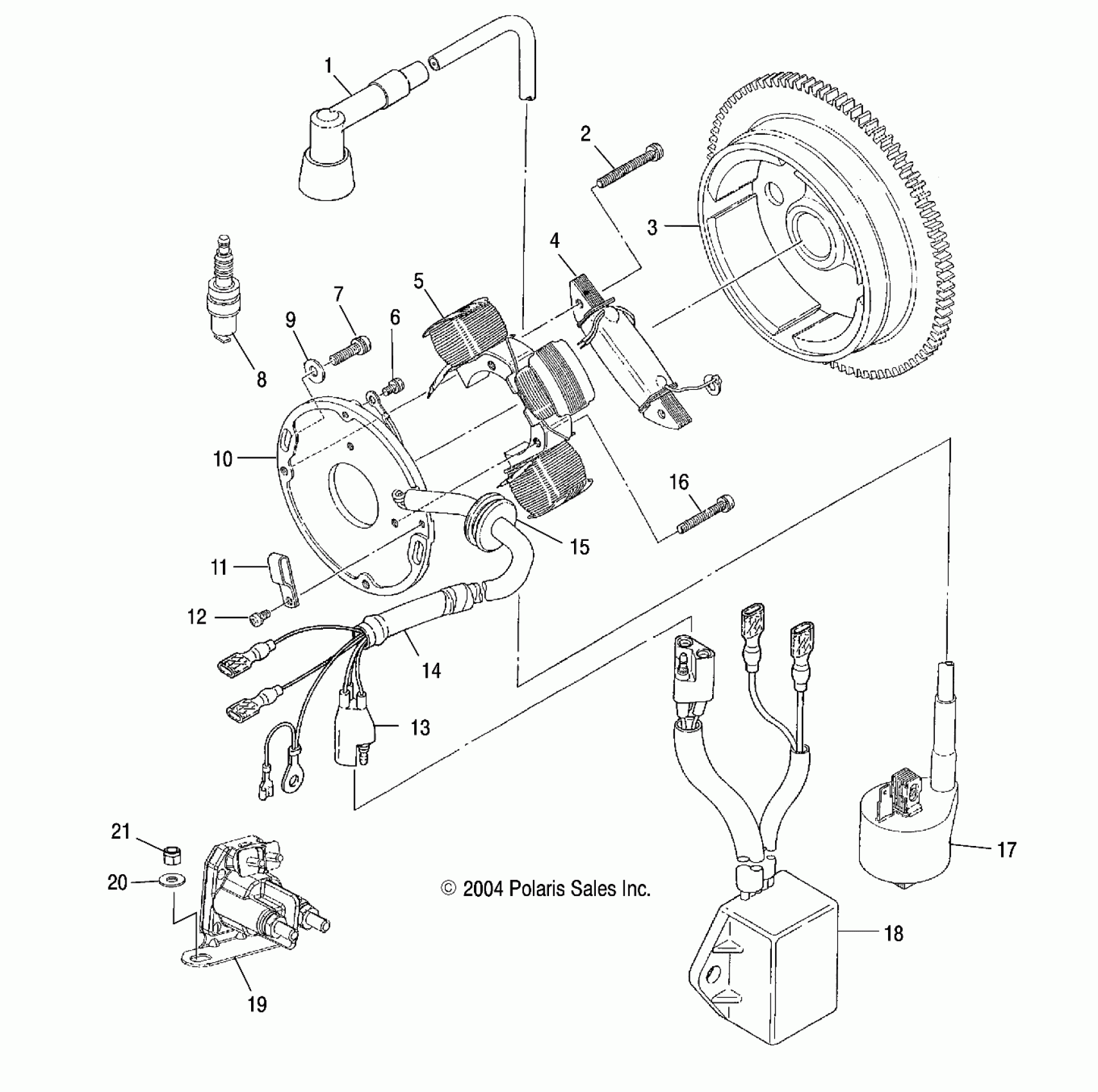

Polaris TRAIL BLAZER - A05BA25CA MAGNETO - A05BA25CA/CB (4994739473C08) Diagram

#

Description
Price

1

Cap, Spark Plug

4020129

$9.70

2

Screw and Washer

3083423

$3.19

3

Flywheel w/Ring Gear

3083939

$504.99

4

Coil, Exciting

3083422

Unavailable

5

Stator 1

3083976

Unavailable

6

Screw and Washer

3081256

$3.19

7

Screw and Washer

3086788

Unavailable

8

Plug, Spark

3089277

$3.97

9

Washer

3086789

$2.38

10

Plate, Coil

3083634

$74.39

10

Asm., Plate [Incl. 2,4,5,6,10-16]

3083979

Unavailable

11

Clamp

3081296

Unavailable

12

Screw and Washer

3081260

$3.19

13

Coupler, 3P

3083909

$23.99

14

Harness, Wire [Incl. 13,15]

3083978

$123.99

15

Grommet

3083773

Unavailable

16

Screw and Washer

3083736

$1.49

17

Ignition Coil

3083923

Unavailable

18

CDI System

3083977

Unavailable

19

Switch, Magnetic (If built after 1/10/05)

4011251

$75.99

19

Switch, Magnetic (If built before 1/10/05)

4011072

$73.35

20

WASHER, SPRING LOCK

7552801

$1.59

21

NUT

7542105

$3.99
