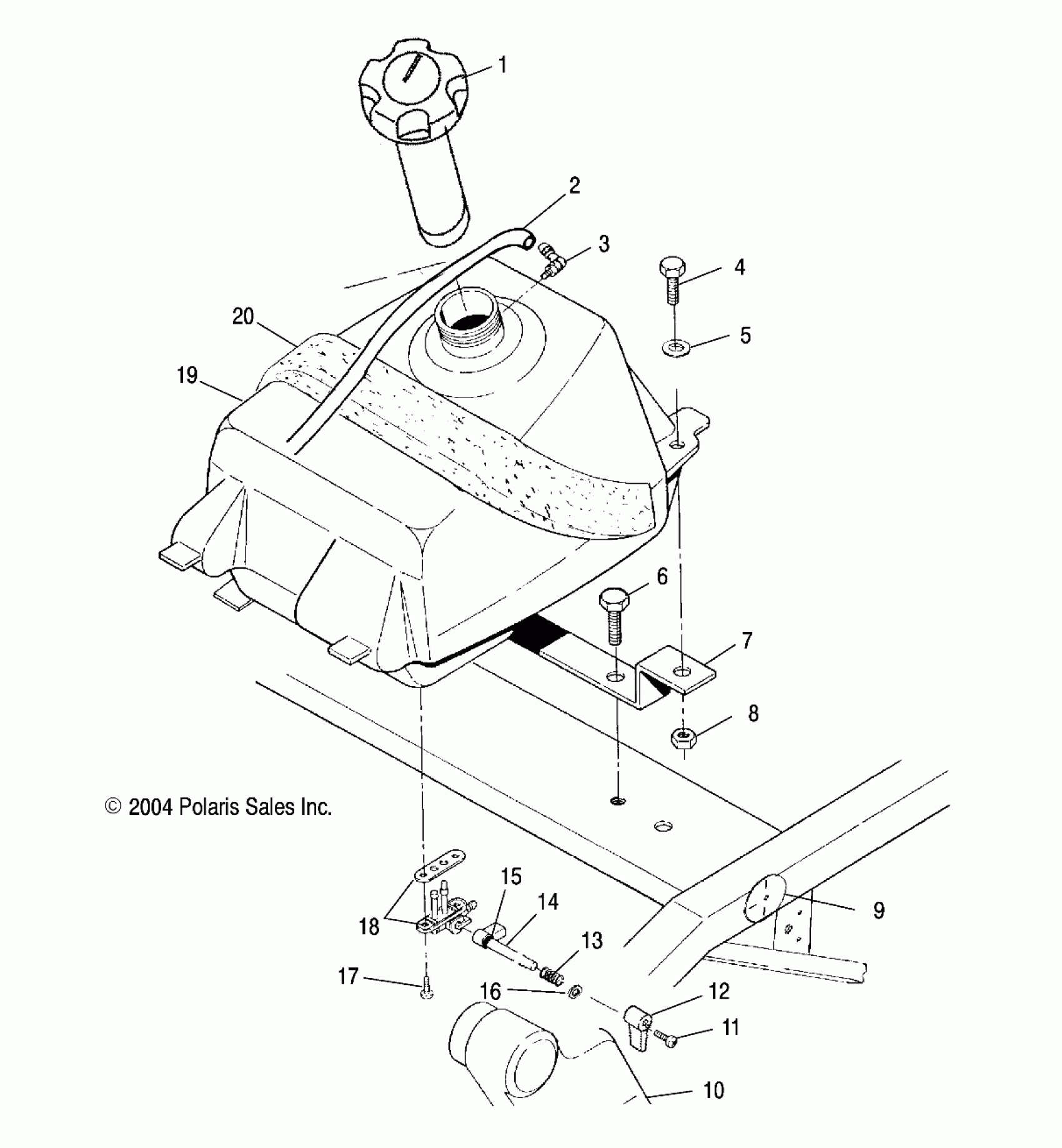

Polaris TRAIL BLAZER - A05BA25CA FUEL TANK - A05BA25CA/CB (4994739473A10) Diagram

#

Description
Price

1

Cap, Fuel Gauge

2871441

$15.99

2

LINE, FUEL

8360009-600

Unavailable

3

Vent, Tank

5431053

$19.99

4

Bolt

7512310

$2.39

5

Washer, Flat

7555734

$1.49

6

Screw

7512208

$3.99

7

Bracket, Tank Mount, Rear

5220916-067

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

Decal, Fuel Lever

7074637

Unavailable

10

DUCT, INLET CLUTCH [SEE CLUTCH COVER PG. C1, REF. 19]

-------

Unavailable

11

Screw

7511840

Unavailable

12

Lever, Fuel

5431021

$4.79

13

Spring, Lever, Compression

7041209

$7.19

14

Extension, Fuel Lever

5431391

$7.19

15

Grommet

5412423

Unavailable

16

Washer, Flat

7555726

$1.59

17

Screw

7515136

$1.49

18

Asm., Fuel Valve [Incl. Gasket]

7051006

$51.99

18

Gasket, Fuel Valve

5810859

$6.39

19

Asm., Tank, Fuel [Incl. 3,17,18]

2520241

Unavailable

20

Foam, Seal

5811527

Unavailable
