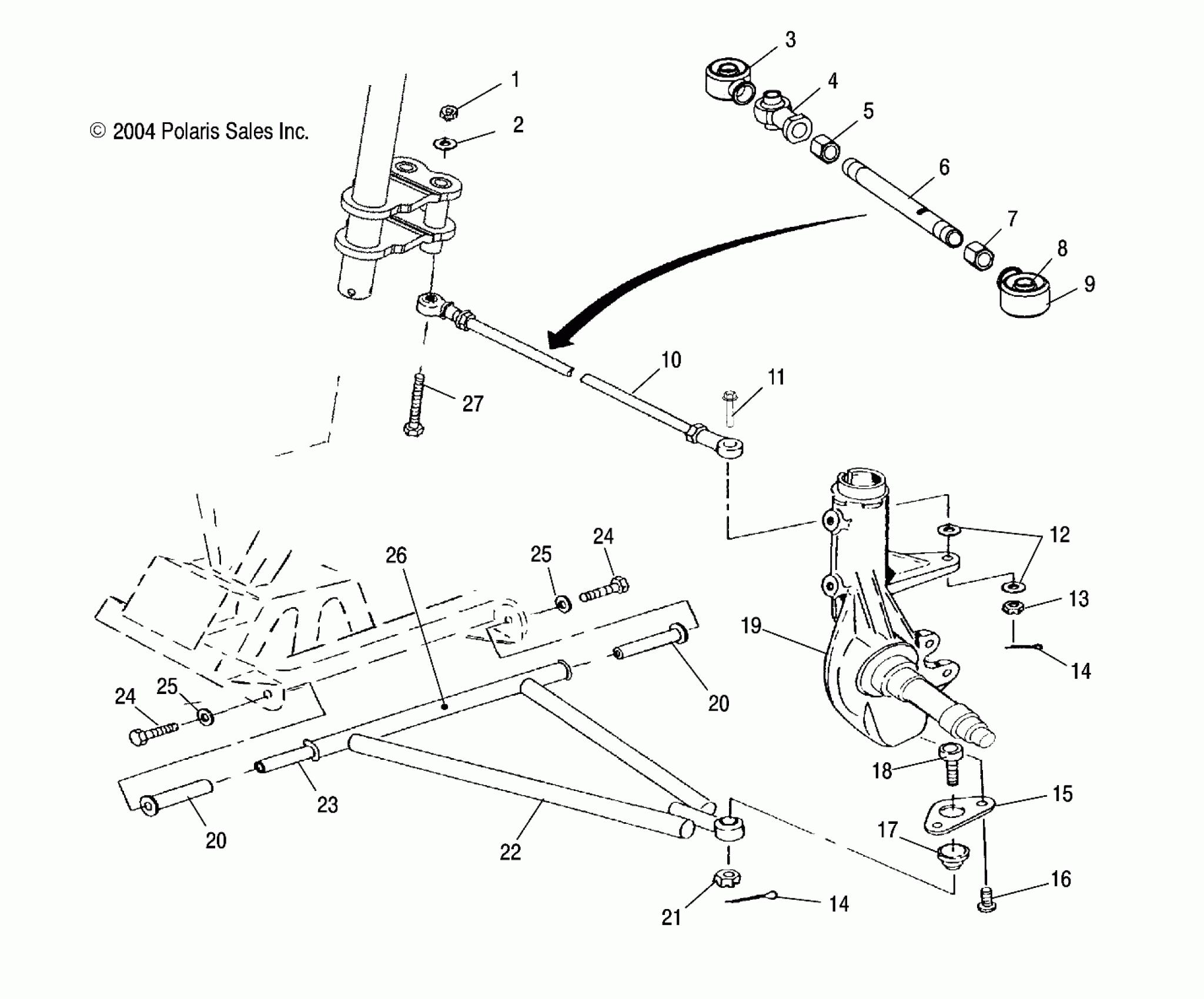

Polaris TRAIL BLAZER - A05BA25CA A-ARM/STRUT MOUNTING - A05BA25CA/CB (4994739473B01) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

2

Washer

7558403

$4.76

3

Boot, Seal, Rod End

5411291

$11.32

4

Rod End, RH

7061034

$60.70

5

Nut

7542711

$2.38

6

Tie Rod

5020927

$44.51

7

Nut, LH

7547028

$2.38

8

Boot, Seal

5411920

$11.32

9

Rod End, LH

7061054

$56.65

10

Asm., Tie Rod [Incl. 3-8]

1821498

$109.27

11

Bolt

7517909

$5.56

12

Washer, Flat

7556099

$1.59

13

Nut

7547177

$0.79

14

Pin, Cotter

7661203

$1.19

14

Pin, Cotter

7661203

$1.19

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

Joint, Ball

7080927

$28.32

19

SUPPORT, STRUT AND SPINDLE [SEE STRUT PG. A13, REF. 17]

----

Unavailable

20

Bushing, A-Arm Long

5434551

$5.56

20

Bushing, A-Arm Long

5434551

$5.56

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

Kit, A-Frame, LH [Incl. 14,20,23,24,25]

2202276

$149.99

22

Kit, A-Frame, RH [Incl. 14,20,23,24,25]

2202277

$149.99

23

Shaft, A-Arm

5133806

$33.24

24

Screw

7512492

$1.19

24

Screw

7512492

$1.19

25

Washer, Dish Lock

7571611

Unavailable

25

Washer, Dish Lock

7571611

Unavailable

26

Fitting, Lub

7080433

$1.19

27

Bolt

7518033

Unavailable
