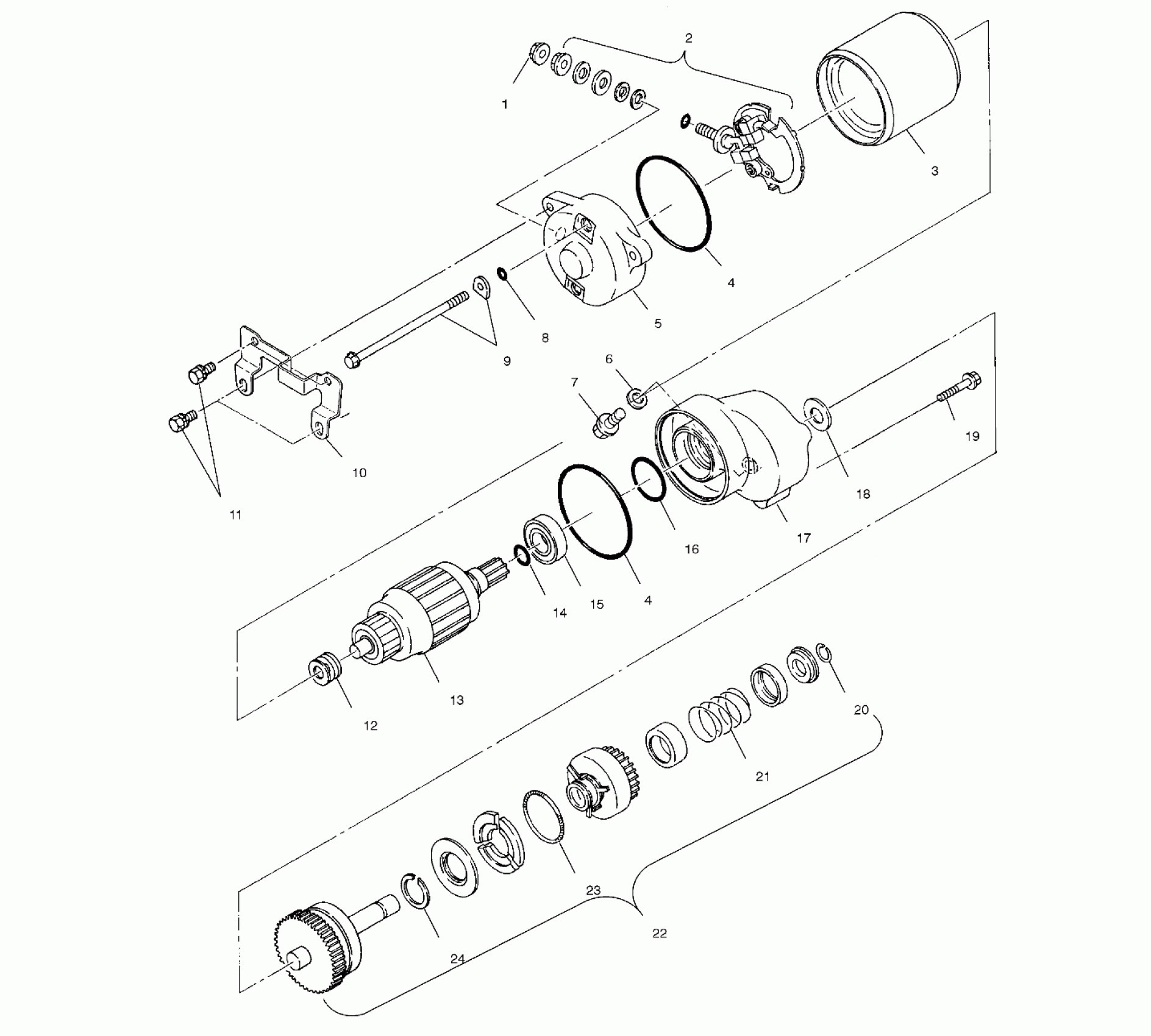

Polaris TRAIL BLAZER - A02BA25CA/CD STARTING MOTOR - A02BA25CA/CB/CD (4969896989C10) Diagram

#

Description
Price

1

NUT, FLANGE

3083649

$3.99

2

Brush

3084406

Unavailable

3

Asm., Starter (Incl. 1,2,4,5,8,9,12-17) (Incl. 1,2,4,5,8,9,12-17)

3085393

Unavailable

3

Asm., Starting Motor (Incl. 1-5,8,9,12-18,20-24) (Incl. 1-5,8,9,12-18,20-24)

3087043

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

Cover, Rear

3085032

$82.39

6

Gasket, Aluminum

3082758

$1.19

7

Bolt, Flange

3086782

Unavailable

8

O-RING

3084408

Unavailable

9

Bolt

3084407

Unavailable

10

Bracket

3083650

Unavailable

11

Bolt and Washer

3081665

$3.19

12

Washer Set

3083754

$2.39

13

Asm., Armature (Incl. 14,15) (Incl. 14,15)

3084404

$207.99

14

O-Ring

3083934

Unavailable

15

Bearing, Ball

3083777

$31.99

16

O-Ring

3083741

$9.37

17

Front Cover (Incl. 16) (Incl. 16)

3085305

$123.02

18

Washer, Gear Shaft

3083737

Unavailable

19

Bolt and Washer

3082038

$3.99

20

CLIP

3084409

$7.19

21

SPRING, RETURN

3084410

$2.47

22

Asm., Gear Shaft (Incl. 18,20,21,23,24) (Incl. 18,20,21,23,24)

3087030

Unavailable

23

SPRING, WEIGHT

3084411

$15.67

24

CLIP

3084412

$9.59
