Description

Price

1

Spring, Spiral

3083815

$45.59

2

Starter Case B

3083911

$271.99

2

Recoil Starter (Incl. 1,2,5-11,18-26) (Incl. 1,2,5-11,18-26)

3083924

Unavailable

3

Bolt and Washer

3082030

$3.97

4

Bolt and Washer

3082228

Unavailable

5

Grommet

3083817

Unavailable

6

Reel

3083814

$97.13

7

Bolt, Flange

3083826

Unavailable

8

Starter Case

3083914

Unavailable

9

Recoil Rope

2870621

Unavailable

9

Asm., Rope (Incl. 9-11) (Incl. 9-11)

3083828

Unavailable

10

Cap, Knob

3083660

Unavailable

11

Starter Knob

3083659

Unavailable

12

Bolt and Washer

3083729

$3.49

13

BUSHING, STARTER

3083669

Unavailable

14

PLUG

3086749

Unavailable

15

GASKET

3082956

$4.84

16

Pulley, Starting

3083915

Unavailable

17

Bolt and Washer

3081665

$3.19

18

Spring, Return

3083827

$11.59

19

Ratchet

3083819

Unavailable

20

Pin, Ratchet

3083820

Unavailable

21

Hook, Spring

3083818

$39.99

22

Guide, Ratchet

3083821

Unavailable

23

Spring, Friction

3083912

$25.59

24

Case, Spring

3083925

Unavailable

25

Screw and Washer

3084176

Unavailable

26

Guide

3083913

Unavailable

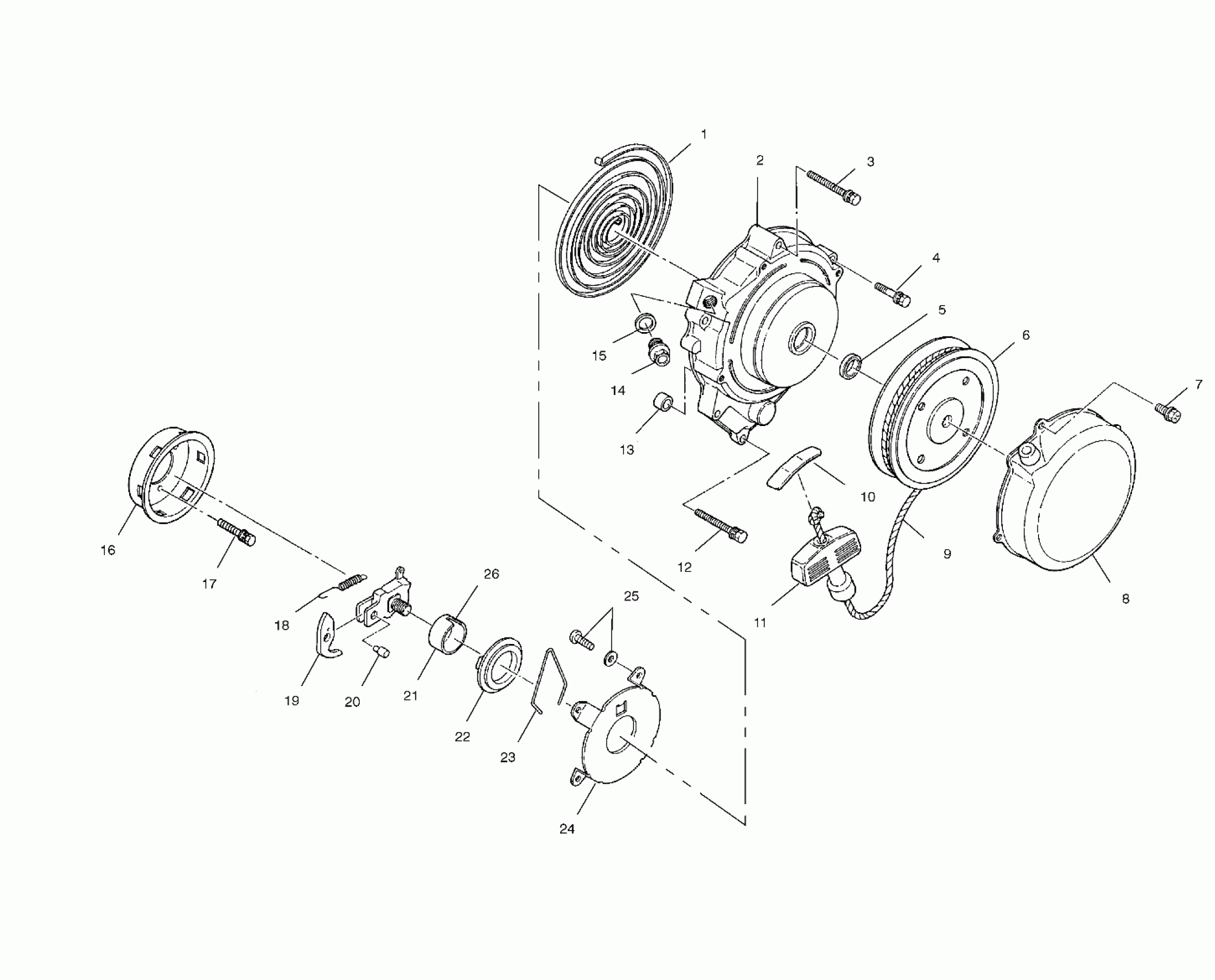

Polaris TRAIL BLAZER - A02BA25CA/CD RECOIL STARTER - A02BA25CA/CB/CD (4969896989C11) Diagram

Spring, Spiral

Starter Case B

Recoil Starter (Incl. 1,2,5-11,18-26) (Incl. 1,2,5-11,18-26)

Bolt and Washer

Bolt and Washer

Grommet

Reel

Bolt, Flange

Starter Case

Recoil Rope

Asm., Rope (Incl. 9-11) (Incl. 9-11)

Cap, Knob

Starter Knob

Bolt and Washer

BUSHING, STARTER

PLUG

GASKET

Pulley, Starting

Bolt and Washer

Spring, Return

Ratchet

Pin, Ratchet

Hook, Spring

Guide, Ratchet

Spring, Friction

Case, Spring

Screw and Washer

Guide
