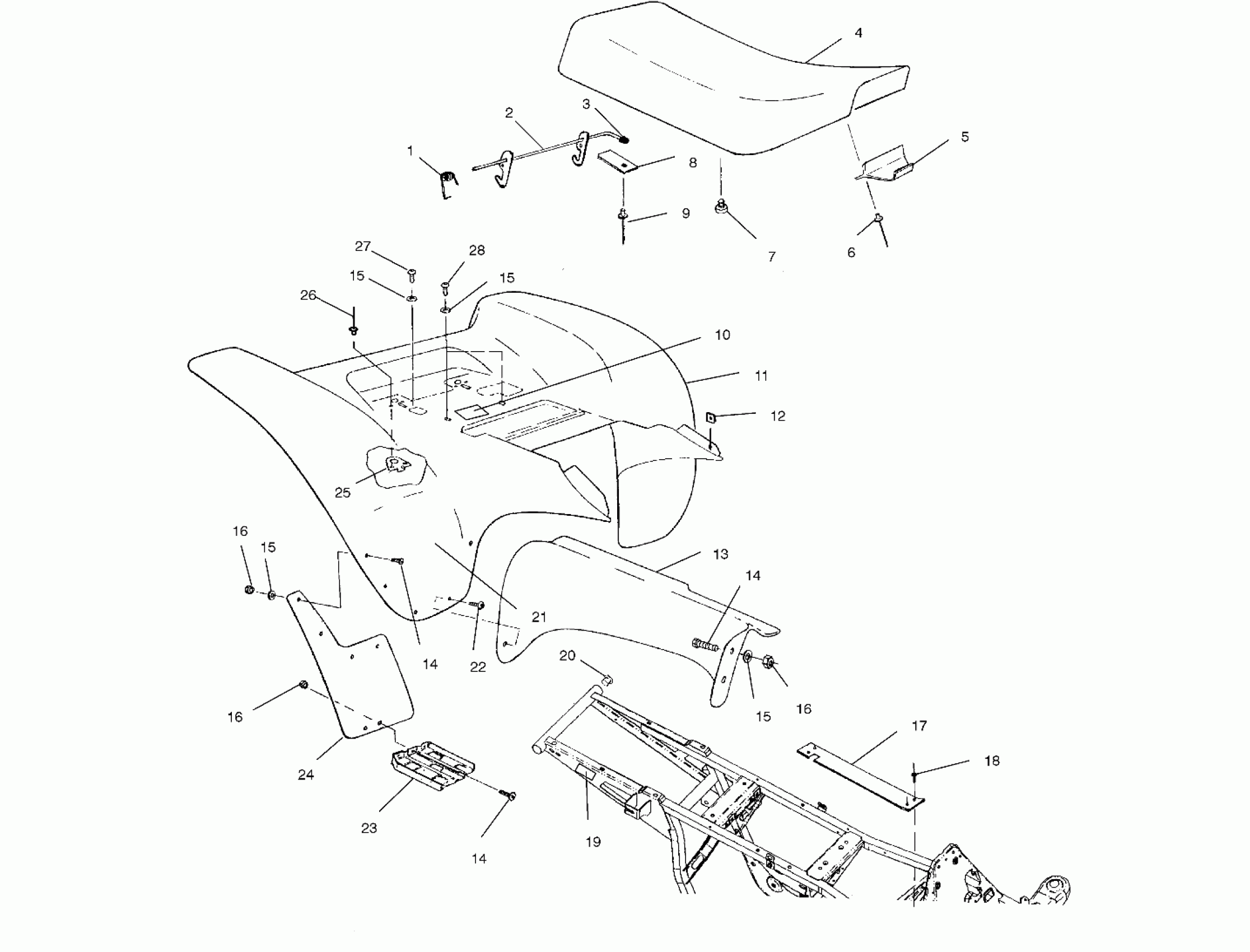

Polaris TRAIL BLAZER - A02BA25CA/CD REAR CAB - A02BA25CA/CB/CD (4969896989A04) Diagram

#

Description
Price

1

Spring, Latch

7041607

Unavailable

2

Latch, Seat

1040412-067

Unavailable

3

Cap, Seat Latch

5411392

Unavailable

4

Covering, Seat, Yellow [CA]

2681769-053

Unavailable

4

Asm., Seat, Yellow [CA](CD)

2682430-053

Unavailable

4

Asm., Seat [CB]

2683097

Unavailable

4

Covering, Seat [CB]

2683098

Unavailable

5

Tongue, Seat

5431986

$10.51

6

RIVET

7621479

$1.98

7

BUMPER-RUBBER

5412067

$3.97

8

BRACKET, LEVER RETAINER

5211033

$34.99

9

RIVET

7621403

$1.19

10

Decal, Carb/Filter Information

7079901

Unavailable

11

Cab, Rear, Blue [CB](CD)

5434014-341

Unavailable

11

Cab, Rear, White [CA]

5434014-133

Unavailable

12

Nut, U-Type Speed [CB]

7670057

$1.19

13

Foil

5811230

Unavailable

13

Asm., Muffler Shield

2632280

Unavailable

14

Bolt

7512282

Unavailable

14

Bolt

7512282

Unavailable

14

Bolt

7512282

Unavailable

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

17

Guard, Clutch

5241403-067

$5.71

18

RIVET-3/16-.090-.290

7661637

$1.19

19

DECAL-REFLECT.2.88,RED

7079925

$8.08

20

Plug, End Cap, Ribbed

5432831

$5.65

21

Foil, Rear Cab

5810957

Unavailable

21

Foil, Rear Cab, Small

5810991

Unavailable

22

Screw

7517916

$6.35

23

FOOTPAD [See Front Cab Pg. A3, Ref. 24]

----

Unavailable

24

Mudflap, Rear, RH

5850148

Unavailable

24

Mudflap, Rear, LH

5812134

Unavailable

25

Bracket, Rear Seat Holddown

5220880

Unavailable

26

RIVET

7621472

$1.49

27

SCREW

7512232

$1.19

28

SCREW

7512242

$2.38
