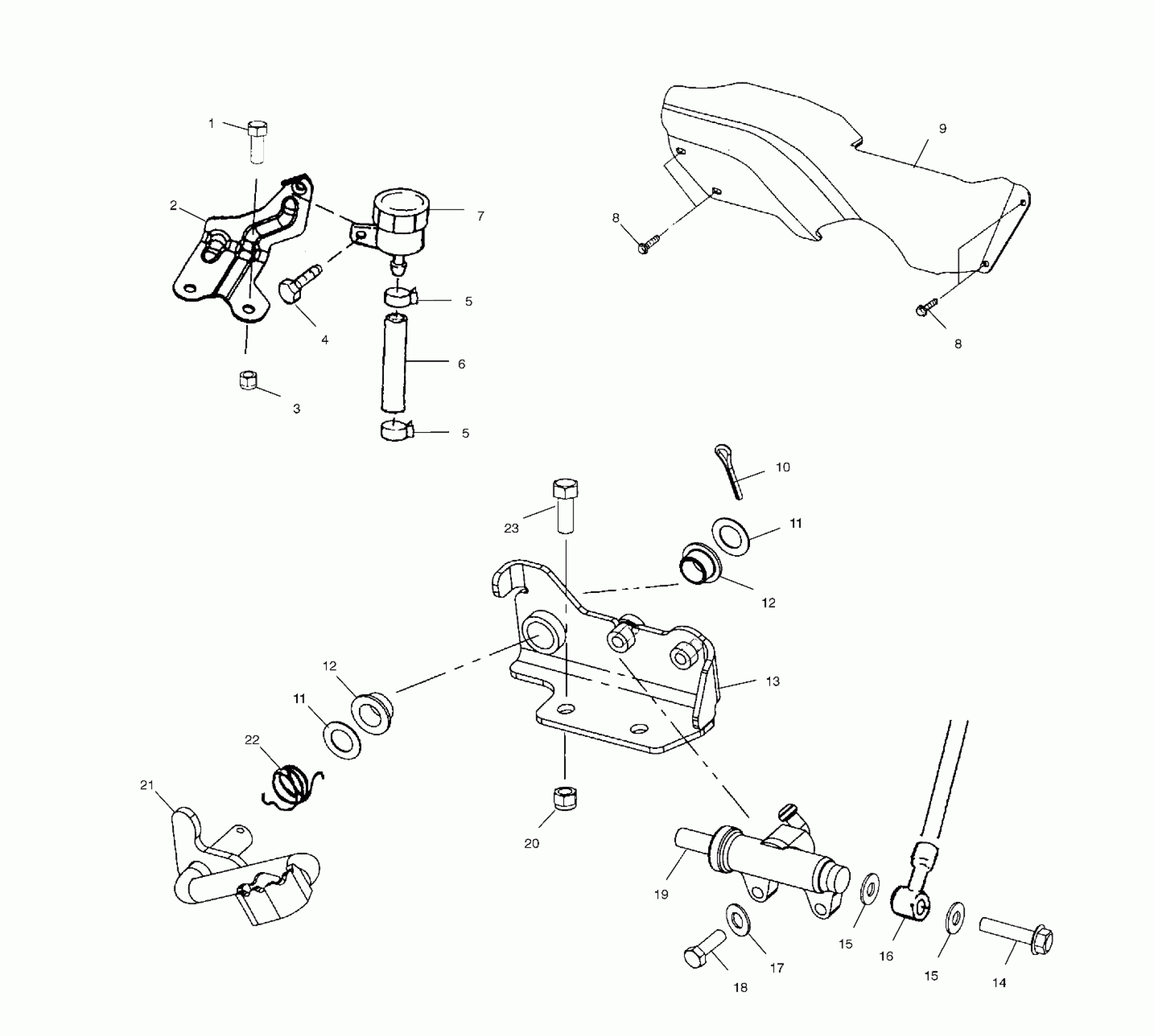

Polaris TRAIL BLAZER - A02BA25CA/CD REAR BRAKE MASTER CYLINDER - A02BA25CA/CB/CD (4969896989B04) Diagram

#

Description
Price

1

Bolt

7512113

$3.97

2

Bracket, Reservoir Mount

5244091-067

$5.71

3

Nut, Nylok

7542122

$1.19

4

Screw

7512208

$2.74

5

HOSE CLAMP, RED

7080003

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

6

Hose, Reservoir

1910404

Unavailable

7

Reservoir

1930854

$36.41

8

Screw

7517916

$6.35

8

Screw

7517916

$6.35

9

Guard, Prop Shaft, Side

5433457

$94.44

10

PIN, COTTER

7661401

$0.79

11

WASHER

7555919

$4.99

11

WASHER

7555919

$4.99

12

BUSHING-PEDAL PIVOT

5431107

$8.73

12

BUSHING-PEDAL PIVOT

5431107

$8.73

13

Mount, Brake

1910375-067

Unavailable

14

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

15

Seal

5410988

$4.84

15

Seal

5410988

$4.84

16

LINE, FOOT BRAKE, REAR (See Rear Caliper Mounting Pg. B1, Ref. 6)

----

Unavailable

17

WASHER, SPRING LOCK

7552801

$1.59

18

Screw

7515179

$2.38

19

Asm., Foot Brake Master Cylinder

1910311

$174.03

20

NUT-5/16-18 NYLOK-Y

7542324

$0.79

21

Rod, Brake

1910377-067

Unavailable

22

SPRING-TORSION,BRAKE

7041750

$8.89

23

Screw

7515321

Unavailable
