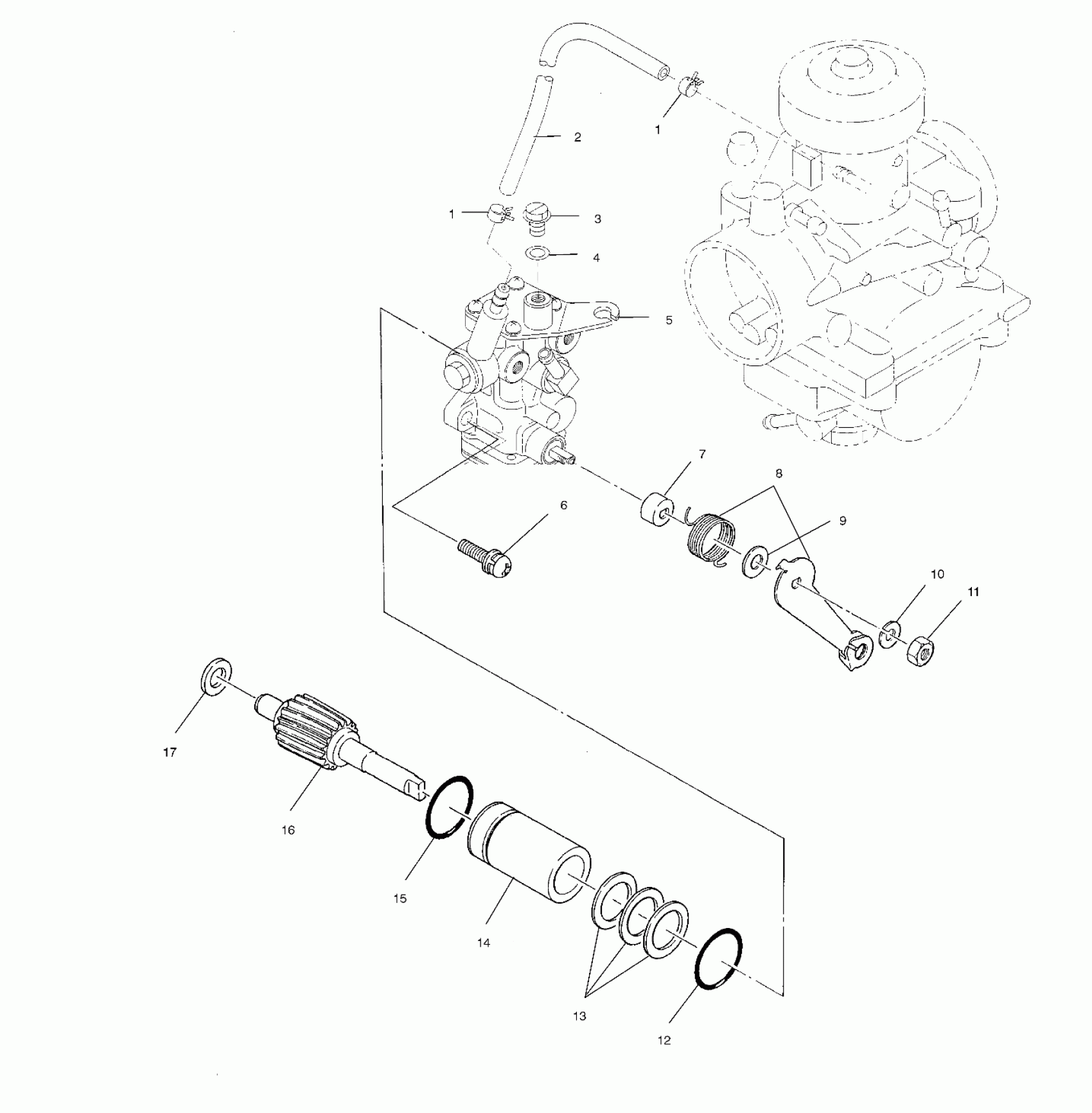

Polaris TRAIL BLAZER - A02BA25CA/CD OIL PUMP - A02BA25CA/CB/CD (4969896989C12) Diagram

#

Description
Price

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

2

Pipe, Vinyl

3087047

Unavailable

3

Screw, Air Vent

3083125

Unavailable

4

Packing

3083126

$4.03

5

Asm., Oil Pump (Incl. 3,4,7-12) (Incl. 3,4,7-12)

3087044

Unavailable

6

Screw and Washer

3086778

Unavailable

7

Cap

3083758

$5.75

8

Lever & Spring Set

3086844

$70.39

8

Lever, Control

3086845

$69.84

9

Collar, Camshaft

3083757

$4.39

10

Washer, Spring

3083121

$299.99

11

Nut

3083120

$3.19

12

O-Ring

3083127

Unavailable

13

Spacer 3 (.6mm) (.6mm)

3083673

Unavailable

13

Spacer 2 (.3mm) (.3mm)

3083672

Unavailable

13

Spacer 1 (.15mm) (.15mm)

3083671

Unavailable

14

Bushing, Oil Pump

3083353

$31.99

15

O-Ring

3083129

Unavailable

16

Gear, Small

3083429

Unavailable

17

Spacer

3083428

$1.59
