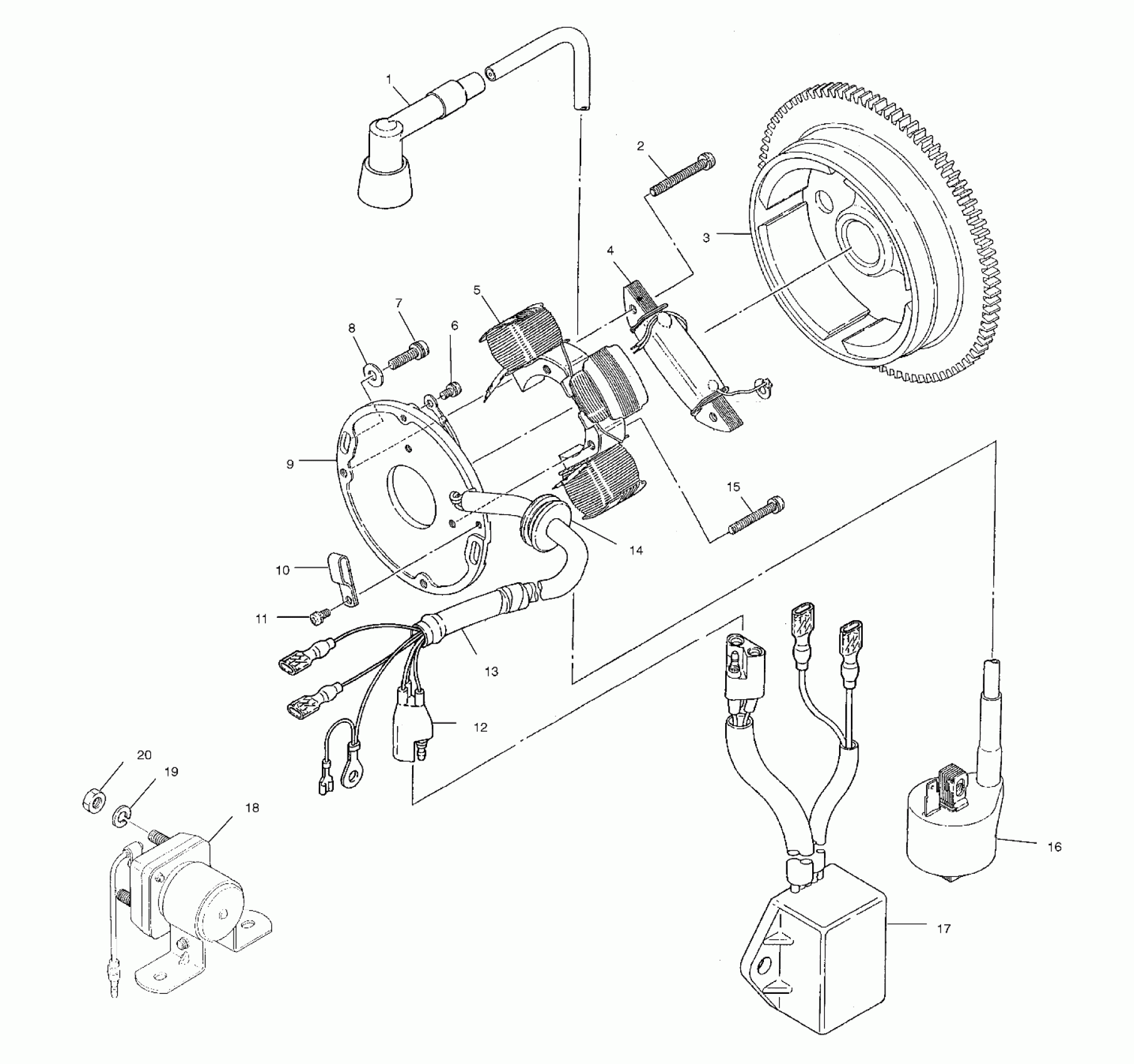

Polaris TRAIL BLAZER - A02BA25CA/CD MAGNETO - A02BA25CA/CB/CD (4969896989C09) Diagram

#

Description
Price

1

Cap, Spark Plug

4020129

$9.70

2

Screw and Washer

3083423

$3.19

3

Flywheel w/Ring Gear

3083939

$504.99

4

Coil, Exciting

3083422

Unavailable

5

Stator 1

3083976

Unavailable

6

Screw and Washer

3081256

$3.19

7

Screw and Washer

3086788

Unavailable

8

Washer

3086789

$2.38

9

Plate, Coil

3083634

$74.39

9

Asm., Plate (Incl. 2,4,5,6,9-15) (Incl. 2,4,5,6,9-15)

3083979

Unavailable

10

Clamp

3081296

Unavailable

11

Screw and Washer

3081260

$3.19

12

Coupler, 3P

3083909

$23.99

13

Harness, Wire (Incl. 12,14) (Incl. 12,14)

3083978

$123.99

14

Grommet

3083773

Unavailable

15

Screw and Washer

3083736

$1.49

16

Ignition Coil

3083923

Unavailable

17

C.D.I. System

3083977

Unavailable

18

Magnetic Switch

3085521

$60.70

19

Washer, Spring Lock

3080077

$2.39

20

Nut

3083073

$2.39
