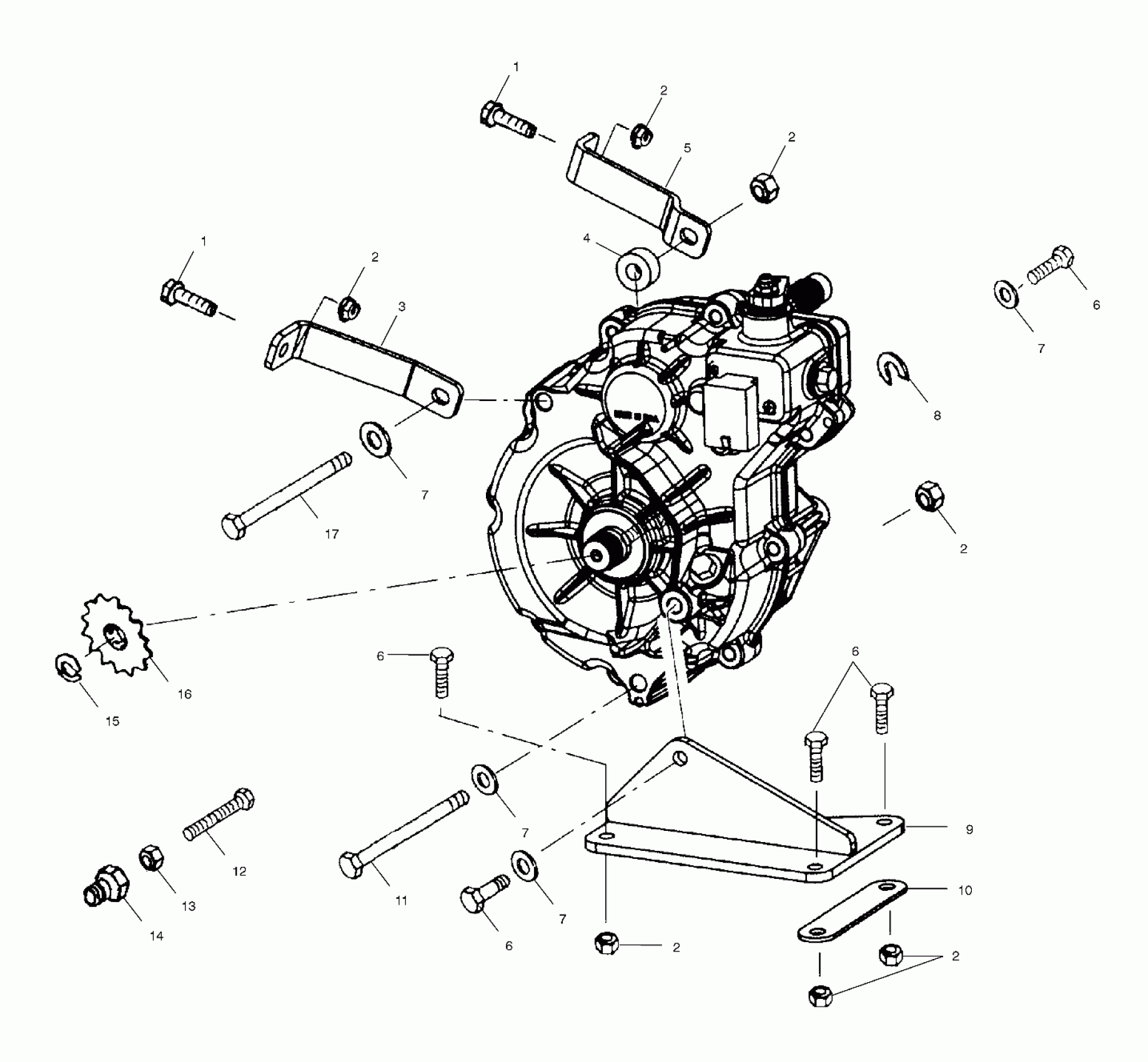

Polaris TRAIL BLAZER - A02BA25CA/CD GEARCASE MOUNTING - A02BA25CA/CB/CD (4969896989C04) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

2

Nut, Flange

7547089

$4.79

3

Bracket, Transmission Mount

5242456-067

Unavailable

4

Spacer

5333048

$18.23

5

Bracket, Transmission Mount

5243175-067

Unavailable

6

Screw

7512492

$1.49

6

Screw

7512492

$1.49

6

Screw

7512492

$1.49

6

Screw

7512492

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

8

Shim (.020) (.020)

5210764

Unavailable

8

Shim (.010) (.010)

5211065

Unavailable

8

Shim (.030) (.030)

5211517

Unavailable

9

Mount, Transmission

1012886-067

Unavailable

10

Spacer

5243296-067

$5.91

11

SCREW

7517646

$7.19

12

Screw

7517631

$5.59

13

Nut

7542440

Unavailable

14

PLUG, DRAIN (See Gearcase Pg. C6, Ref. 36)

-------

Unavailable

15

RING, RETAINING

7710434

$3.99

16

Sprocket, 11T

3221043

$39.99

17

Screw

7517647

$3.03
