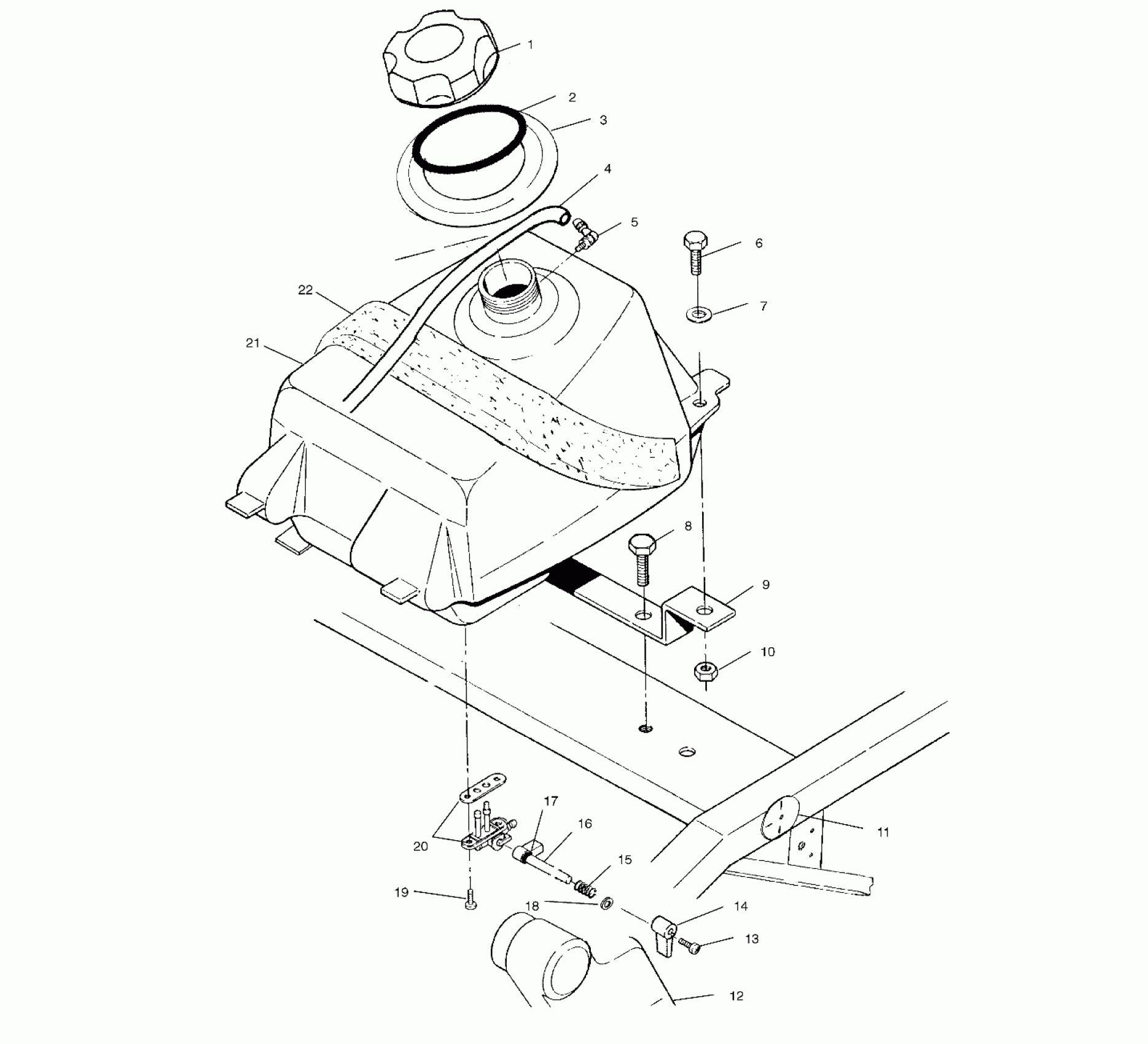

Polaris TRAIL BLAZER - A02BA25CA/CD FUEL TANK - A02BA25CA/CB/CD (4969896989A10) Diagram

#

Description
Price

1

Cap, Gas Tank (Incl. 2) (Incl. 2)

5433687

$20.22

2

GASKET

5812123

$5.65

3

Grommet, Fuel Tank

5410842

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7512310

$2.39

7

Washer, Flat

7555734

$1.49

8

Screw

7512208

$3.99

9

Bracket, Tank Mount, Rear

5220916-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Decal, Fuel Lever

7074637

Unavailable

12

DUCT, INLET DOWN (See Clutch Cover Pg. C2, Ref. 16)

-------

Unavailable

13

Screw

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

Spring, Lever, Compression

7041209

$7.19

16

Extension, Fuel Lever

5431391

$7.19

17

Grommet

5432291

$2.39

18

Washer, Flat

7555726

$1.59

19

Screw

7515136

$1.49

20

Asm., Fuel Valve (Incl. Gasket) (Incl. Gasket)

7051006

$51.99

20

Gasket, Fuel Valve

5810859

$6.39

21

Asm., Tank, Fuel (Incl. 5,19,20) (Incl. 5,19,20)

2520241

Unavailable

22

Foam, Seal

5811527

Unavailable
