- TRAIL BLAZER - A02BA25CA/CD
ENGINE MOUNTING - A02BA25CA/CB/CD (4969896989A07)

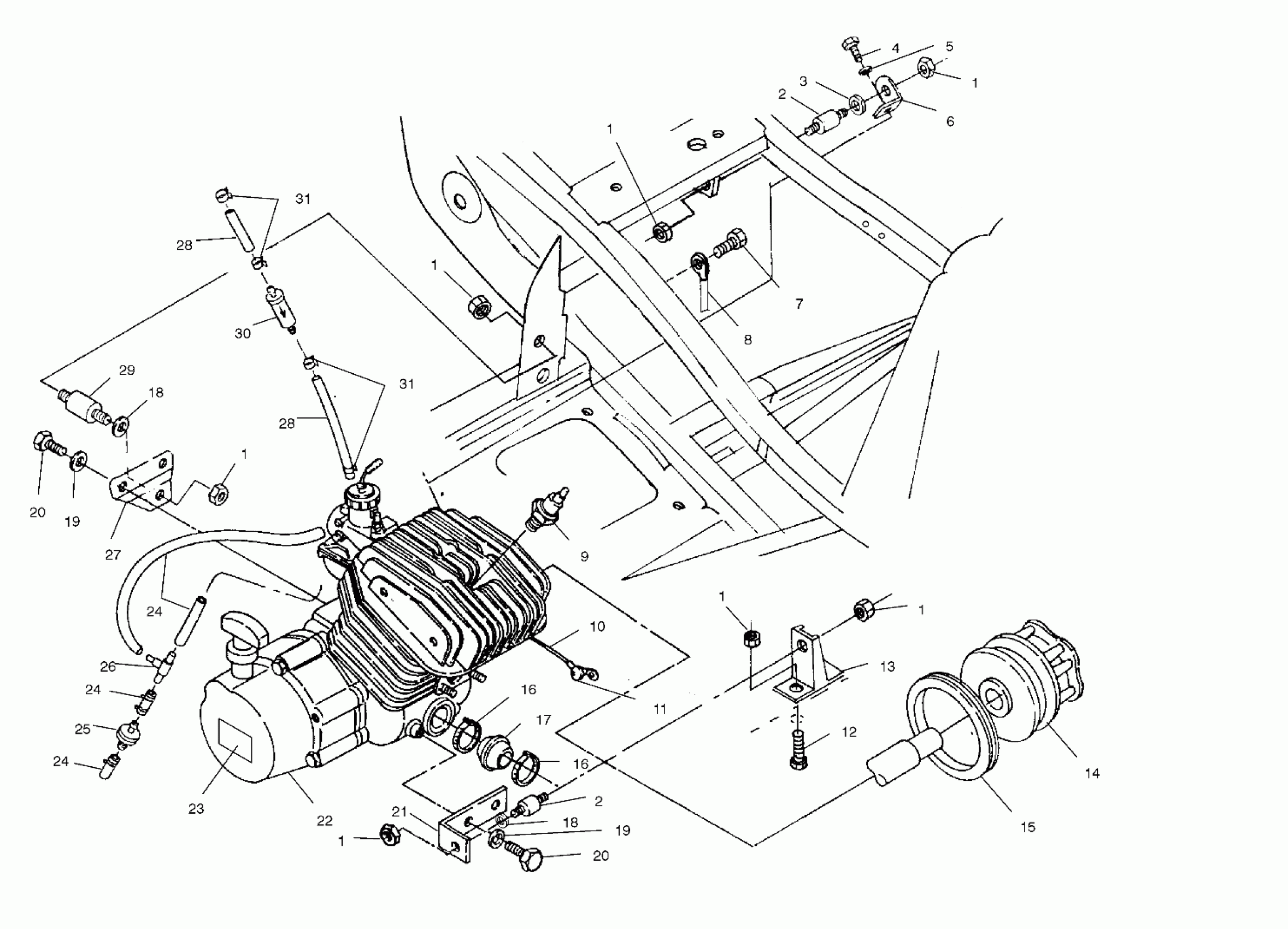

Polaris TRAIL BLAZER - A02BA25CA/CD ENGINE MOUNTING - A02BA25CA/CB/CD (4969896989A07) Diagram
#
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
1
NUT
7547108
$4.79
2
Mount, Motor
3110026
Unavailable
2
Mount, Motor
3110026
Unavailable
3
Insulator, Motor Mount
5430802
$27.99
4
BOLT
7512315
$4.79
5
WASHER, SPRING LOCK
7552901
$1.49
6
Bracket, Engine Mount, Top
5244119-067
Unavailable
7
SCREW
7512232
$1.49
8
Cable, Ground, Engine, Small Hole
4010132
Unavailable
9
Spark Plug, NGK BR8ES
3070156
$3.99
10
Cable, Solenoid/Starter
4010129
Unavailable
11
INSULATOR-CABLE
5410346
$6.39
12
Screw
7515481
$2.63
13
Mount, Engine, Front
1040687-067
$15.56
14
ASM., DRIVE CLUTCH, BASIC ATV-08 (See Drive Clutch Pg. B9, Ref. 20)
-------
Unavailable
15
SEAL, COVER, CASE (See Clutch Cover Pg. C2, Ref. 26)
-------
Unavailable
16
Clamp
7080511
$4.79
16
Clamp
7080511
$4.79
17
Boot, Clutch Intake
5410421
$11.19
18
WASHER, FLAT
7555823
Unavailable
18
WASHER, FLAT
7555823
Unavailable
19
Washer, Spring Lock
7552603
$1.49
19
Washer, Spring Lock
7552603
$1.49
20
Screw
7512490
$3.99
20
Screw
7512490
$3.99
21
Bracket, Engine Mount, Front
5242896-067
$15.56
22
Engine, Short Block (EC25PFE15) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required
3084717
Unavailable
23
Decal, Drain Recoil
7078577
Unavailable
24
LINE, FUEL
8360009-600
Unavailable
24
LINE, FUEL
8360009-600
Unavailable
24
LINE, FUEL
8360009-600
Unavailable
25
VALVE, CHECK, VENT
7051011
Unavailable
26
Fitting, Tee
7052005
Unavailable
27
Bracket, Engine Mount, Rear
5242897-067
Unavailable
28
Line, Fuel
8450003-1525
Unavailable
28
Line, Fuel
8450003-1525
Unavailable
29
Mount, Engine, Rubber
3110028
Unavailable
30
FILTER
2530009
$5.65
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
