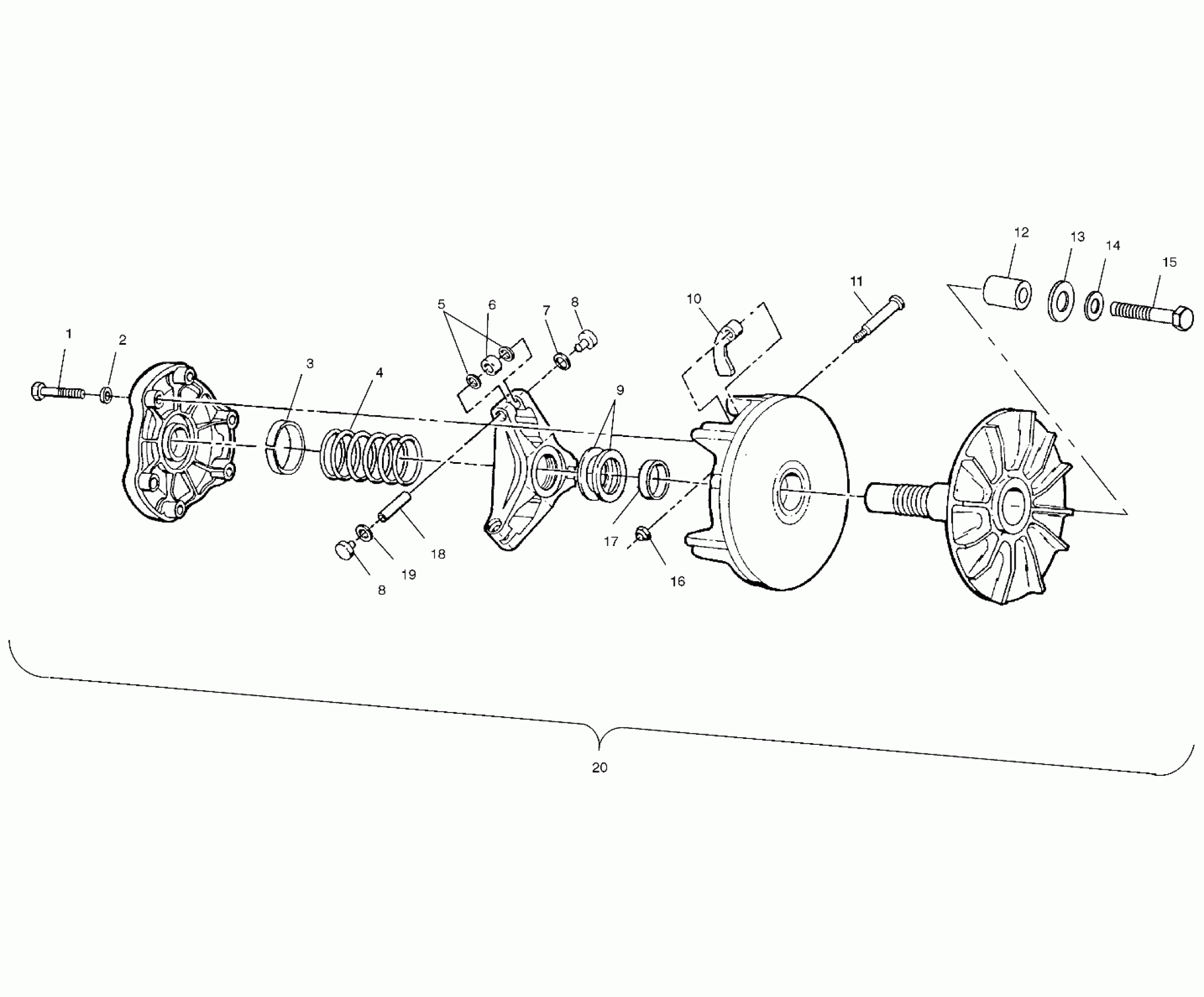

Polaris TRAIL BLAZER - A02BA25CA/CD DRIVE CLUTCH - A02BA25CA/CB/CD (4969896989B09) Diagram

#

Description
Price

1

Bolt

7512176

Unavailable

2

WASHER, SPRING LOCK

7552801

$1.59

3

Bearing, Cover

3576510

$9.59

4

SPRING, CLUTCH

7041157

$47.99

5

WASHER,MULTILUBE

5430945

$1.59

6

ASM-ROLLER AND BUSHING

1321457

$40.46

7

O-Ring

5410610

$5.59

8

Button, Guide

5430768

$10.39

8

Button, Guide

5430768

$10.39

9

Spacer (.050)

5210754

Unavailable

9

Spacer (.025)

5242981

Unavailable

9

Spacer (.020)

5210752

Unavailable

9

Spacer (.032)

5210753

Unavailable

10

Weight, Shift (G) (G)

5630514

Unavailable

11

BOLT, SHOULDER

7512266

$3.19

12

BUSHING-.437 X.770 X.50

5430261

$7.19

13

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

14

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

15

Bolt

7512457

$3.99

16

NUT, FLEXLOC

7541906

$3.19

17

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

18

Pin, Spider

5020795

$23.99

19

Washer, Rubber

5410609

$1.59

20

Asm., Drive Clutch, ATV-08 (Incl. All Less 4,10) (Incl. All Less 4,10)

1321635

Unavailable
