CRANKCASE and CYLINDER - A02BA25CA/CB/CD (4969896989C07)

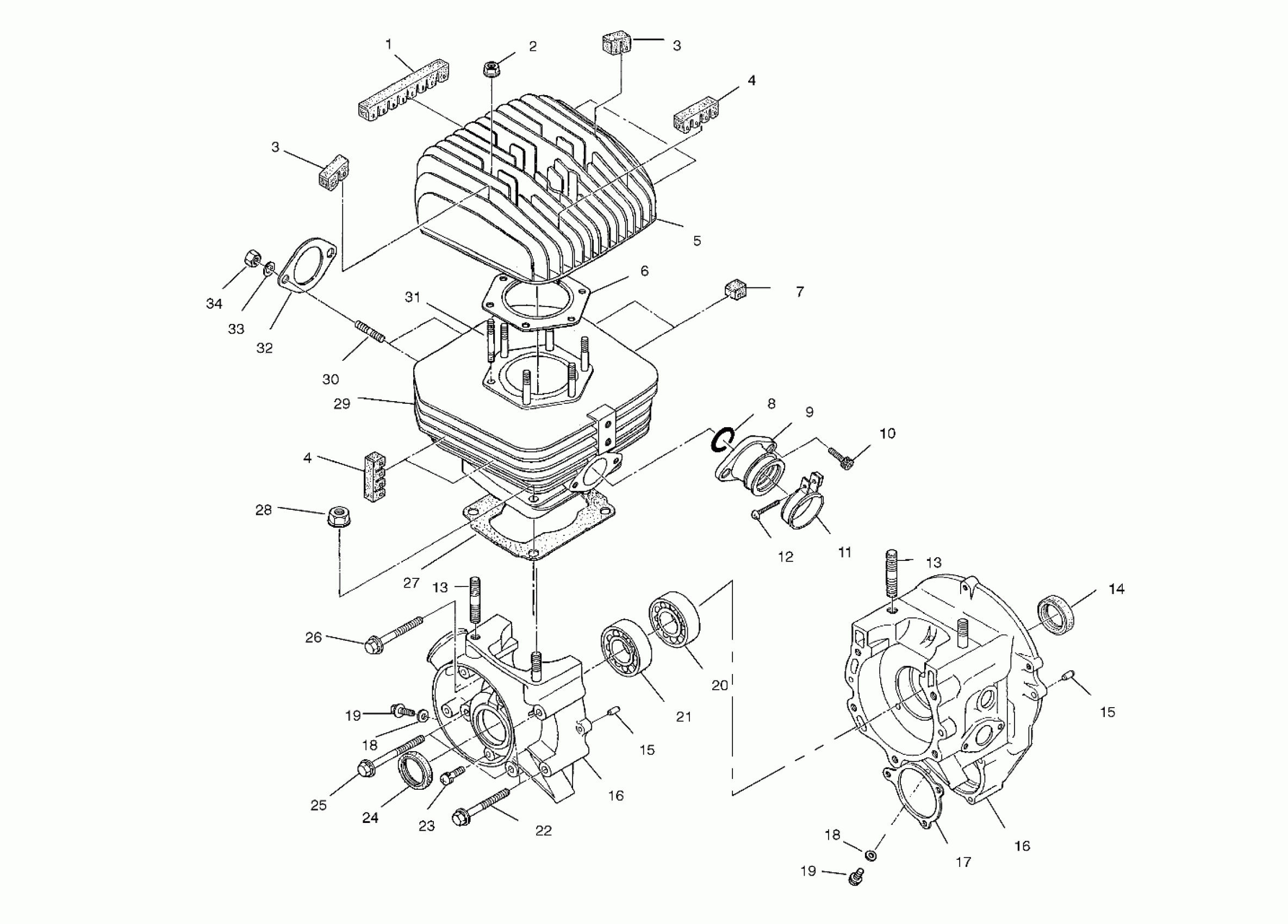

Polaris TRAIL BLAZER - A02BA25CA/CD CRANKCASE and CYLINDER - A02BA25CA/CB/CD (4969896989C07) Diagram
#
1
Fin Damper 3
3083931
Unavailable
2
NUT, FLANGE
3082910
$2.39
3
Fin Damper 4
3083932
$18.23
3
Fin Damper 4
3083932
$18.23
4
Fin Damper 1
3083929
Unavailable
4
Fin Damper 1
3083929
Unavailable
5
Head, Cylinder
3086841
Unavailable
6
Gasket
3084015
Unavailable
7
Fin Damper 2
3083930
Unavailable
8
O-Ring
3084292
Unavailable
9
Adapter (Incl. 8) (Incl. 8)
3085013
$103.99
10
Bolt, Allen
3086786
Unavailable
11
Asm., Band (Incl. 12) (Incl. 12)
3082257
Unavailable
12
Screw, Pan Head
3081497
$2.39
13
Stud
3080746
Unavailable
13
Stud
3080746
Unavailable
14
Seal, Oil
3080006
$38.60
15
Pin, Dowel
3086741
Unavailable
15
Pin, Dowel
3086741
Unavailable
16
Asm., Crankcase (Incl. 13-15,18-22,24-26) (Incl. 13-15,18-22,24-26)
3087048
$559.99
16
Asm., Crankcase (Incl. 13-15,18-22,24-26) (Incl. 13-15,18-22,24-26)
3087048
$559.99
17
Gasket, Starter
3084018
Unavailable
18
Gasket, Aluminum
3082758
$1.19
18
Gasket, Aluminum
3082758
$1.19
19
Plug
3086744
$4.79
19
Plug
3086744
$4.79
20
Bearing, Ball
3085890
Unavailable
21
Bearing, Ball
3084580
$31.99
22
Bolt and Washer
3086784
Unavailable
23
Screw and Washer
3081635
Unavailable
24
Seal, Oil (PTO) (PTO)
3084581
$28.32
25
Bolt and Washer
3083615
Unavailable
26
Bolt and Washer
3086783
Unavailable
27
Gasket, Cylinder
3084016
$40.46
28
Nut, Flange
3082911
$1.99
29
Cylinder (Incl. 30,31) (Incl. 30,31)
3087049
Unavailable
30
Stud
3085326
Unavailable
31
Stud
3080283
$12.94
32
Gasket, Exhaust
3084017
Unavailable
33
Washer
3080530
$3.19
34
Nut
3086787
Unavailable
