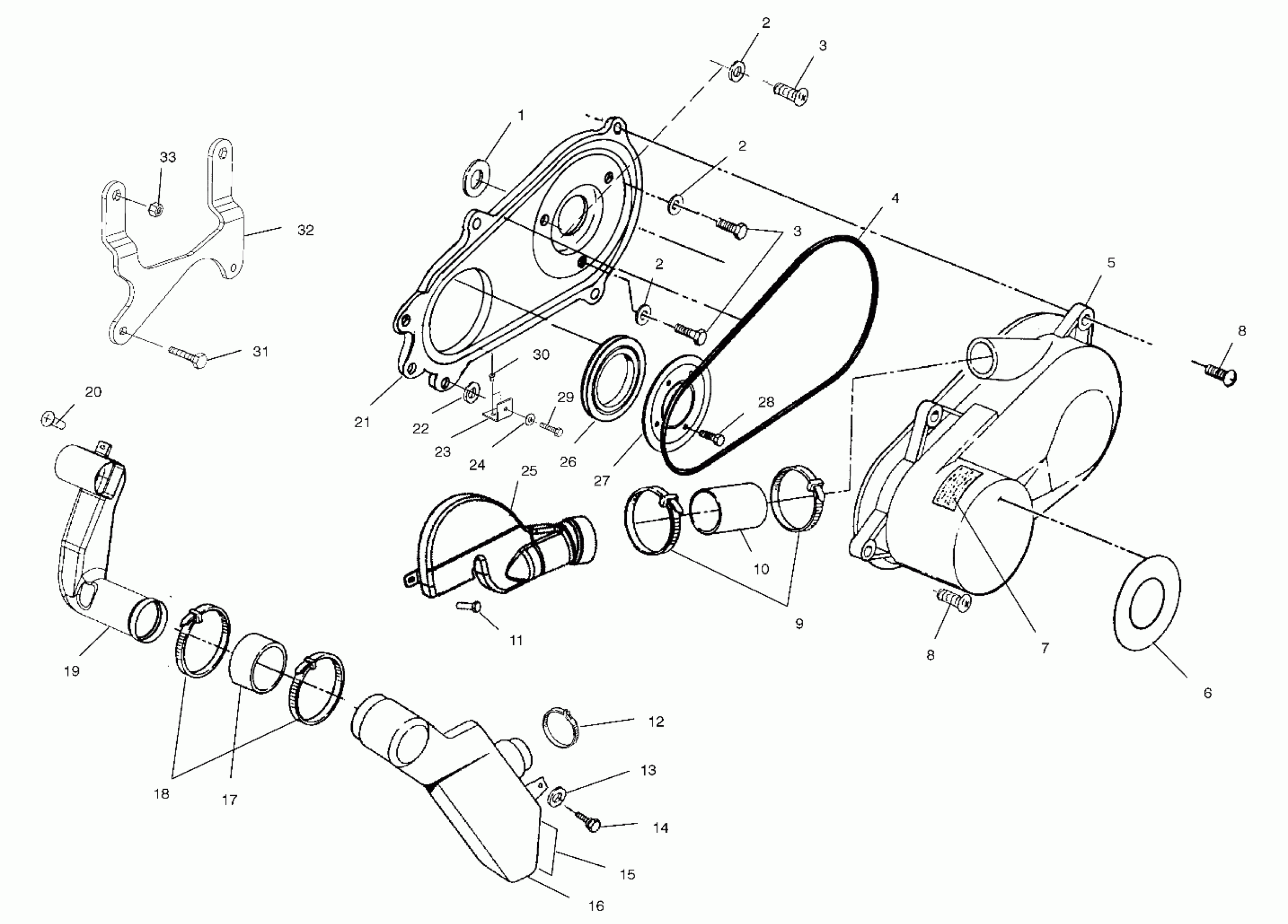

Polaris TRAIL BLAZER - A02BA25CA/CD CLUTCH COVER - A02BA25CA/CB/CD (4969896989C02) Diagram

#

Description
Price

1

Seal, Cover

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

3

Bolt and Washer

7517860

Unavailable

3

Bolt and Washer

7517860

Unavailable

4

Seal, Clutch Cover

5521301

$30.88

5

Cover, Clutch, Outer

5433451-070

$178.08

6

Decal, Automatic Transmission

7074782

Unavailable

7

Decal, Warning, Clutch Cover

7078689

Unavailable

8

SCREW

7512094

$1.59

8

SCREW

7512094

$1.59

9

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

10

Boot, Duct

5411489

Unavailable

11

Screw

7517916

$6.39

12

Clamp

7080511

$4.79

13

Washer, Flat

7555783

$3.99

14

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

15

Tape, Foil

5811373

$2.47

16

Duct, Inlet, Clutch

5433258

$49.59

17

Boot, Air Inlet, Upper

5411822

Unavailable

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

Duct, Clutch Inlet

5433450

Unavailable

20

Screw

7512084

$1.49

21

Kit, Cover, Clutch, Inner (Incl. 4,8,26,29) (Incl. 4,8,26,29)

2200792

$294.99

22

Washer, Nylon

7555932

$2.39

23

Bracket, Clutch Cover, Front

5242693-067

Unavailable

24

Washer

7555935

$2.39

25

Duct, Clutch, Out

5434160

Unavailable

26

Seal, Cover, Case

5410749

Unavailable

27

Bracket, Retainer, Seal

5222877-067

Unavailable

28

SCREW AND WASHER (See Crankcase and Cylinder Pg. C7, Ref. 23)

-------

Unavailable

29

Screw

7512098

$1.59

30

Rivet

7661638

$1.49

31

SCREW

7512232

$1.49

32

Bracket, Clutch Cover

5242208-067

Unavailable

33

NUT

7547076

$2.60
