Description

Price

1

Cap

3130060

Unavailable

2

Spring, Throttle

3130354

$28.32

3

Plate, Throttle

3130002

$20.22

4

Needle, Jet (5DP7-2) (5DP7-2)

3130356

$24.27

5

Washer

3130355

$7.19

6

Valve, Throttle (2.0) (2.0)

3130420

Unavailable

7

Cap, Plunger

3130359

$14.56

8

Spring, Plunger

3130006

$8.89

9

Plunger, Starter

3130328

$32.37

10

Spring, Air Adjuster

3130012

$8.89

11

Screw, Air

3130011

$19.99

12

SPRING, THROTTLE ADJUSTER

3130010

$8.89

13

Screw, Throttle Stop

3130324

$19.84

14

Jet, Pilot (#40) (#40)

3130067

$10.99

15

Washer, Jet, Main

3130014

$1.59

16

Screw and Washer

3130025

$3.19

17

BOLT, BANJO

3130321

$23.99

18

O-RING

3130239

Unavailable

19

Jet, Main (#110) (#110)

3131300

Unavailable

20

Float Chamber

3130441

$99.99

21

Float

3130021

$40.46

22

Cap

3130237

$4.03

23

Packing, Float Chamber

3130020

$16.17

24

Valve, Needle (2.5) (2.5)

3131382

$68.79

25

Arm, Float

3130018

$24.27

26

PIN, FLOAT

3130361

$8.89

27

Packing, Needle Valve

3130017

$4.03

28

Asm., Carburetor (Incl. 1-30) (Incl. 1-30)

3131381

Unavailable

29

Jet, Needle (0-4) (0-4)

3130409

$39.99

30

E-Ring

3130003

Unavailable

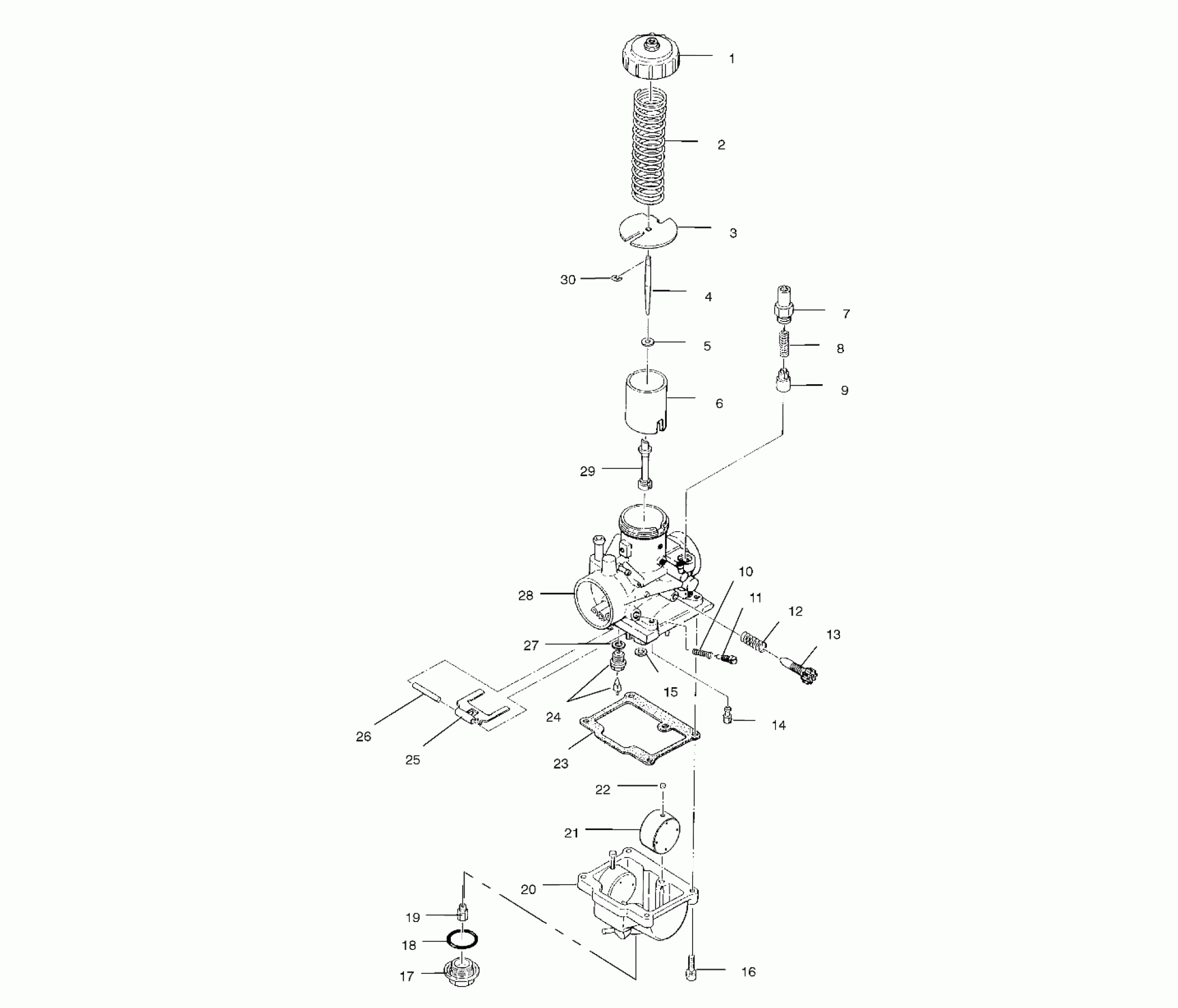

Polaris TRAIL BLAZER - A02BA25CA/CD CARBURETOR - A02BA25CA/CB/CD (4969896989C13) Diagram

Cap

Spring, Throttle

Plate, Throttle

Needle, Jet (5DP7-2) (5DP7-2)

Washer

Valve, Throttle (2.0) (2.0)

Cap, Plunger

Spring, Plunger

Plunger, Starter

Spring, Air Adjuster

Screw, Air

SPRING, THROTTLE ADJUSTER

Screw, Throttle Stop

Jet, Pilot (#40) (#40)

Washer, Jet, Main

Screw and Washer

BOLT, BANJO

O-RING

Jet, Main (#110) (#110)

Float Chamber

Float

Cap

Packing, Float Chamber

Valve, Needle (2.5) (2.5)

Arm, Float

PIN, FLOAT

Packing, Needle Valve

Asm., Carburetor (Incl. 1-30) (Incl. 1-30)

Jet, Needle (0-4) (0-4)

E-Ring
