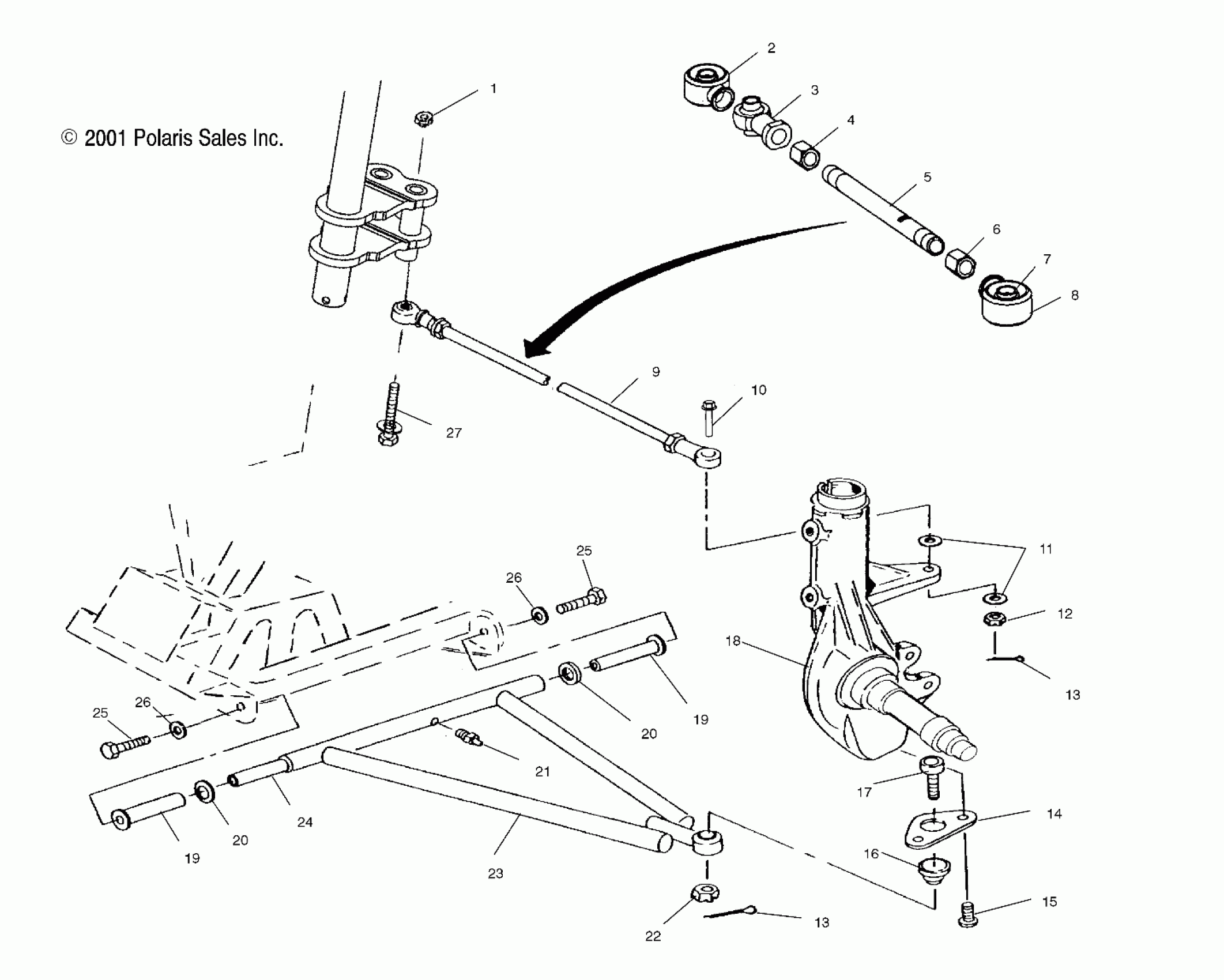

Polaris TRAIL BLAZER - A02BA25CA/CD A-ARM/STRUT MOUNTING - A02BA25CA/CB/CD (4969896989B05) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Boot, Seal, Rod End

5411291

Unavailable

3

Rod End, RH

7061034

$54.04

4

Nut

7542711

$2.39

5

Tie Rod

5020927

$39.99

6

Nut, LH

7547028

$2.39

7

Boot, Seal

5411920

Unavailable

8

Rod End, LH

7061054

Unavailable

9

Asm., Tie Rod (Incl. 3-8) (Incl. 3-8)

1820806

Unavailable

10

Bolt

7517909

$5.59

11

Washer, Flat

7556099

$1.59

12

Nut

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

Bracket, Ball Joint

5240717

Unavailable

15

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

16

Boot, Rubber

5410548

Unavailable

17

JOINT, Bolt

7080927

$76.89

18

SUPPORT, STRUT AND SPINDLE (See Strut Pg. A13, Ref. 16)

-------

Unavailable

19

Bushing, A-Arm Long

5433066

$5.01

19

Bushing, A-Arm Long

5433066

$5.01

20

Bushing

5020677

$10.39

20

Bushing

5020677

$10.39

21

Fitting, Lubrication

7080433

$1.49

22

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

23

Kit, A-Frame, LH

2201601

Unavailable

23

Kit, A-Frame, RH

2201602

Unavailable

24

Shaft, A-Arm

5020681

Unavailable

25

Screw

7512492

$1.49

25

Screw

7512492

$1.49

26

Washer, Spring Lock

7552603

$1.49

26

Washer, Spring Lock

7552603

$1.49

27

BOLT (If built after 12/03/01)

7518033

$34.99

27

Bolt (If built before 9/24/01)

7517527

$29.99

27

BOLT (If built between 9/24/01 and 12/03/01)

7517930

Unavailable
