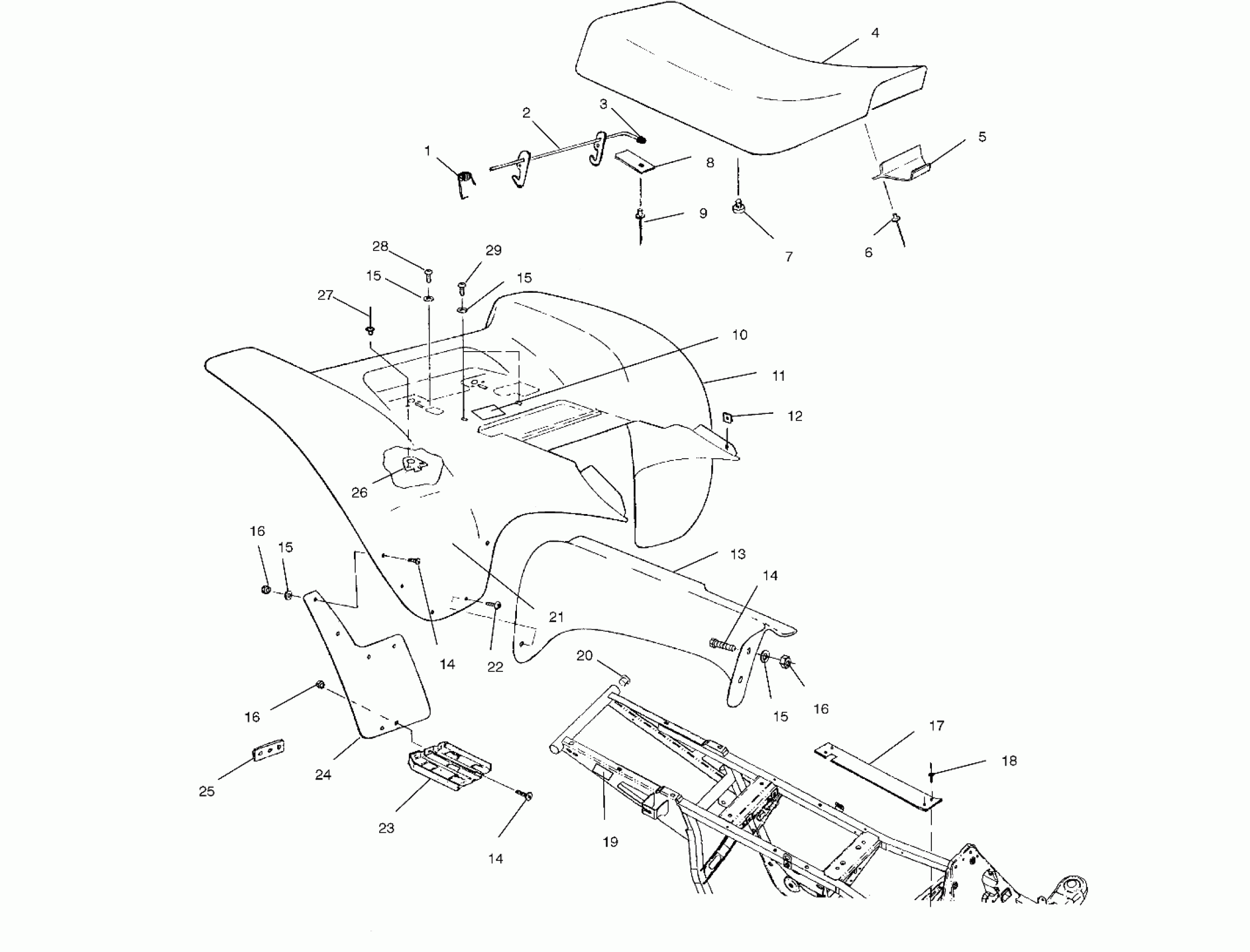

Polaris TRAIL BLAZER - A01BA25CA REAR CAB - A01BA25CA (4963666366A004) Diagram

#

Description
Price

1

SPRING,LATCH,LIGHT

7041607

Unavailable

2

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

3

CAP,SEATLATCH,GEN 3

5411392

Unavailable

4

COVER,SEAT,MED.YELLOW

2681769-053

Unavailable

4

SEAT,MED YELLOW

2682430-053

Unavailable

5

TONGUE,SEAT

5431986

$10.51

6

RIVET(50)

7621479

$1.98

7

BUMPER-RUBBER

5412067

$3.97

8

BRACKET,LEVER RETAINER

5211033

$34.99

9

BLIND RIVET(50)

7621403

$1.19

10

DECAL-2 STRK,CARB/FILTER INFO

7079901

Unavailable

11

CAB,REAR,GEN III,BR.WHITE Substituted by 5434014-133 (If built before 11/16/00)

5432820-133

Unavailable

11

CAB-REAR,GEN 3,BRIGHT WHITE (If built after 11/16/00)

5434014-133

Unavailable

12

NUT, SPEED(10)

7670057

$1.19

13

FOIL, FOAM

5811230

Unavailable

13

SHIELD MUFFLER/FOIL ASM,GEN 3

2632280

Unavailable

14

BOLT, BLACK(10)

7512282

Unavailable

14

BOLT, BLACK(10)

7512282

Unavailable

14

BOLT, BLACK(10)

7512282

Unavailable

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

15

WASHER, FLAT(10)

7555859

$1.19

16

NUT-LOCK(10)

7542122

$1.19

16

NUT-LOCK(10)

7542122

$1.19

16

NUT-LOCK(10)

7542122

$1.19

17

GUARD-CLUTCH, BLK

5241403-067

$5.71

18

RIVET,INTERLOCK,B(50)

7661638

$1.19

19

REFLECTOR ASM,RED

2670133

$5.71

20

PLUG,ENDCAP,RIBBED

5432831

$5.65

21

Foil, Rear Cab

5810957

Unavailable

21

Foil, Rear Cab, Small

5810991

Unavailable

22

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.35

22

SCREW (If built before 12/04/00)

7517264

$3.97

23

Footpad (See Front Cab Pg. A3, Ref. 25)

----

Unavailable

24

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

24

MUDFLAP-REAR,HYBRID,LH

5812134

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

26

BRKT,R.HOLDDOWN

5220880

Unavailable

27

RIVET(50)

7621472

$1.49

28

BOLT(10)

7512232

$1.19

29

SCREW(10)

7512242

$2.38
