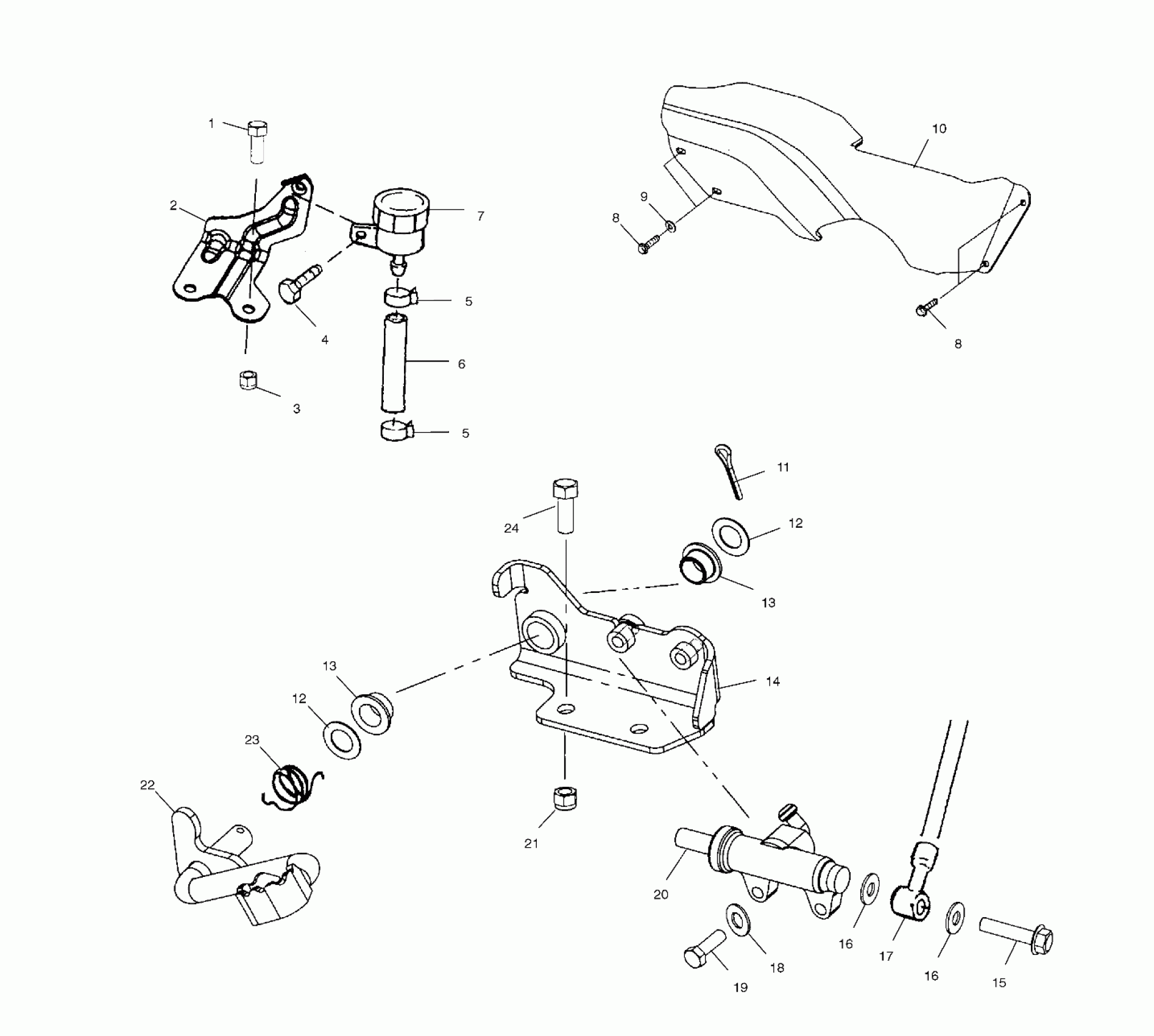

Polaris TRAIL BLAZER - A01BA25CA REAR BRAKE MASTER CYLINDER - A01BA25CA (4963666366B013) Diagram

#

Description
Price

1

SCREW(10)

7512113

$3.99

2

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

3

NUT-LOCK(10)

7542122

$1.49

4

SCREW(10)

7512208

$3.99

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

7

RESERVOIR ASM,R.BRAKE

1930854

$35.99

8

BOLT(10) (If built before 12/04/00)

7512232

$1.49

8

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

8

BOLT(10) (If built before 12/04/00)

7512232

$1.49

8

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

9

WASHER(10) (If built before 12/04/00)

7558301

$1.49

10

GUARD,PROP SHAFT,SIDE

5433457

$95.19

11

COTTER PIN(10)

7661401

$1.49

12

WASHER(10)

7555919

$4.99

12

WASHER(10)

7555919

$4.99

13

BUSHING-PEDAL PIVOT

5431107

$8.79

13

BUSHING-PEDAL PIVOT

5431107

$8.79

14

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

15

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

16

Seal

5410988

$4.84

16

Seal

5410988

$4.84

17

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B12, Ref. 6)

-------

Unavailable

18

LOCK WASHER(10)

7552801

$1.59

19

SCREW(10)

7515179

$2.39

20

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

23

SPRING-TORSION,BRAKE

7041750

$8.79

24

BOLT(10)

7515321

$1.49
