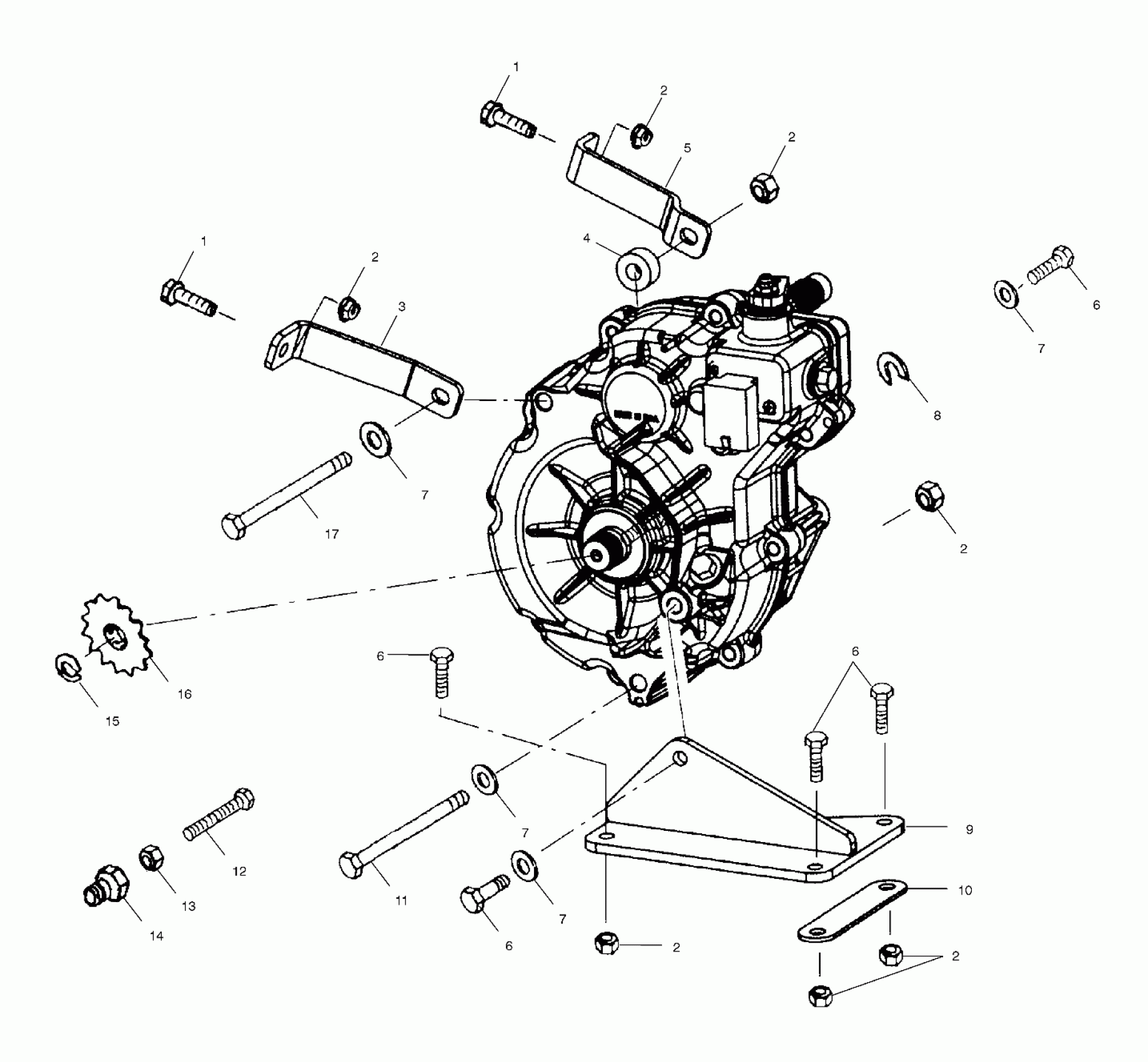

Polaris TRAIL BLAZER - A01BA25CA GEARCASE MOUNTING - A01BA25CA (4963666366C007) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

2

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

3

BRKT,X'MISSION MT,BLK

5242456-067

Unavailable

4

EXTENSION,ROLLER SPACER

5333048

$18.23

5

BRKT-TRANSMISSION MOUNT,250,BL

5243175-067

Unavailable

6

SCREW(10)

7512492

$1.49

6

SCREW(10)

7512492

$1.49

6

SCREW(10)

7512492

$1.49

6

SCREW(10)

7512492

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

8

SPACER,(10) (.020)

5210764

Unavailable

8

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

8

SHIM,(.030) (.030)

5211517

Unavailable

9

MOUNT,TRANSMISSION,2X4,BLK

1012886-067

Unavailable

10

SPACER-TRANSMISSION MNT,BLK

5243296-067

$5.91

11

SCREW

7517646

$7.19

12

Screw

7517631

$5.59

13

NUT(10)

7542440

Unavailable

14

PLUG, DRAIN (See Gearcase Pg. C6, Ref. 36)

-------

Unavailable

15

RING,SNAP(10)

7710434

$3.99

16

SPKT, 11T

3221043

$39.99

17

Screw

7517647

$3.03
