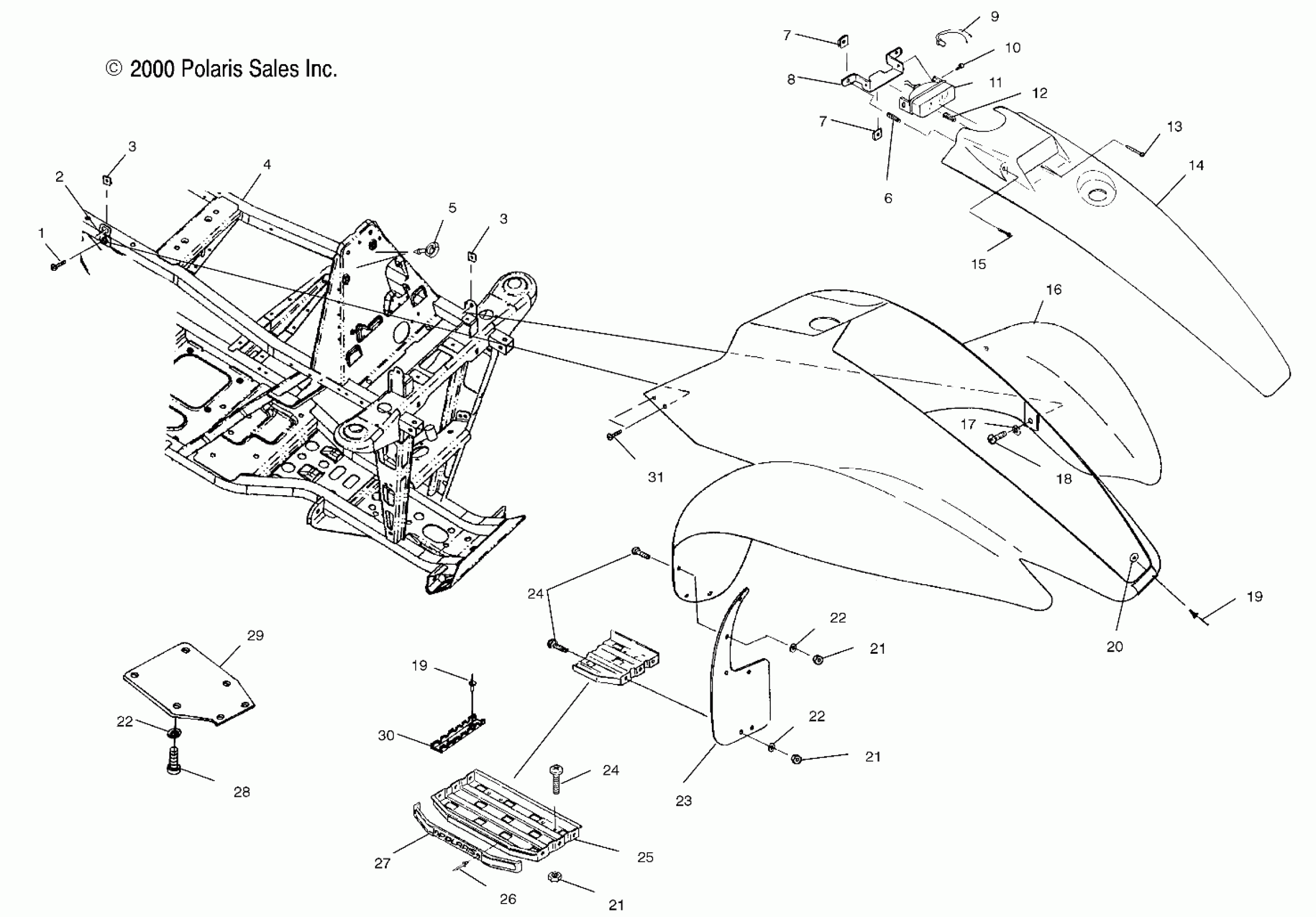

Polaris TRAIL BLAZER - A01BA25CA FRONT CAB - A01BA25CA (4963666366A003) Diagram

#

Description
Price

1

SCREW,(10)

7517386

$1.49

2

BRKT-CAB MOUNT,GEN III,LH,BLK

5244482-067

$3.81

2

BRKT-CAB MOUNT,GEN III,RH,BLK

5244483-067

$45.24

3

NUT, SPEED(10)

7670060

$3.99

3

NUT, SPEED(10)

7670060

$3.99

4

FRAME,MAIN,T.BLAZER,BLK (CA)

1013309-067

$820.65

4

MAIN FRAME,T BLAZER,BLK (CB)

1013465-067

Unavailable

5

CLIP,ROSEBUD

4020149

$6.39

6

SPRING,ADJ,(.9 IN )

4032093

$1.49

7

CLIP,RET.PALNUT Substituted by 2201028

7670095

Unavailable

7

CLIP,RET.PALNUT Substituted by 2201028

7670095

Unavailable

8

BRKT,H/L.MT,BLK Substituted by 2201028

5241436-067

$30.88

9

BULB,H/L,(BLZR/SPORT)

4030056

$24.99

10

SCREW(10)

7512084

$1.49

11

HEADLIGHT-2X5,SINGLE BEAM,55W (Incl. 9)

4010206

Unavailable

12

SPRING,ADJ,(2.5 IN)

4032094

Unavailable

13

Screw

7511886

$2.63

14

COVER,FRONT,MED.YEL.

5432179-053

Unavailable

15

SCREW,(10)

7511887

$4.79

16

CAB,FRONT,SVC,BR.WH. Substituted by 2632424-133 (w/Warning Decals)(If built before 11/13/00)

2631988-133

Unavailable

16

CAB,FR,GEN 3,SVC,WHITE (w/Warning Decals)(If built after 11/13/00)

2632424-133

Unavailable

17

WASHER(10) (If built before 12/04/00)

7558301

$1.49

18

SCR-1/4-20X3/4-TR/TX/TAP-M(10) (If built after 12/04/00)

7517916

$6.39

18

SCREW(10) (If built before 12/04/00)

7522026

$4.79

19

RIVET(50)

7621472

$1.49

19

RIVET(50)

7621472

$1.49

20

WASHER, FLAT(10)

7558201

$5.79

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

WASHER, FLAT(10)

7555859

$1.49

22

WASHER, FLAT(10)

7555859

$1.49

22

WASHER, FLAT(10)

7555859

$1.49

23

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

23

MUDFLAP-FRONT,HYBRID,LH

5811831

Unavailable

24

BOLT, BLACK(10)

7512282

$1.49

24

BOLT, BLACK(10)

7512282

$1.49

25

FOOTPAD,CDS,STEEL,BLK

1013249-067

$63.79

26

RIVET,(50)

7661825

$1.49

27

Trim, Footrest

5431484

Unavailable

28

SCREW(10)

7515179

$2.39

29

GUARD,ROCK

5432763

$87.99

30

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

31

SCREW(10)

7517685

$1.59
