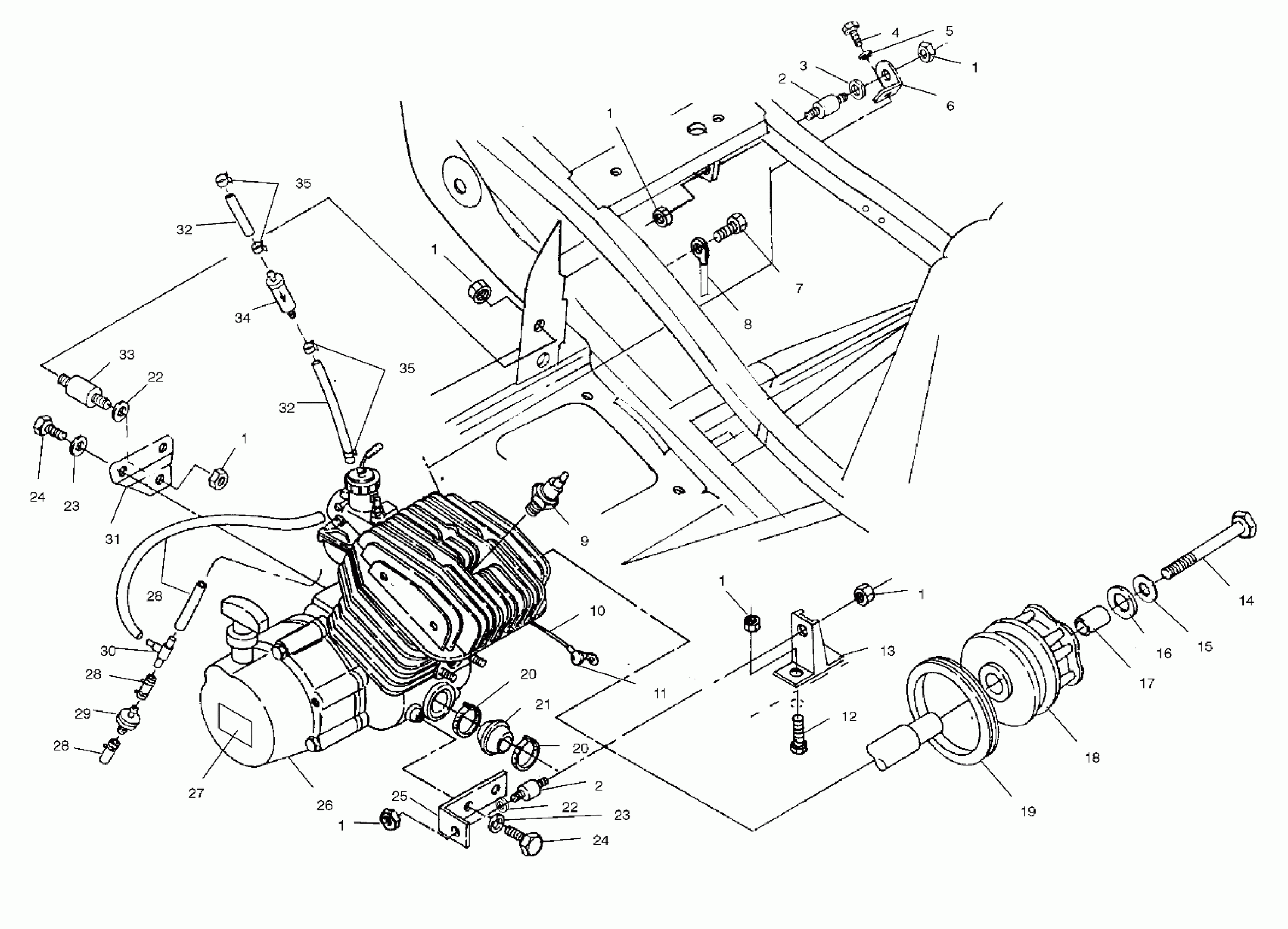

Polaris TRAIL BLAZER - A01BA25CA ENGINE MOUNTING - A01BA25CA (4963666366A007) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

MOUNT,MOTOR

3110026

Unavailable

2

MOUNT,MOTOR

3110026

Unavailable

3

INSULATOR,MOTOR MT.

5430802

$27.99

4

BOLT(10)

7512315

$4.79

5

LOCK WASHER(10)

7552901

$1.49

6

BRKT,ENGINE MOUNT,TOP,250,BLK

5244119-067

Unavailable

7

BOLT(10)

7512232

$1.49

8

CABLE,GND-ENGINE

4010132

Unavailable

9

SPARKPLUG (10)

3070156

$3.99

10

CABLE,SOL/START,DBLBOOT

4010129

Unavailable

11

INSULATOR-CABLE

5410346

$6.39

12

BOLT(10)

7512457

$3.99

13

MOUNT,FR.ENGINE,BLK.

1040687-067

$15.56

14

BOLT(10)

7512566

$30.79

15

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

BUSHING-.437 X.770 X.50

5430261

$7.19

18

Asm., Drive Clutch, Basic ATV-08 (See Drive Clutch Pg. B8, Ref. 16)

-------

Unavailable

19

Seal, Cover, Case (See Clutch Cover Pg. C3, Ref. 30)

-------

Unavailable

20

CLAMP, NARROW BAND(10)

7080511

$4.79

20

CLAMP, NARROW BAND(10)

7080511

$4.79

21

BOOT,CLUTCH INTAKE

5410421

$11.19

22

WASHER(10)

7555823

Unavailable

22

WASHER(10)

7555823

Unavailable

23

WASHER(10)

7552603

$1.49

23

WASHER(10)

7552603

$1.49

24

SCREW(10)

7512490

$3.99

24

SCREW(10)

7512490

$3.99

25

BRKT-ENGINE MOUNT,FRT,250,BLK

5242896-067

$15.56

26

ENG.(S.B.)EC25PF-SB [No Longer Available] (EC25PFE14) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior au

3084717

Unavailable

27

DECAL,DRAIN RECOIL

7078577

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

29

VENT,CHECKVALVE

7051011

Unavailable

30

Fitting, Tee

7052005

Unavailable

31

BRKT-ENGINE MOUNT,REAR,250,BLK

5242897-067

Unavailable

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

MOUNT, MOTOR

3110028

Unavailable

34

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

35

HOSE CLAMP, RED

7080003

$1.49

35

HOSE CLAMP, RED

7080003

$1.49
