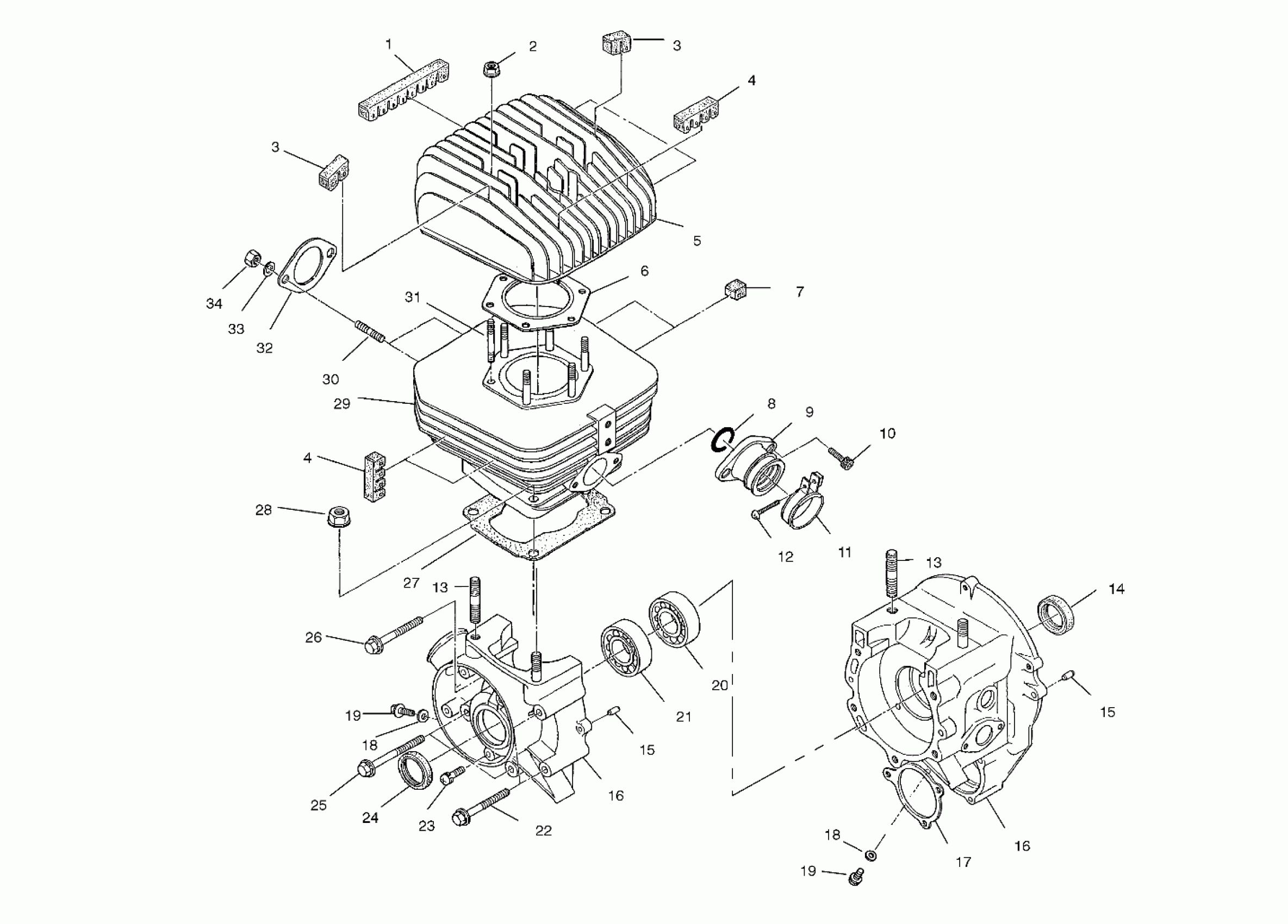

Polaris TRAIL BLAZER - A01BA25CA CRANKCASE and CYLINDER - A01BA25CA (4963666366C008) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

$2.39

3

FIN DAMPER #4

3083932

$18.23

3

FIN DAMPER #4

3083932

$18.23

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

HEAD,CYLINDER

3086841

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

7

FIN DAMPER #2

3083930

Unavailable

8

O-Ring

3084292

Unavailable

9

ADAPTER, CARB. * (Incl. 8)

3085013

$103.99

10

BOLT (SOCKET HEAD) Substituted by 3081330

3086786

Unavailable

11

BAND-CARB MTG. (Incl. 12)

3082257

Unavailable

12

SCREW,(10)

3081497

$2.39

13

STUD Substituted by 3085713

3080746

Unavailable

13

STUD Substituted by 3085713

3080746

Unavailable

14

SEAL,OIL Substituted by 3082162

3080006

$38.60

15

PIN-DOWEL Substituted by 3080103

3086741

Unavailable

15

PIN-DOWEL Substituted by 3080103

3086741

Unavailable

16

ASM-CRANKCASE (Incl. 13-15,18-22,24-26)

3087048

$559.99

16

ASM-CRANKCASE (Incl. 13-15,18-22,24-26)

3087048

$559.99

17

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

18

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

18

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

19

PLUG Substituted by 3083767

3086744

$4.79

19

PLUG Substituted by 3083767

3086744

$4.79

20

BEARING,BALL

3085890

Unavailable

21

Bearing, Ball

3084580

$31.99

22

BOLT & WASHER Substituted by 3080739

3086784

Unavailable

23

SCREW&WASHER ASM.

3081635

Unavailable

24

SEAL, OIL, PTO (PTO)

3084581

$28.32

25

BOLT&WASHER ASSY.

3083615

Unavailable

26

BOLT & WASHER Substituted by 3082096

3086783

Unavailable

27

GASKET, CYLINDER Substituted by 3083733

3084016

$40.46

28

NUT-FLANGE(10)

3082911

$1.99

29

CYLINDER (Incl. 30,31)

3087049

Unavailable

30

STUD,(10)

3085326

Unavailable

31

Stud

3080283

$12.94

32

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

33

WASHER LOCK ,(10)

3080530

$3.19

34

NUT Substituted by 3080285

3086787

Unavailable
