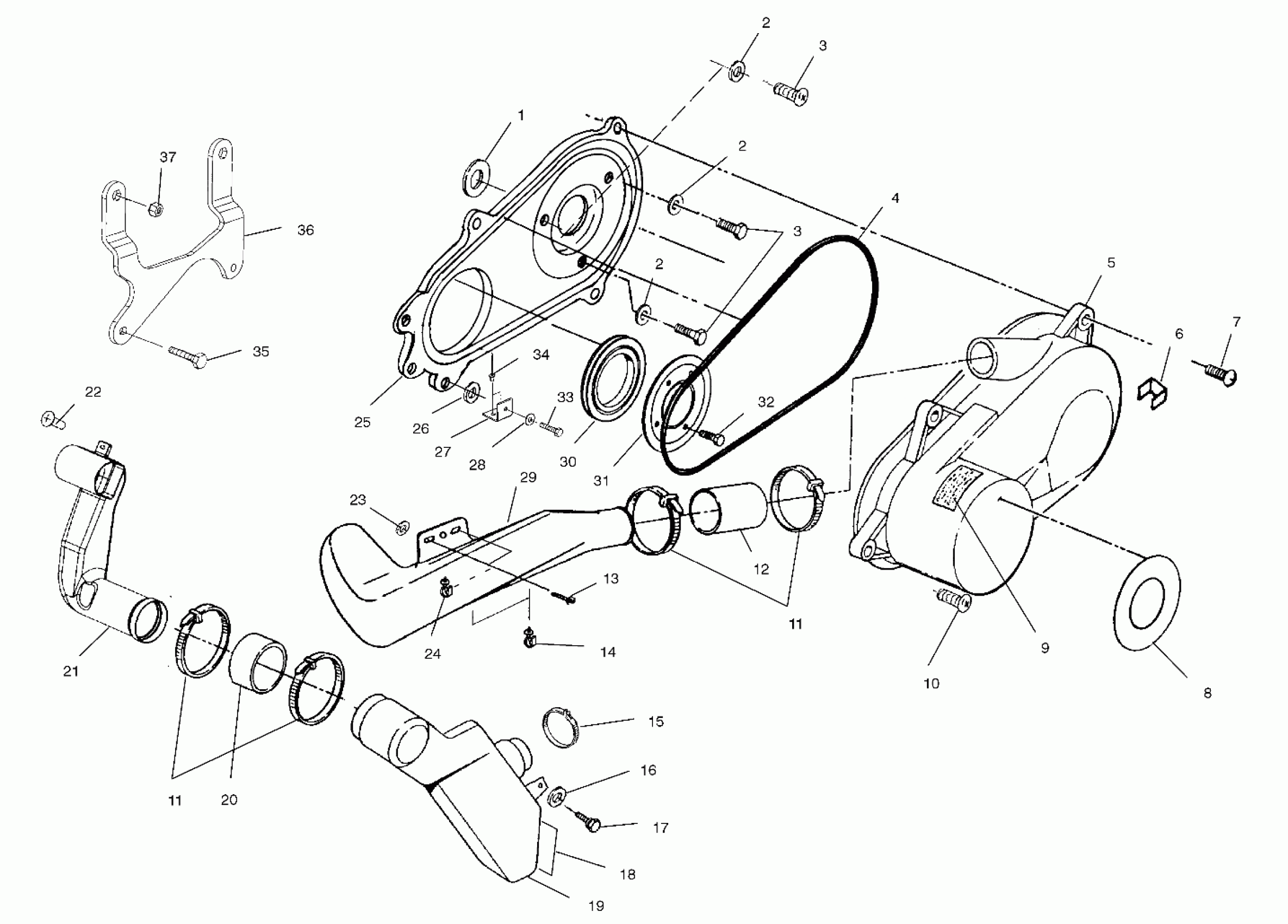

Polaris TRAIL BLAZER - A01BA25CA CLUTCH COVER - A01BA25CA (4963666366C003) Diagram

#

Description
Price

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

3

BOLT(10) (If built before 4/03/00)

7512278

Unavailable

3

BOLT/RBR WASHER 1/4-20X1,ASM.(10) (If built after 4/03/00)

7517860

Unavailable

3

BOLT(10) (If built before 4/03/00)

7512278

Unavailable

3

BOLT/RBR WASHER 1/4-20X1,ASM.(10) (If built after 4/03/00)

7517860

Unavailable

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER-CLUTCH,FRONT,ST-801HS

5433542

$179.99

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

9

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

10

SCREW(10)

7512094

$1.59

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

BOOT,CLUTCH INTAKE

5410421

$11.19

13

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.39

14

CLIP,OIL LINE RET.(10)

5432302

Unavailable

15

CLAMP, NARROW BAND(10)

7080511

$4.79

16

WASHER(10)

7555783

$3.99

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

FOIL-TAPE,AIR BOX

5811373

$2.47

19

DUCT,CLUTCH INLET,TRAIL BOSS

5433258

$49.59

20

BOOT,CLUTCH AIR INLET,UPPER

5411822

Unavailable

21

DUCT,CLUTCH INLET

5433450

Unavailable

22

SCREW(10)

7512084

$1.49

23

Spacer

7556091

$3.99

24

CLIP,ROUTING,.472 B.D.,HINGED

7670116

$5.59

25

KIT,CVR,IN.CLUTCH (Incl. 4,7,10,30,33)

2200792

$294.99

26

WASHER,NYLON

7555932

$2.39

27

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

28

WASHER(10)

7555935

$2.39

29

DUCT,OUTLET,CLUTCH,13.57

5433323

Unavailable

30

SEAL,COVER CASE

5410749

Unavailable

31

BRKT,RETAINER SEAL

5222877-067

Unavailable

32

Screw and Washer (See Crankcase and Cylinder Pg. C8, Ref. 23)

-------

Unavailable

33

Screw

7512098

$1.59

34

RIVET,INTERLOCK,B(50)

7661638

$1.49

35

BOLT(10)

7512232

$1.49

36

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

37

NUT,HEXHD,M8

7547076

$2.60
