Description

Price

1

TOP,MIX CHAMBER

3130060

Unavailable

2

SPRING,THROTTLE

3130354

$28.32

3

PLATE,THROTTLE

3130002

$20.22

4

JET NEEDLE Substituted by 3130155 (5DP7-2)

3130356

$24.27

5

Washer

3130355

$7.19

6

VALVE,THROTTLE,(2.0) (2.0)

3130420

Unavailable

7

Cap, Plunger

3130359

$14.56

8

SPRING,PLUNGER

3130006

$8.89

9

PLUNGER ASM, STARTER

3130328

$32.37

10

SPRING,AIR ADJUST

3130012

$8.89

11

SCREW,AIR

3130011

$19.99

12

SPRING,THROTTLE ADJ.

3130010

$8.89

13

Screw, Throttle Stop

3130324

$19.84

14

JET,PILOT,#40(10) (#40)

3130067

$10.99

15

WASHER (10)

3130014

$1.59

16

SCREW & WASHER(10)

3130025

$3.19

17

BOLT,BANJO

3130321

$23.99

18

O RING

3130239

Unavailable

19

JET-MAIN(#110) Substituted by 3130105 (#110)

3131300

Unavailable

20

BOWL,FLOAT,(250)

3130441

$99.99

21

FLOAT ASM

3130021

$40.46

22

CAP,(10)

3130237

$4.03

23

PACKING,FLOAT CHAMBER

3130020

$16.17

24

VALVE, NEEDLE (2.5)

3130360

$43.99

25

ARM,FLOAT

3130018

$24.27

26

PIN, FLOAT

3130361

$8.89

27

PACKING(10)

3130017

$4.03

28

ASM-CARBURETOR (Incl. 1-30)

3131301

Unavailable

29

JET,NEEDLE(0-4),169 (0-4)

3130409

$39.99

30

E RING(10) Substituted by 3130508

3130003

Unavailable

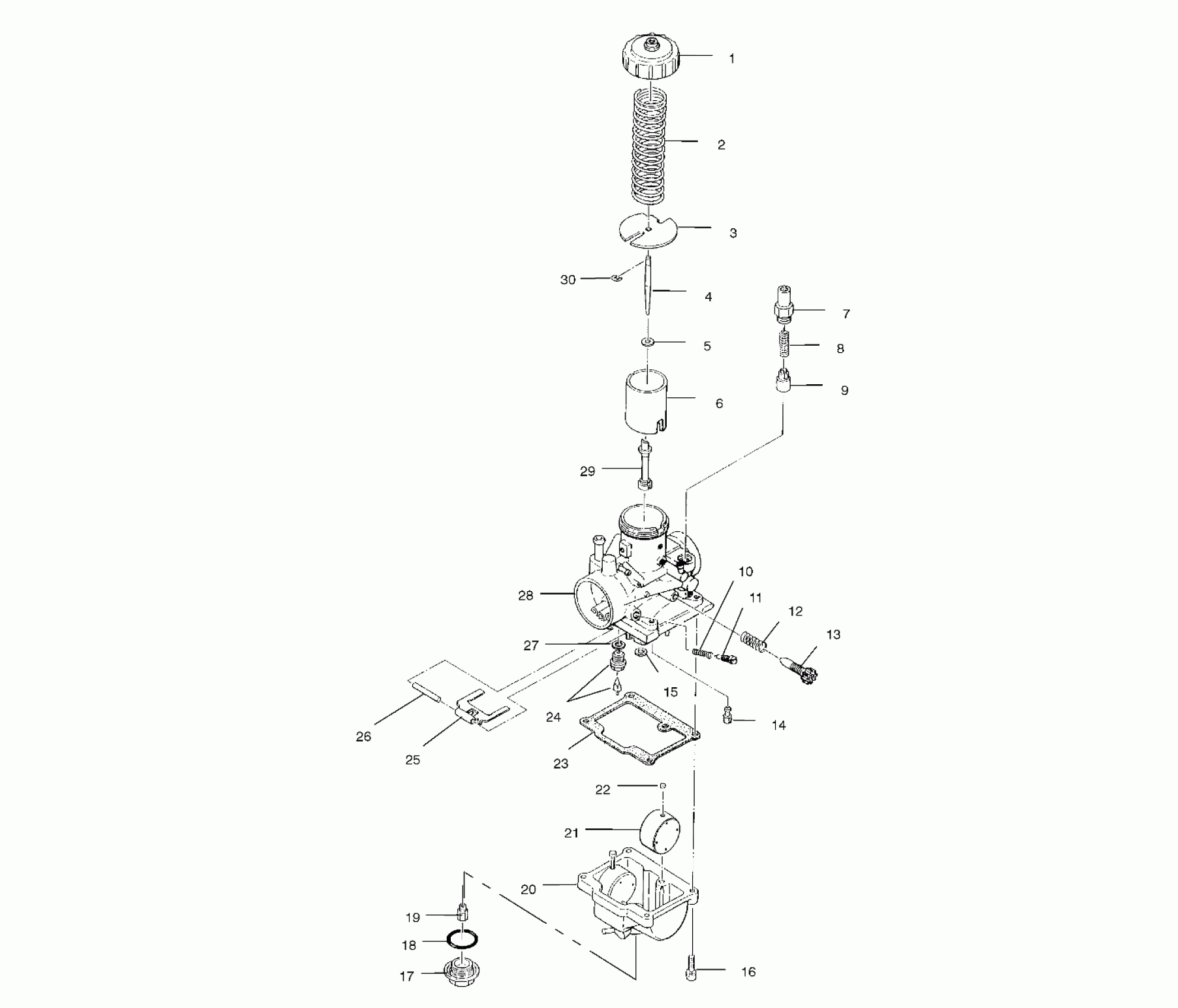

Polaris TRAIL BLAZER - A01BA25CA CARBURETOR - A01BA25CA (4963666366C014) Diagram

TOP,MIX CHAMBER

SPRING,THROTTLE

PLATE,THROTTLE

JET NEEDLE Substituted by 3130155 (5DP7-2)

Washer

VALVE,THROTTLE,(2.0) (2.0)

Cap, Plunger

SPRING,PLUNGER

PLUNGER ASM, STARTER

SPRING,AIR ADJUST

SCREW,AIR

SPRING,THROTTLE ADJ.

Screw, Throttle Stop

JET,PILOT,#40(10) (#40)

WASHER (10)

SCREW & WASHER(10)

BOLT,BANJO

O RING

JET-MAIN(#110) Substituted by 3130105 (#110)

BOWL,FLOAT,(250)

FLOAT ASM

CAP,(10)

PACKING,FLOAT CHAMBER

VALVE, NEEDLE (2.5)

ARM,FLOAT

PIN, FLOAT

PACKING(10)

ASM-CARBURETOR (Incl. 1-30)

JET,NEEDLE(0-4),169 (0-4)

E RING(10) Substituted by 3130508
