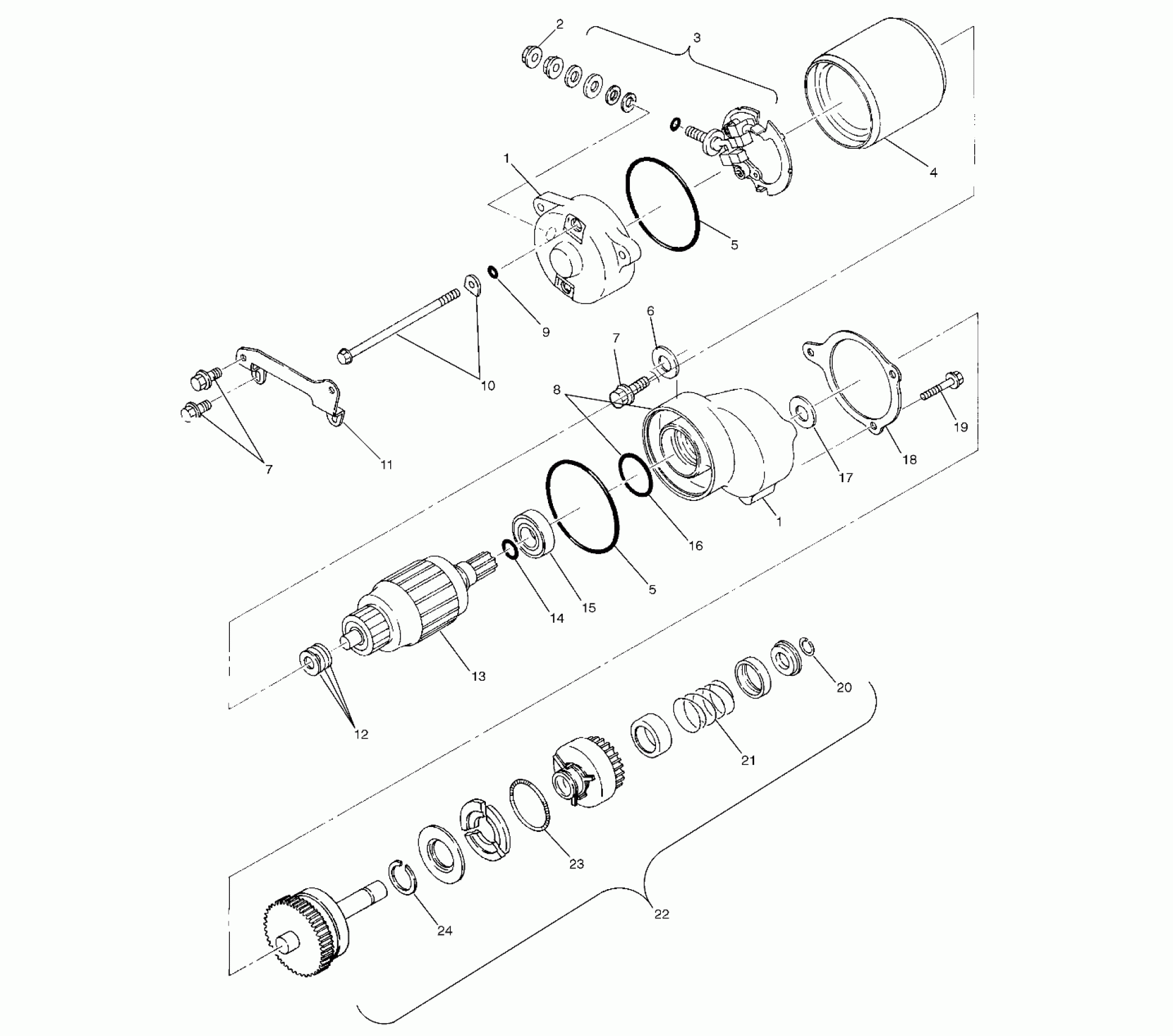

Polaris TRAIL BLAZER 400 - A03BA38CA STARTING MOTOR - A03BA38CA (4982568256D03) Diagram

#

Description
Price

1

Cover, Rear

3085032

$81.75

1

Cover, Rear

3085032

$81.75

2

NUT, FLANGE

3083649

$3.97

3

Brush

3084406

$125.46

4

Asm., Starter [Incl. 1-5,8-10,12-16]

3085393

Unavailable

4

Asm., Starting Motor [Incl. 1-5,8-10,12-17,20-24]

3087043

Unavailable

5

RING, RUBBER

3084405

Unavailable

5

RING, RUBBER

3084405

Unavailable

6

Gasket

3082758

$1.19

7

Bolt, Flange

3086782

$3.97

7

Bolt, Flange

3086782

$3.97

8

Cover, Front [Incl. 16]

3085305

$123.02

9

O-RING

3084408

Unavailable

10

Bolt, Through

3084407

Unavailable

11

Bracket

3086780

Unavailable

12

Washer Set

3083754

$2.38

13

Asm., Armature [Incl. 14,15]

3084404

$142.99

14

O-Ring

3083934

Unavailable

15

Bearing

3083777

$31.75

16

O-Ring

3083741

$9.37

17

WASHER

3240134

$3.17

18

Gasket, Starter

3085283

Unavailable

19

Bolt, Flange

3086781

$4.76

20

CLIP

3084409

$7.14

21

SPRING, RETURN

3084410

Unavailable

22

Asm., Gear Shaft [Incl. 17,20-24]

3087030

$271.10

23

SPRING, WEIGHT

3084411

$15.56

24

CLIP

3084412

$9.52
