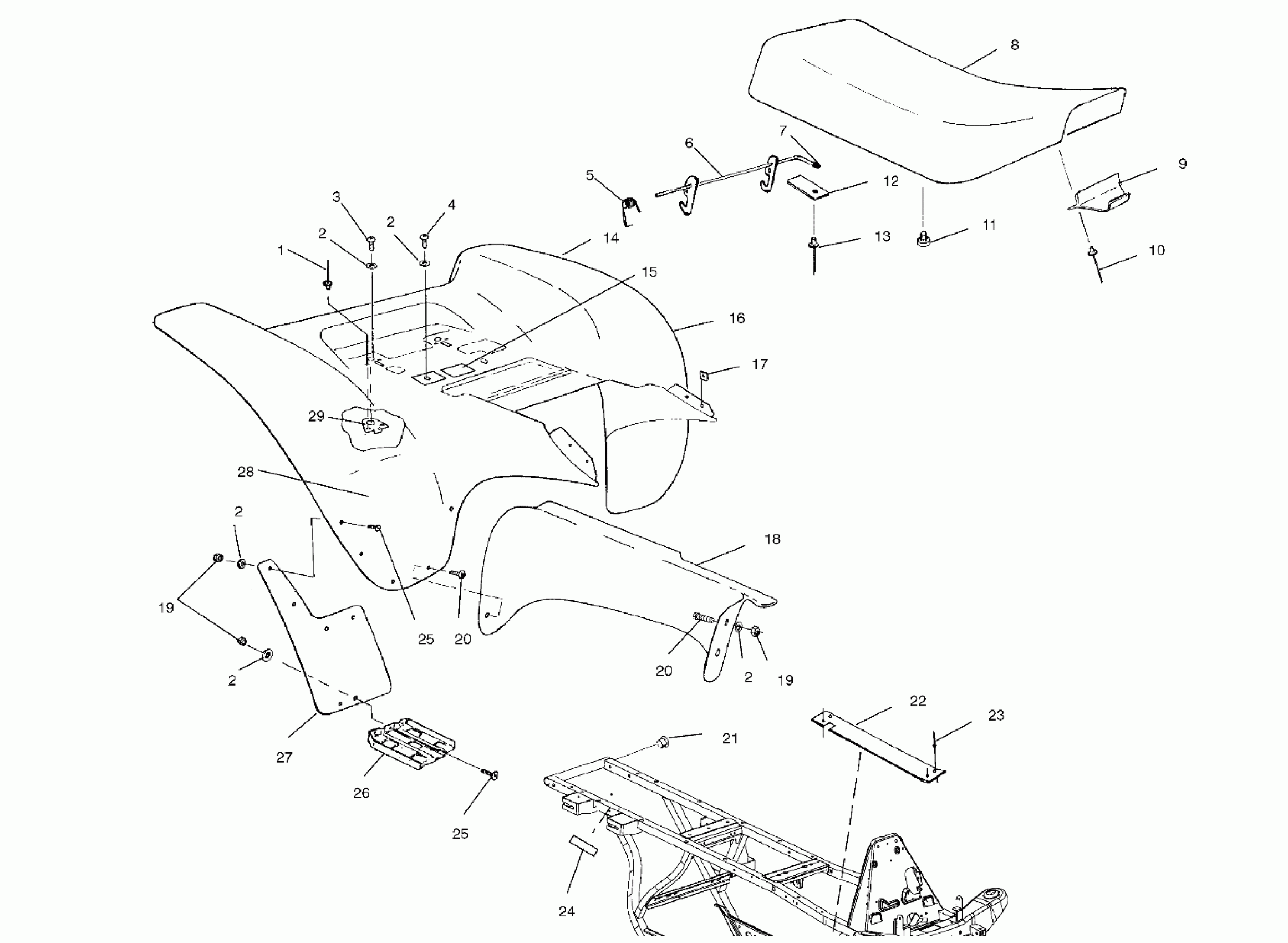

Polaris TRAIL BLAZER 400 - A03BA38CA REAR CAB - A03BA38CA (4982568256A04) Diagram

#

Description
Price

1

RIVET

7621472

$1.49

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

SCREW

7512232

$1.19

4

SCREW

7512242

$2.38

5

Spring, Latch, Light

7041607

Unavailable

6

Latch, Seat

1040412

Unavailable

7

Cap, Seat Latch

5411392

Unavailable

8

Covering, Seat, Black

2681769-070

Unavailable

8

Seat, Black

2682453-070

Unavailable

9

Tongue, Seat

5431986

$10.51

10

RIVET

7621479

$1.98

11

BUMPER-RUBBER

5412067

$3.97

12

BRACKET, LEVER RETAINER

5211033

$34.99

13

RIVET

7621403

$1.19

14

Foil, Rear Cab, Small

5810991

Unavailable

15

Decal, Carb/Filter Information

7079901

Unavailable

16

Cab, Rear, Yellow

5434014-053

Unavailable

17

Nut, Speed, U-Type

7670057

$1.19

18

Shield, Muffler

2632274

Unavailable

18

Foil, Foam

5811113

Unavailable

19

Nut, Nylok

7542122

$1.19

19

Nut, Nylok

7542122

$1.19

20

Screw

7517264

$3.97

20

Screw

7517264

$3.97

21

Plug, End Cap, Ribbed

5432831

$5.65

22

Guard, Clutch

5241403-067

$5.71

23

RIVET-3/16-.090-.290

7661637

$1.19

24

DECAL-REFLECT.2.88,RED

7079925

$8.08

25

Bolt

7512282

Unavailable

25

Bolt

7512282

Unavailable

26

FOOTPAD [SEE FRONT CAB PG. A3, REF. 23]

----

Unavailable

27

Mudflap, Rear, RH

5850148

Unavailable

27

Mudflap, Rear, LH

5812134

Unavailable

28

Foil, Rear Cab

5810957

Unavailable

29

Bracket, Rear Seat Holddown

5220880

Unavailable
