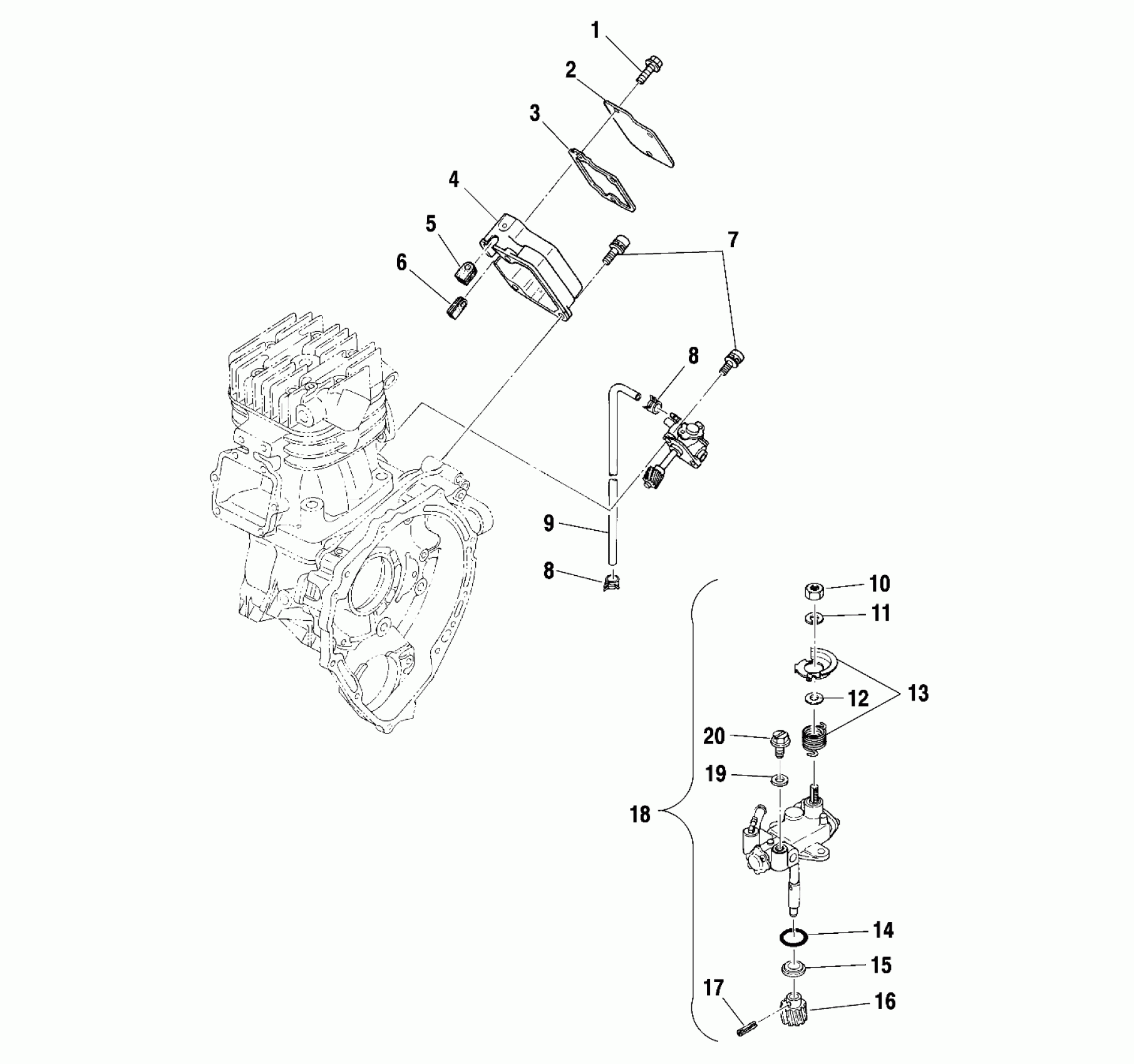

Polaris TRAIL BLAZER 400 - A03BA38CA OIL PUMP - A03BA38CA (4982568256C13) Diagram

#

Description
Price

1

Bolt and Washer

3084757

Unavailable

2

Cover, Case, Oil Pump

3085281

Unavailable

3

Gasket, Case, Oil Pump

3085280

Unavailable

4

Case, Oil Pump

3085520

$23.65

5

Grommet

3086777

Unavailable

6

Grommet

3086779

Unavailable

7

Screw and Washer

3086778

$2.38

8

Clamp, Hose

3083141

$1.19

8

Clamp, Hose

3083141

$1.19

9

Pipe, Vinyl

3086776

Unavailable

10

Nut

3083120

$2.19

11

Washer, Spring

3083121

$395.22

12

Collar

3083445

$1.64

13

Spring and Lever

3085571

Unavailable

14

O-Ring

3083127

Unavailable

15

Spacer

3084195

Unavailable

16

Wheel

3084196

Unavailable

17

Pin, Spring

3084197

Unavailable

18

Asm., Oil Pump [Incl. 10-20]

3085285

Unavailable

19

Washer

3084194

$6.19

20

Screw, Air Vent

3083125

Unavailable
