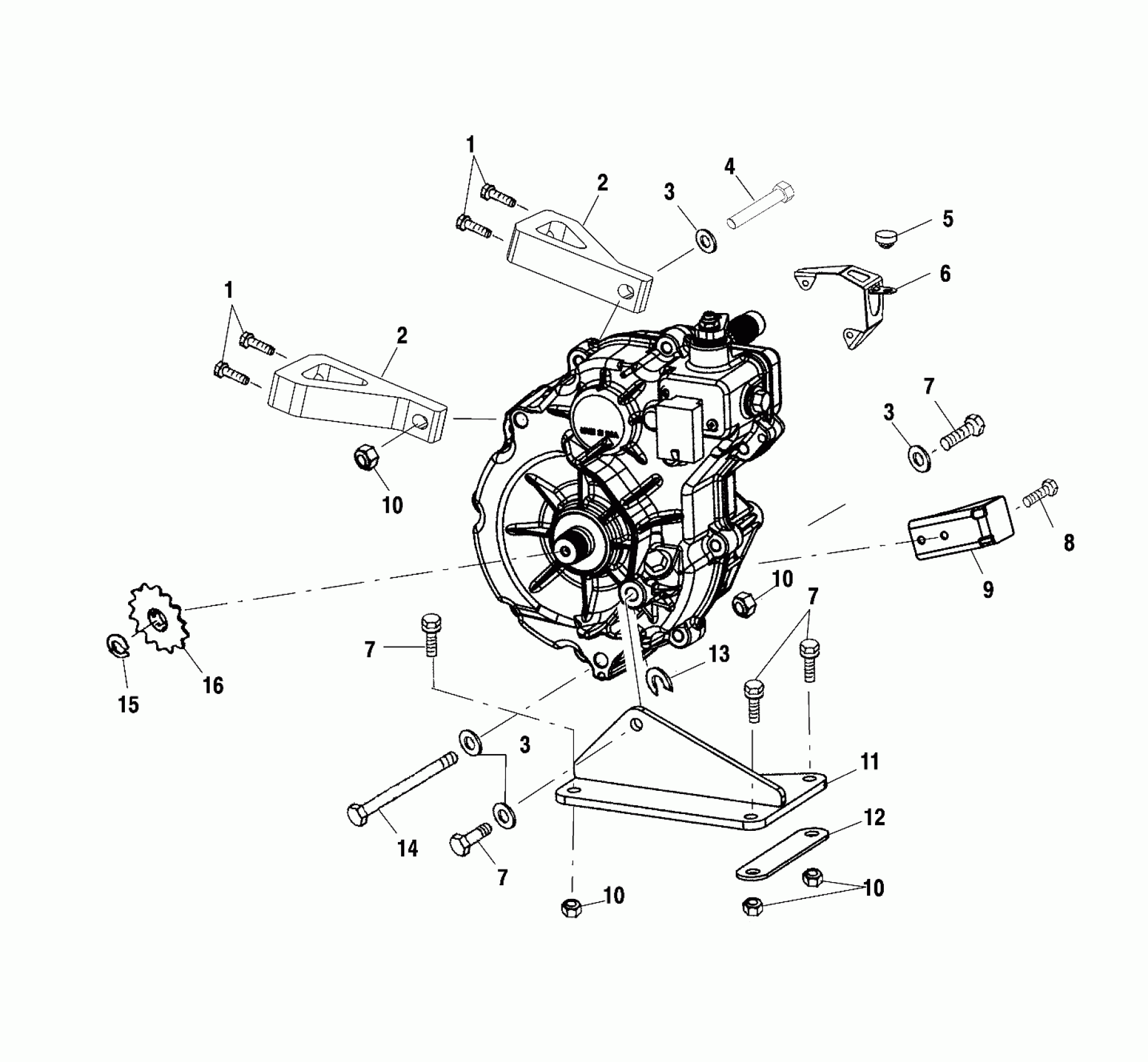

Polaris TRAIL BLAZER 400 - A03BA38CA GEARCASE MOUNTING - A03BA38CA (4982568256C09) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

1

SCREW

7517632

$5.56

2

Mount, Transmission, Rear

5132046

$35.71

2

Mount, Transmission, Rear

5132046

$35.71

3

Washer

7555806

$0.79

3

Washer

7555806

$0.79

3

Washer

7555806

$0.79

4

Screw

7517642

$7.94

5

Bumper

5410414

$3.17

6

Bracket, Carb Dampener

5243943-067

Unavailable

7

Screw

7512492

$1.19

7

Screw

7512492

$1.19

7

Screw

7512492

$1.19

7

Screw

7512492

$1.19

8

Screw

7512325

$2.38

9

Bracket, Stop, Torque

1012785-067

$12.30

10

Nut, Flange

7547089

$4.76

10

Nut, Flange

7547089

$4.76

10

Nut, Flange

7547089

$4.76

10

Nut, Flange

7547089

$4.76

11

Mount, Transmission

1012886-067

$31.75

12

Spacer

5243296-067

$4.06

13

Shim [.020]

5210764

Unavailable

13

Shim [.010]

5211065

Unavailable

13

Shim [.030]

5211517

Unavailable

14

SCREW

7517646

$7.14

15

RING, RETAINING

7710434

$3.97

16

Sprocket, 13T

3221041

$44.51
