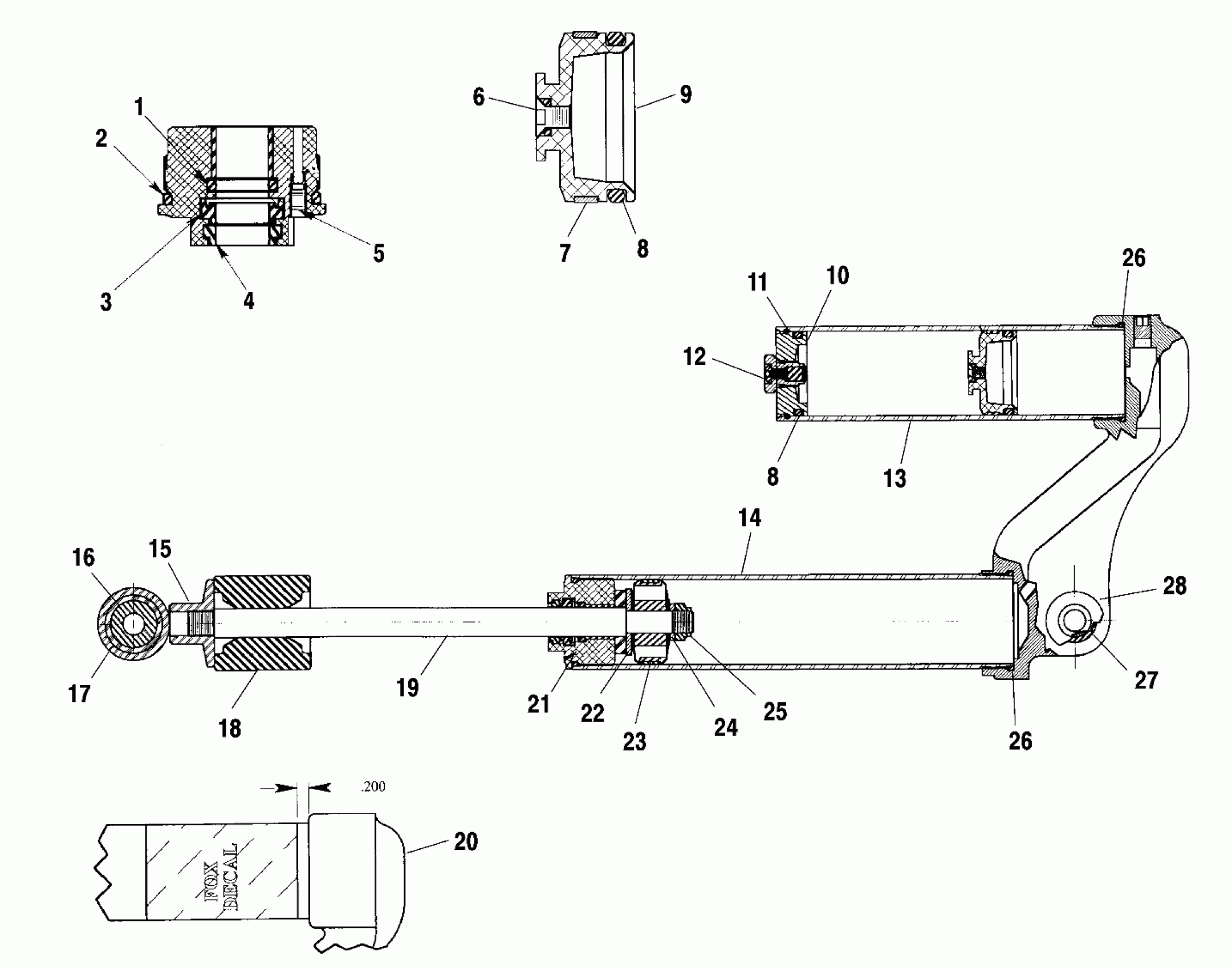

Polaris TRAIL BLAZER 400 - A03BA38CA FOX SHOCK, GAS, RESERVOIR - A03BA38CA (4982568256B04) Diagram

#

Description
Price

-

Shock, Gas

7041867

Unavailable

1

O-Ring

1500021

$10.99

2

O-Ring

1500020

$10.63

3

Wiper, Inner

1500025

$28.32

4

Wiper, Clear, Outer

1500024

$15.48

5

Asm., Screw

1500287

Unavailable

6

O-Ring

1500023

$2.84

6

Screw

1500018

$5.56

7

Bearing, Ext., IFP

1500006

$19.84

8

O-Ring, Fox End Cap

1500003

$8.89

8

O-Ring, Fox End Cap

1500003

$8.89

9

Piston, IFP

1500011

$59.52

10

Asm., Cap, Reservoir, ATV Fox Shock [Incl. 8,11,12]

1500099

$49.21

11

Retaining Ring, ATV Fox Shock

1500097

$4.76

12

Asm., Air Valve

1500014

Unavailable

12

Screw

1500019

$6.35

12

O-Ring

1500022

Unavailable

13

Asm., Reservoir

1500286

$126.98

14

Body

1500283

$61.90

15

Eyelet

1500013

$52.24

16

Bushing

1500102

Unavailable

17

BUSHING, EYELET

1500103

$8.89

18

Bumper, Compression

5410987

Unavailable

19

Shaft

1500284

Unavailable

20

Asm., Cap-Body, Fox ATV

1500282

$180.16

21

Asm., Bearing

1500285

Unavailable

22

Plate, Top-Out

1500017

Unavailable

23

Bearing, Ext., Piston

1500002

$31.75

24

Bushing, Back-up

1500015

$6.76

25

Nut, Lock

1500016

$12.70

26

O-Ring, Fox

1500004

$1.83

26

O-Ring, Fox

1500004

$1.83

27

Sleeve

5020657

$15.87

28

Bushing, Eyelet

1500104

Unavailable
