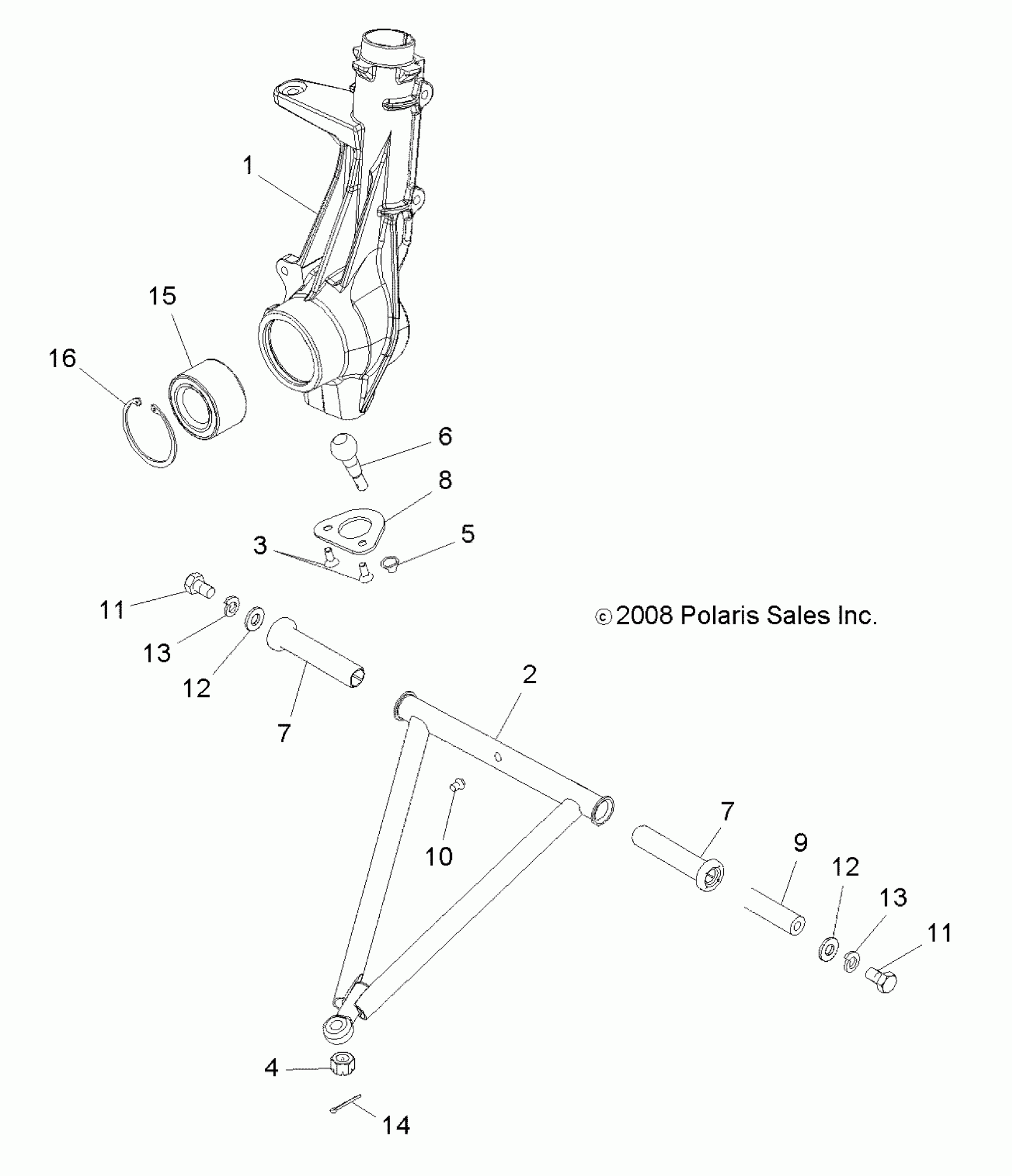

Polaris TRAIL BLAZER 330 - A13NA32AA SUSPENSION, A-ARM and STRUT MOUNTING - A13NA32AA (49ATVSUSPFRT11TBLZR) Diagram

Asm., Hubstrut, LH [Incl. 3,6,8,15,16]

1822825

$303.99

Asm., Hubstrut, RH [Incl. 3,6,8,15,16]

1822826

$303.99

Kit, A-Frame, LH, Black [Incl. 7,9-14]

2202284-067

$140.79

Kit, A-Frame, RH, Black [Incl. 7,9-14]

2202285-067

$140.79

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BRACKET-BALL JOINT

5211121

$31.99

Shaft, A-Arm

5133806

$30.79

Fitting, Lubrication

7080433

$1.49

Screw

7512492

$1.49

Screw

7512492

$1.49

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

Washer, Lock

7552603

$1.49

Washer, Lock

7552603

$1.49

Pin, Cotter

7661203

$1.49

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

BEARING-WHEEL,35X64X37MM HD [OPTIONAL]

3515088

$63.99

RING, RETAINING

7710507

$2.39
