ENGINE, CYLINDER and HEAD - A13NA32AA (49ATVCYLINDER12TB)

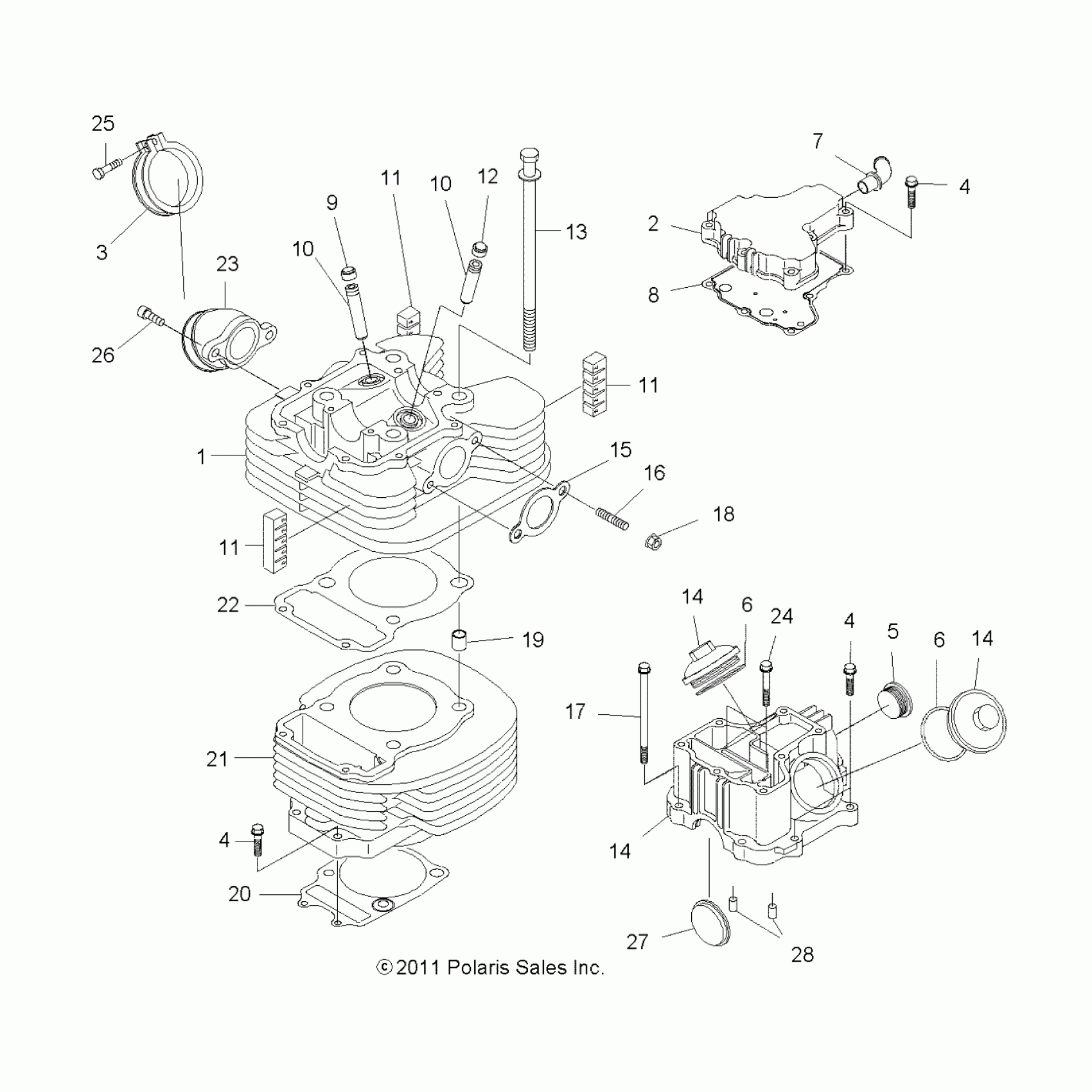

Polaris TRAIL BLAZER 330 - A13NA32AA ENGINE, CYLINDER and HEAD - A13NA32AA (49ATVCYLINDER12TB) Diagram
#
Description
Price
1
Asm., Cylinder Head [Incl. 9,10,12,14,16,28]
3090321
Unavailable
2
Asm., Cover, Breather [Incl. 7]
3089271
Unavailable
3
Asm., Adapter Band [Incl. 25]
3090180
$19.84
4
BOLT, FLANGE
3084874
Unavailable
4
BOLT, FLANGE
3084874
Unavailable
4
BOLT, FLANGE
3084874
Unavailable
5
Asm., Plug
3089272
Unavailable
6
O-Ring
3086414
$29.99
6
O-Ring
3086414
$29.99
7
Asm., Pipe
3085850
$51.99
8
Gasket, Breather Cover
3087034
$27.99
9
Seal, Intake Valve
3084858
$13.59
10
GUIDE, VALVE
3084994
$39.99
10
GUIDE, VALVE
3084994
$39.99
11
Fin, Damper A
3084798
$31.99
11
Fin, Damper A
3084798
$31.99
11
Fin, Damper A
3084798
$31.99
12
SEAL, EXHAUST VALVE
3084859
$23.99
13
Asm., Bolt and Washer
3086418
$10.39
14
Cover, Valve
3087259
Unavailable
14
Cover, Valve
3087259
Unavailable
14
Cover, Valve
3087259
Unavailable
15
Gasket, Exhaust
3086421
Unavailable
16
STUD
3090095
Unavailable
17
Bolt, Flange
3087160
Unavailable
18
NUT, FLANGE
3082910
$2.39
19
KNOCK, PIPE
3087266
Unavailable
20
Gasket, Cylinder
3086407
$31.99
21
Unit, Cylinder
3087236
$367.99
22
Gasket, Head
3087238
$39.99
23
Asm., Adapter
3087050
$71.99
24
BOLT, FLANGE
3087159
$3.99
25
ASM., SCREW AND WASHER
3081497
$2.39
26
Bolt, Socket, Head
3081330
$3.99
27
Gasket, Cam
3086416
Unavailable
28
Knock, Pipe
3087275
Unavailable
